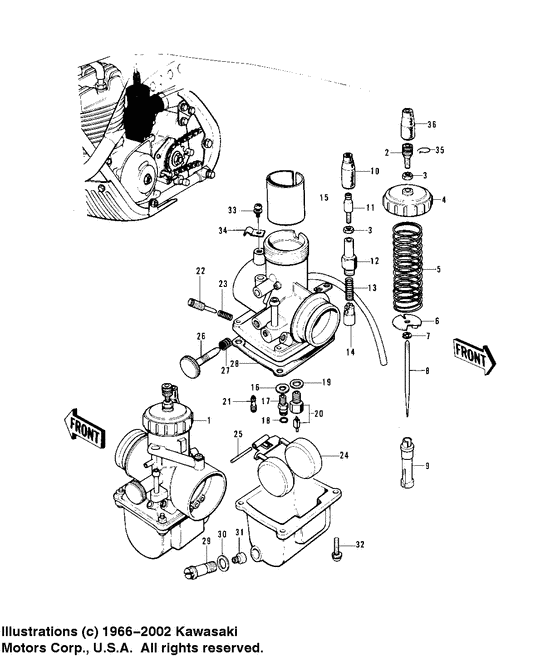

Carburetor ('73-'75 f11/f11-a/f11-b) Diagram Kawasaki Model "F" F11
- Year
- 1974
- Model code
- F11-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16001-171 CARBURETOR ASSYF11, f11a |
16001-171 |
US $418.30 |
||
|
2
|
2
16002-010 CABLE ADJUSTER |
16002-010 |
US $12.22 |
||
|
3
|
3
16003-006 NUT-CABLE ADJUST LOCKNut-cable adjust loc; |
16003-006 |
from US $4.59 |
||
|
4
|
4
16004-018
CAP-MIXING CHAMBER
F11, f11a |
16004-018 |
— | ||
|
5
|
5
16006-006 SPRING THROTTLE VALVEF11, f11a |
16006-006 |
US $2.93 |
||
|
6
|
6
16007-017
SPRING SEAT-THRTL VLV
|
16007-017 |
— | ||
|
7
|
7
16008-010 CIRCLIPCirclip; |
16008-010 |
from US $6.65 |
||
|
8
|
8
16009-049
JET NEEDLE 5DJ19
|
16009-049 |
— | ||
|
9
|
9
16017-061 NEEDLE JET,O-8Needle jet,o-8; F11, f11a |
16017-061 |
US $21.92 |
||
|
10
|
10
16036-007 CAP,CARBURETORCap,carburetor; |
16036-007 |
from US $11.25 |
||
|
11
|
11
16002-002
CABLE ADJUSTER
Cable adjuster; |
16002-002 |
— | ||
| replacement | |||||
|
11
|
11
16002-017 ADJUSTER,CABLECable adjuster; |
16002-017 |
from US $9.50 |
||
|
12
|
12
16012-008
CAP STARTER PLUNGER
|
16012-008 |
— | ||
|
13
|
13
16013-003 SPRING-PLUNGERSpring-plunger; |
16013-003 |
from US $4.18 |
||
|
14
|
14
16016-002 PLUNGER-ENRICHNERPlunger-enrichner; |
16016-002 |
from US $21.09 |
||
|
15
|
15
16025-050 VALVE-THROTTLE,CA2.5Valve-throttle,ca2.5; F11, f11a |
16025-050 |
US $47.11 |
||
|
16
|
16
16034-001 WASHER MAIN JETWasher main jet; |
16034-001 |
from US $3.01 |
||
|
17
|
17
16065-014 HOLDER-NEEDLE JET |
16065-014 |
US $22.55 |
||
|
18
|
18
92055-044 RING-O"0" ring; |
92055-044 |
from US $6.81 |
||
|
19
|
19
16029-004 WASHER FLOAT VLV SEATWasher float vlv sea; |
16029-004 |
from US $3.17 |
||
|
20
|
20
16030-005 FLOAT VALVE ASSYFloat valve assy; |
16030-005 |
from US $43.83 |
||
|
21
|
21
92064-024 JET-PILOT NO 40Jet-pilot no 40; F11, f11a |
92064-024 |
from US $13.62 |
||
|
22
|
22
16014-006
SCREW
|
16014-006 |
— | ||
|
23
|
23
16022-007 SPRING,PILOT AIR SCRESpring-thr stop scre; |
16022-007 |
from US $5.44 |
||
|
24
|
24
16031-023
FLOAT
|
16031-023 |
— | ||
|
25
|
25
16032-003
PIN,FLOAT
Float pin; |
16032-003 |
— | ||
| replacement | |||||
|
25
|
25
16032-008 PIN,FLOATFloat pin; |
16032-008 |
from US $4.20 |
||
|
26
|
26
16021-017 SCREW-THROTTLE STOP |
16021-017 |
US $20.43 |
||
|
27
|
27
16022-005 SPRING THR STOP SCREWSpring thr stop scre; |
16022-005 |
from US $6.81 |
||
|
28
|
28
16019-008 GASKET FLOAT CHAMBER |
16019-008 |
from US $19.90 |
||
|
29
|
29
92001-118 BOLT-BANJO |
92001-118 |
US $7.58 |
||
|
30
|
30
16034-006 WASHER-BANJO BOLT |
16034-006 |
US $0.83 |
||
|
31
|
31
92063-075 JET-MAIN,#A112.5Jet-main no 112.5r; Std f11;opt f11a/b, opt f11; std f11a/b, f11, f11a/b, f11a/b, f11a/b |
92063-075 |
US $12.83 |
||
| replacement | |||||
|
31
|
31
92063-1110 JET-MAIN,#A112.5Jet-main no 112.5r; Std f11;opt f11a/b, opt f11; std f11a/b, f11, f11a/b, f11a/b, f11a/b |
92063-1110 |
from US $9.01 |
||
|
32
|
32
16033-009
SCREW-PAN-WS-CROS
|
16033-009 |
— | ||
| replacement | |||||
|
32
|
32
223AA0416 SCREW-PAN-WS-CROS |
223AA0416 |
from US $0.95 |
||
|
33
|
33
16033-014 SCREW-CLAMP |
16033-014 |
US $4.03 |
||
|
34
|
34
16053-004 CLAMP |
16053-004 |
US $0.99 |
||
|
35
|
35
92036-018 CIRCLIPCirclip; |
92036-018 |
from US $2.53 |
||
|
36
|
36
16036-009 CAP-CABLE ADJUSTER |
16036-009 |
US $1.44 |
||
