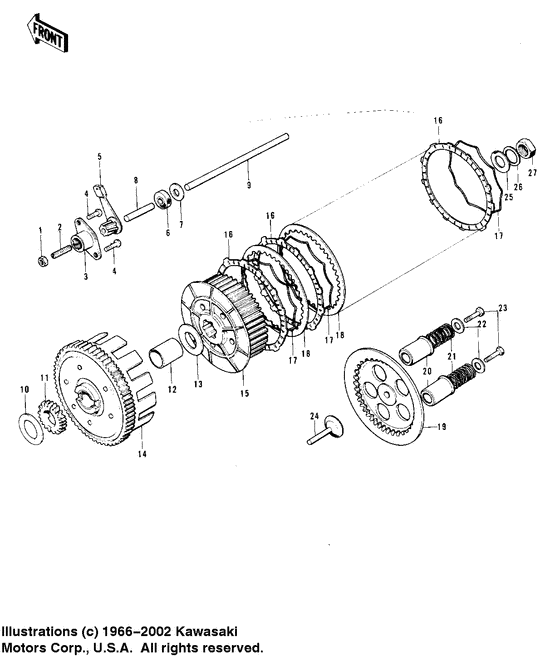

Clutch ('73-'75 f11/f11-a/f11-b) Diagram Kawasaki Model "F" F11
- Year
- 1974
- Model code
- F11-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
1
|
1
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
2
|
2
92014-011 SCREW-CLUTCH ADJUST |
92014-011 |
US $8.50 |
||
|
3
|
3
13118-005
RELEASE OUTER-CLUTCH
|
13118-005 |
— | ||
|
4
|
4
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
4
|
4
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
5
|
5
13102-010
RELEASE INNER-CLUTCH
|
13102-010 |
— | ||
|
6
|
6
92050-034
OIL SEAL-CLTH PSH ROD
Oil seal-clth psh ro; |
92050-034 |
— | ||
|
7
|
7
92026-073 WASHER-PLAIN,18MMWasher-plain,18mm; |
92026-073 |
US $2.41 |
||
|
8
|
8
13116-013
PUSH ROD-CLUTCH,SHORT
Push rod-clutch,shor; |
13116-013 |
— | ||
|
9
|
9
13116-017 ROD-CLUTCH PUSH,LONGRod-clutch push,long; |
13116-017 |
US $14.04 |
||
|
10
|
10
92022-168 WASHER-CLUTCH THRUSTWasher-clutch thrust; 1.4t |
92022-168 |
from US $6.02 |
||
|
11
|
11
13075-008 PINION-KICKSTARTER |
13075-008 |
US $30.15 |
||
|
12
|
12
92028-105 BUSHING |
92028-105 |
US $21.28 |
||
|
13
|
13
92022-189 WASHER-PLAIN,20MMWasher-plain,20mm; |
92022-189 |
US $6.77 |
||
|
14
|
14
13095-031 HOUSING-CLUTCH |
13095-031 |
US $180.11 |
||
|
15
|
15
13087-029 Hub-clutch |
13087-029 |
US $65.09 |
||
|
16
|
16
13088-029
PLATE-CLUTCH FRICTION
|
13088-029 |
— | ||
|
17
|
17
13229-003
RING-CLUTCH STEEL
|
13229-003 |
— | ||
|
18
|
18
13089-013 PLATE CLUTCH STEELPlate clutch steel; |
13089-013 |
from US $11.09 |
||
|
19
|
19
13187-005 PLATE-CLUTCH SPRING |
13187-005 |
US $41.72 |
||
|
20
|
20
13092-005 GUIDE CLUTCH SPRING |
13092-005 |
US $10.39 |
||
|
21
|
21
92081-083 SPRING-CLUTCHSpring-clutch; |
92081-083 |
from US $5.07 |
||
|
22
|
22
13091-009
HOLDER CL SPG6.5X20X2
Holder cl spg6.5x20x; |
13091-009 |
— | ||
|
23
|
23
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
23
|
23
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
24
|
24
13116-020 PUSHER-CLTCH SPRG PLT |
13116-020 |
US $10.80 |
||
|
25
|
25
92022-229 WASHER-PLAIN |
92022-229 |
US $1.08 |
||
|
26
|
26
463G1400 WASHER-LOCK,14MMWasher-lock,14mm; |
463G1400 |
US $0.61 |
||
|
27
|
27
314B1400 NUT,14MMNut,14mm; |
314B1400 |
US $0.81 |
||
| replacement | |||||
|
27
|
27
314AA1400 NUT,14MMNut,14mm; |
314AA1400 |
from US $0.76 |
||
|
11
|
11
13081-060 CLUTCH-ASSYF11a/b |
13081-060 |
US $347.83 |
||
|
12
|
12
13081-060 CLUTCH-ASSYF11a/b |
13081-060 |
US $347.83 |
||
|
13
|
13
13081-060 CLUTCH-ASSYF11a/b |
13081-060 |
US $347.83 |
||
|
14
|
14
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
14
|
14
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
15
|
15
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
15
|
15
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
16
|
16
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
16
|
16
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
17
|
17
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
17
|
17
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
18
|
18
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
18
|
18
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
19
|
19
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
19
|
19
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
20
|
20
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
20
|
20
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
21
|
21
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
21
|
21
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
22
|
22
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
22
|
22
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
|
23
|
23
13081-041 CLUTCH ASSYF11 |
13081-041 |
US $295.96 |
||
| replacement | |||||
|
23
|
23
13081-060 CLUTCH-ASSYF11 |
13081-060 |
US $347.83 |
||
