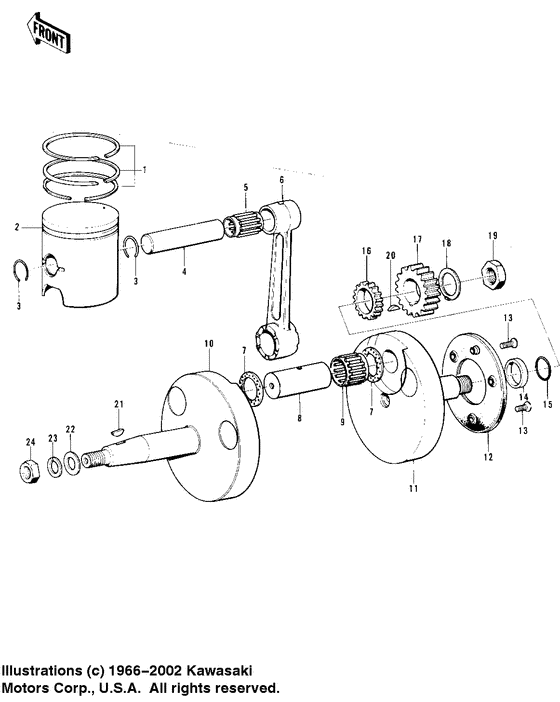

Crankshaft/piston ('73-'75 f11/f11-a/f11-b) Diagram Kawasaki Model "F" F11
- Year
- 1974
- Model code
- F11-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13008-026 RING SET,STDRing set,std; |
13008-026 |
US $102.04 |
||
|
2
|
2
13001-053 PISTON,STDPiston,std; |
13001-053 |
US $131.49 |
||
|
3
|
3
92036-015 CIRCLIP-PISTON PINCirclip-piston pin; |
92036-015 |
from US $3.33 |
||
|
4
|
4
13002017 PIN-PISTON |
13002017 |
US $21.39 |
||
|
5
|
5
13033-1010 BEARING-SMALL ENDBearing-small end; Kbk182223,8x |
13033-1010 |
from US $21.23 |
||
|
7
|
7
92026-1241
SPACER,24X42X1.6
|
92026-1241 |
— | ||
| replacement | |||||
|
7
|
7
92026-1500 SPACER,24X42X1.6 |
92026-1500 |
US $5.07 |
||
|
8
|
8
13035-031
CRANK PIN
|
13035-031 |
— | ||
|
9
|
9
13034049 BEARING,BIG END NEEDLPk243219.8xbearing,big end need; |
13034049 |
US $33.36 |
||
|
10
|
10
13037-049 CRANKSHAFT,L.HCrankshaft,l.h; |
13037-049 |
US $181.51 |
||
| replacement | |||||
|
10
|
10
13036-037 CRANK&CONROD ASSYCrankshaft,l.h; |
13036-037 |
US $477.20 |
||
|
11
|
11
13038-044 CRANKSHAFT,R.HCrankshaft,r.h; |
13038-044 |
US $172.80 |
||
| replacement | |||||
|
11
|
11
13036-037 CRANK&CONROD ASSYCrankshaft,r.h; |
13036-037 |
US $477.20 |
||
|
12
|
12
13045-009 OIL RECEIVER |
13045-009 |
US $19.19 |
||
|
13
|
13
92012-002 SCREW OVL CNTSNK 5X10Screw ovl cntsnk 5x1; |
92012-002 |
US $2.09 |
||
|
14
|
14
92027-144 COLLAR-CRANKSHAFT |
92027-144 |
US $8.01 |
||
|
15
|
15
670B2020 0 RING,20MM"0" ring,20mm; |
670B2020 |
from US $1.68 |
||
|
16
|
16
16084-013 PINION-OIL PUMP17t |
16084-013 |
US $17.55 |
||
|
17
|
17
13121-022 PINION-PRIMARY24t |
13121-022 |
US $65.09 |
||
|
18
|
18
92024-067
WASHER,LOCK,18MM
Washer,lock,18mm; |
92024-067 |
— | ||
|
19
|
19
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $4.80 |
||
|
20
|
20
510A5100 WOODRUFF KEYWoodruff key; |
510A5100 |
from US $3.40 |
||
|
21
|
21
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
22
|
22
92022-172 WASHER-PLAIN,14MMWasher-plain,14mm; |
92022-172 |
US $8.21 |
||
|
23
|
23
461F1400 WASHER SPRING 14MM |
461F1400 |
US $0.60 |
||
|
24
|
24
92015-043 NUT 14MM |
92015-043 |
US $4.88 |
||
|
6
|
6
13044-023
CONNECTING ROD SET
|
13044-023 |
— | ||
|
7
|
7
13044-023
CONNECTING ROD SET
|
13044-023 |
— | ||
|
8
|
8
13044-023
CONNECTING ROD SET
|
13044-023 |
— | ||
|
9
|
9
13044-023
CONNECTING ROD SET
|
13044-023 |
— | ||
|
6
|
6
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
7
|
7
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
8
|
8
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
9
|
9
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
10
|
10
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
11
|
11
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
12
|
12
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
|
13
|
13
13036-037 CRANK&CONROD ASSY |
13036-037 |
US $477.20 |
||
