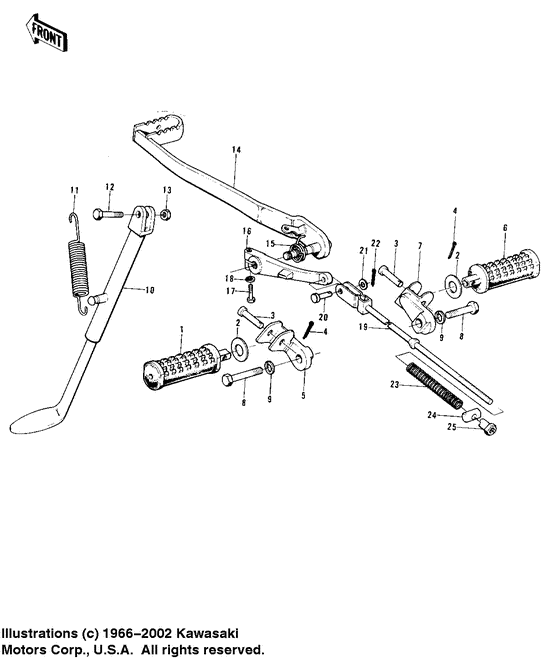

Footrests/stand/brake pedal Diagram Kawasaki Model "F" F11
- Year
- 1974
- Model code
- F11-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34027-1114
STEP-ASSY,FR,LH
Step-assy,fr,lh; F11, f11a/b |
34027-1114 |
— | ||
|
2
|
2
92022-204
WASHER PL 22.5X36X2.3
Washer pl 22.5x36x2.; |
92022-204 |
— | ||
|
3
|
3
92043-080 PIN-FOOTREST BAR FITPin-footrest bar fit; |
92043-080 |
from US $3.33 |
||
|
4
|
4
550D2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
4
|
4
550AA2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550AA2515 |
from US $0.78 |
||
|
5
|
5
34007-010 BRKT LH FOOTREST BAR |
34007-010 |
US $42.25 |
||
|
6
|
6
34027-1115 STEP-ASSY,FR,RHStep-assy,fr,rh; F11, f11a/b |
34027-1115 |
US $45.31 |
||
|
7
|
7
34007-011 BRKT RH FOOTREST BARBracket, rh. footrest bar; |
34007-011 |
US $49.21 |
||
|
8
|
8
113B1432 BOLT-HEX HEAD,14X32Bolt-hex head,14x32; |
113B1432 |
US $43.65 |
||
|
9
|
9
461F1400 WASHER SPRING 14MM |
461F1400 |
US $0.60 |
||
|
10
|
10
34024-034
STAND-SIDE
|
34024-034 |
— | ||
|
11
|
11
34025-004
SPRING-SIDE STAND
|
34025-004 |
— | ||
| replacement | |||||
|
11
|
11
34025008 SPRING,SIDE STAND |
34025008 |
from US $5.54 |
||
|
12
|
12
92001-1252
BOLT,HEX HEAD 10X35
Bolt,hex head 10x35; |
92001-1252 |
— | ||
|
13
|
13
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
13
|
13
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
14
|
14
43077-001 PEDAL-BRAKE |
43077-001 |
US $47 |
||
|
15
|
15
43005-019 SPRING-BRAKE PEDAL |
43005-019 |
US $6.46 |
||
|
16
|
16
42029-019 LEVER-BRAKE PEDAL |
42029-019 |
US $64.30 |
||
|
17
|
17
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
17
|
17
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
18
|
18
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
18
|
18
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
19
|
19
43011-011 ROD-BRAKE |
43011-011 |
US $15.53 |
||
|
20
|
20
92043-064
PIN-BRAKE ROD FITTING
Pin-brake rod fittin; |
92043-064 |
— | ||
| replacement | |||||
|
20
|
20
92043-125 PINPin-brake rod fittin; |
92043-125 |
from US $3.96 |
||
|
21
|
21
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
21
|
21
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
22
|
22
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
22
|
22
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
23
|
23
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
24
|
24
92043-065 PIN-BRAKE RODPin-brake rod; |
92043-065 |
from US $3.33 |
||
|
25
|
25
92015-042 NUT-BRAKE ROD ADJUSTNut-brake rod adjust; |
92015-042 |
from US $3.48 |
||
