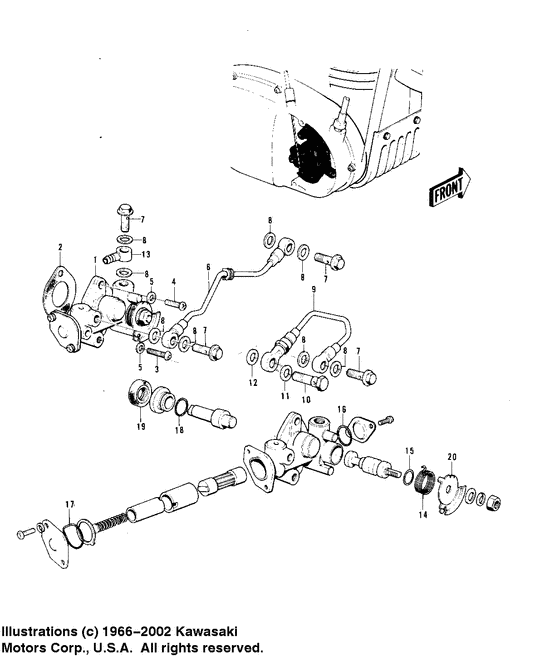

Oil pump Diagram Kawasaki Model "F" F11
- Year
- 1974
- Model code
- F11-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16082-043 OIL PUMP ASSY |
16082-043 |
US $136.69 |
||
|
2
|
2
11060-1160 GASKET,OIL PUMPGasket,oil pump; |
11060-1160 |
from US $3.31 |
||
|
3
|
3
220B0528 SCREW-PAN-CROSScrew pan cross,5x28; |
220B0528 |
US $0.63 |
||
| replacement | |||||
|
3
|
3
220AA0528 SCREW-PAN-CROSScrew pan cross,5x28; |
220AA0528 |
from US $0.62 |
||
|
4
|
4
220B0514
SCREW-PAN-CROS
|
220B0514 |
— | ||
| replacement | |||||
|
4
|
4
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
5
|
5
92022-037 WASHER OIL PUMPWasher oil pump; |
92022-037 |
from US $2.53 |
||
|
6
|
6
16134-019
PIPE-OIL
|
16134-019 |
— | ||
|
7
|
7
92060-013 BOLT,BANJO,6X16Bolt-banjo,6mm; |
92060-013 |
from US $4.59 |
||
| replacement | |||||
|
7
|
7
92150-1982 BOLT,BANJO,6X16Bolt-banjo,6mm; |
92150-1982 |
from US $3.80 |
||
|
8
|
8
92022-077 WASHER,6.1X12X1Washer oil pump banj; |
92022-077 |
from US $2.53 |
||
|
9
|
9
16134-020
PIPE-OIL
|
16134-020 |
— | ||
|
10
|
10
92060-017 BOLT-BANJO |
92060-017 |
US $9.13 |
||
|
11
|
11
92065-058 GASKETGasket check valve; I.d=10.5 |
92065-058 |
from US $3.37 |
||
|
12
|
12
92065-023 GASKET, CHECK VALVEGasket check valve; I.d=8.5 |
92065-023 |
from US $3.17 |
||
|
13
|
13
92061-009 CONNECTOR BANJOConnector banjo; |
92061-009 |
from US $10.77 |
||
|
14
|
14
16093-005 SPRING-OIL PUMP LEVER |
16093-005 |
US $2.95 |
||
|
15
|
15
92049-1294 SEAL-OIL,CAMSHAFT,"X"Seal-oil,camshaft,"x; |
92049-1294 |
from US $7.34 |
||
|
16
|
16
16090-003
0 RING,LOWER CAP
"0" ring,lower cap; |
16090-003 |
— | ||
|
17
|
17
16088-002 0 RING,UPPER CAP"0" ring,upper cap; |
16088-002 |
from US $6.06 |
||
|
18
|
18
16090-002 0 RING,OIL PUMP SHT"0" ring,oil pump sh; |
16090-002 |
from US $4.35 |
||
|
19
|
19
16091-001 OIL SEAL OIL PUMP SHTOil seal oil pump sh; |
16091-001 |
from US $4.35 |
||
|
20
|
20
16096-010 LEVER-OIL PUMP CABLE |
16096-010 |
US $6.62 |
||
