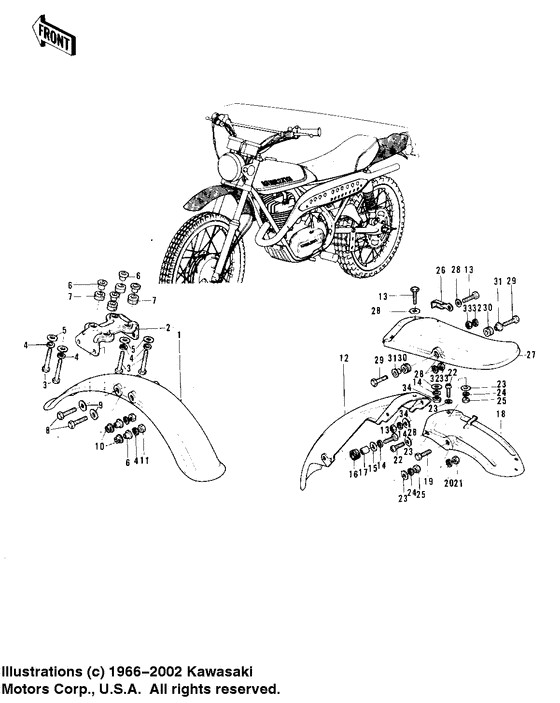

Fenders ('73-'75 f11/f11-a/f11-b) Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35004-066-1U
FENDER-FR,C.YELLOW
Fender-fr,c.yellow; F11, f11, f11a, f11a, f11b |
35004-066-1U |
— | ||
|
2
|
2
35012-016
BRACKET-FRONT FENDER
|
35012-016 |
— | ||
|
3
|
3
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
3
|
3
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
4
|
4
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
4
|
4
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
5
|
5
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
6
|
6
92027-153 COLLAR |
92027-153 |
from US $3.64 |
||
|
7
|
7
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
8
|
8
110N0618 BOLT HEX HEAD 6X18 |
110N0618 |
US $29.30 |
||
|
9
|
9
92022-024 WASHER,7X16X1.2Washer plain; |
92022-024 |
from US $2.53 |
||
|
10
|
10
92075-103 DAMPER RUBBER |
92075-103 |
from US $3.02 |
||
|
11
|
11
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
11
|
11
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
12
|
12
35022-066 FENDER-RR |
35022-066 |
US $30.98 |
||
|
13
|
13
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
13
|
13
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
14
|
14
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
14
|
14
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
15
|
15
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
15
|
15
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
16
|
16
92075-105 DAMPER RUBBERDamper rubber; |
92075-105 |
from US $3.33 |
||
|
17
|
17
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
18
|
18
35022-067-21 FENDER-RR,BLACKFender-rr,black; Rear |
35022-067-21 |
US $40.54 |
||
|
19
|
19
115B0814
BOLT-SMALL-UPSET,8X14
Bolt-small-upset,8x1; |
115B0814 |
— | ||
| replacement | |||||
|
19
|
19
115AA0814
BOLT-SMALL-UPSET,8X14
Bolt-small-upset,8x1; |
115AA0814 |
— | ||
|
20
|
20
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
20
|
20
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
21
|
21
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
21
|
21
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
21
|
21
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
22
|
22
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
22
|
22
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
23
|
23
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
23
|
23
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
24
|
24
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
24
|
24
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
25
|
25
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
25
|
25
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
26
|
26
92037-085 CLAMP |
92037-085 |
US $2.11 |
||
|
27
|
27
53043-003-1W
COVER,RR FEND,SILVER
Cover,rr fend,silver; Met. silver f11b, f11, f11, candy yellow f11a, candy lime f11a |
53043-003-1W |
— | ||
|
28
|
28
92022-044 WASHER-PL-10.5X26X2.3Washer-pl-10.5x26x2.; |
92022-044 |
from US $3.20 |
||
|
29
|
29
92007-029 BOLT-HEX HEAD,10X46Bolt-hex head,10x46; |
92007-029 |
US $7.36 |
||
|
30
|
30
92075-104 DAMPER, RUBBERDamper rubber; |
92075-104 |
US $6.50 |
||
|
31
|
31
92027-147 COLLAR |
92027-147 |
from US $8.55 |
||
|
32
|
32
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
32
|
32
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
33
|
33
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
33
|
33
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
34
|
34
92019-008 NUT |
92019-008 |
from US $2.53 |
||
