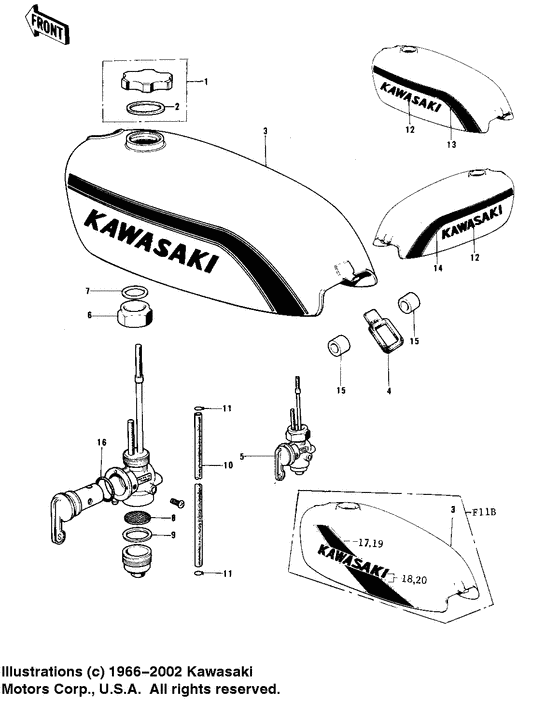

Fuel tank (F11-a/b) Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51048-1013
CAP,FUEL TANK
Cap,fuel tank; |
51048-1013 |
— | ||
|
2
|
2
51059-011
GASKET,FUEL TANK CAP
Gasket,fuel tank cap; |
51059-011 |
— | ||
|
3
|
3
51001-076-1U
TANK-FUEL,C.YELLOW
Tank-fuel,c.yellow; F11a, f11b, f11b, f11a |
51001-076-1U |
— | ||
|
4
|
4
92072-036
BAND-FUEL TANK
|
92072-036 |
— | ||
|
5
|
5
51023-044
COCK ASSY,FUEL
Cock assy,fuel; |
51023-044 |
— | ||
|
6
|
6
51035-009
FUEL COCK JOINT NUT
|
51035-009 |
— | ||
|
7
|
7
92065-081 PACKING |
92065-081 |
US $7.04 |
||
| replacement | |||||
|
7
|
7
43049-1071 PACKING |
43049-1071 |
from US $3.96 |
||
|
8
|
8
51038-007
STRAINER FUEL
|
51038-007 |
— | ||
|
9
|
9
51037-010 PACKING |
51037-010 |
US $3.44 |
||
| replacement | |||||
|
9
|
9
43049-1070 PACKING |
43049-1070 |
from US $3.96 |
||
|
10
|
10
92059-080 PIPE-FUELPipe-fuel; L=90 m/m |
92059-080 |
from US $3.89 |
||
|
11
|
11
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
12
|
12
56013-051
DECAL-FUEL TANK
Decal-fuel tank; *special solution is required, *special solution is required |
56013-051 |
— | ||
|
13
|
13
56027-171 DECAL,L.H FUEL TANKDecal,l.h fuel tank; *special solution is required, *special solution is required |
56027-171 |
US $6.93 |
||
| replacement | |||||
|
13
|
13
56027-171-SP DECAL,FUEL TANK,L.HDecal,l.h fuel tank; *special solution is required, *special solution is required |
56027-171-SP |
US $12.06 |
||
|
14
|
14
56027-172 DECAL,R.H FUEL TANKDecal,r.h fuel tank; *special solution is required, *special solution is required |
56027-172 |
US $6.46 |
||
| replacement | |||||
|
14
|
14
56027-172-SP DECAL,FUEL TANK,R.HDecal,r.h fuel tank; *special solution is required, *special solution is required |
56027-172-SP |
US $12.06 |
||
|
15
|
15
92026-088 SPACER,FUEL TANKSpacer,fuel tank; |
92026-088 |
US $1.69 |
||
|
16
|
16
670B2014 O RING,14MM"o" ring,14mm; |
670B2014 |
from US $1.50 |
||
|
17
|
17
56027-282-SP DECAL,L.H FL TK,UPPERDecal,l.h fl tk,uppe; *special solution is required, *special solution is required |
56027-282-SP |
US $11 |
||
|
18
|
18
56027-283-SP DECAL,L.H FL TK,LOWERDecal,l.h fl tk,lowe; F11b *special solution is required, f11b *special solution is required |
56027-283-SP |
US $15.41 |
||
|
19
|
19
56027-284-SP DECAL,R.H FL TK,UPPERDecal,r.h fl tk,uppe; *special solution is required *special solution is required, *special solution is required *special solution is required |
56027-284-SP |
US $7.70 |
||
|
20
|
20
56027-285-SP DECAL,R.H FL TK,LOWERDecal,r.h fl tk,lowe; *special solution is required *special solution is required, *special solution is required *special solution is required |
56027-285-SP |
US $15.41 |
||
