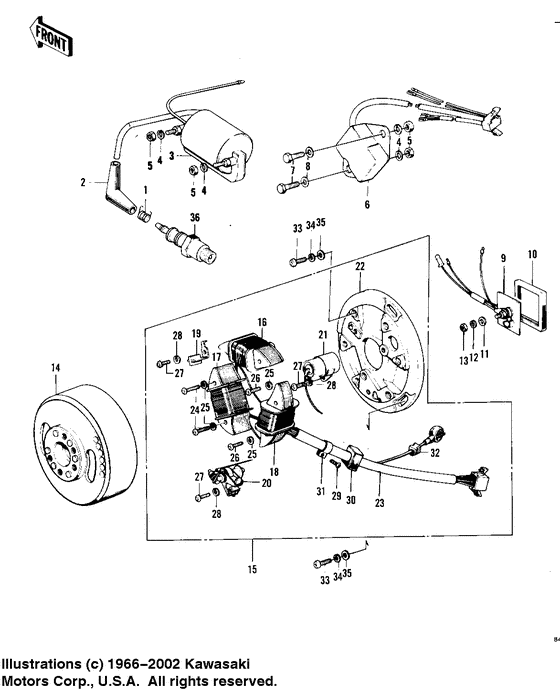

Generator/rectifier Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92101001 SPRING-SPARK PLUG CAPSpring-spark plug ca; |
92101001 |
US $2.23 |
||
|
2
|
2
21130009 CAP SPARK PLUGCap spark plug; |
21130009 |
from US $16.79 |
||
|
3
|
3
21121-042
COIL-IGNITION
|
21121-042 |
— | ||
|
4
|
4
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
4
|
4
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
5
|
5
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
6
|
6
21066-016 REGULATOR |
21066-016 |
US $384.80 |
||
|
7
|
7
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
7
|
7
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
8
|
8
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
8
|
8
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
9
|
9
21061-013 RECTIFIER |
21061-013 |
US $58.12 |
||
|
10
|
10
32103-020 MAT-RECTIFIER |
32103-020 |
US $2.70 |
||
|
11
|
11
410B0500
W-PLAIN-S
Washer plain 5mm; |
410B0500 |
— | ||
| replacement | |||||
|
11
|
11
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
12
|
12
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
12
|
12
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
13
|
13
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
13
|
13
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
14
|
14
21050-013 FLYWHEEL |
21050-013 |
US $322.31 |
||
|
15
|
15
21003-017 STATOR ASSY |
21003-017 |
US $497.75 |
||
|
16
|
16
21047-017 COIL-LIGHTING,A.coil-lighting,a; |
21047-017 |
US $127.53 |
||
|
17
|
17
21047-018 COIL-LIGHTING B |
21047-018 |
US $99.07 |
||
|
18
|
18
21049-015 COIL-PRIMARY |
21049-015 |
US $109.31 |
||
|
19
|
19
21019005
FELT OIL
.felt oil; |
21019005 |
— | ||
|
20
|
20
21008-020
BREAKER-CONTACT
|
21008-020 |
— | ||
|
21
|
21
21013-030
CONDENSER
.~e/no. 4999condenser; E/no. 5000~ |
21013-030 |
— | ||
|
22
|
22
21048-009 BASE-MAGNETO |
21048-009 |
US $57.62 |
||
|
23
|
23
21029-023 WIRING HARNESS-MAIN |
21029-023 |
US $45.11 |
||
|
24
|
24
220B0530
SCREW-PAN-CROS
.screw pan head 5x30; |
220B0530 |
— | ||
| replacement | |||||
|
24
|
24
220AA0530 SCREW-PAN-CROS.screw pan head 5x30; |
220AA0530 |
from US $0.95 |
||
|
25
|
25
461F0500
WASHER-SPRING
.washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
25
|
25
461DA0500 WASHER-SPRING.washer spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
26
|
26
220B0525
SCREW-PAN-CROS,5X25
.screw-pan-cros,5x25; |
220B0525 |
— | ||
| replacement | |||||
|
26
|
26
220AA0525 SCREW-PAN-CROS,5X25.screw-pan-cros,5x25; |
220AA0525 |
from US $1.25 |
||
|
27
|
27
220B0410 SCREW-PAN CROS,4X10.screw pan head 4x10; |
220B0410 |
US $0.95 |
||
| replacement | |||||
|
27
|
27
220AA0410 SCREW-PAN CROS,4X10.screw pan head 4x10; |
220AA0410 |
from US $0.79 |
||
|
28
|
28
461F0400
WASHER-SPRING
.washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
28
|
28
461DA0400 WASHER-SPRING.washer spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
29
|
29
220B0406
SCREW-PAN CROS,4X6
.screw pan head 4x6; |
220B0406 |
— | ||
| replacement | |||||
|
29
|
29
220AA0406 SCREW-PAN CROS,4X6.screw pan head 4x6; |
220AA0406 |
from US $1.11 |
||
|
30
|
30
92071-050 GROMMET-WIRING HARN.grommet-wiring harn; |
92071-050 |
US $7.42 |
||
|
31
|
31
21037002 CLAMP WIRING HARNESS.clamp wiring harness; |
21037002 |
US $2.93 |
||
|
32
|
32
21017-005 GROMMET WIRING HARN C.grommet wiring harn; |
21017-005 |
US $2.81 |
||
|
33
|
33
220B0520
SCREW PAN HEAD 5X20
Screw pan head 5x20; |
220B0520 |
— | ||
| replacement | |||||
|
33
|
33
220AA0520 SCREW-PAN-CROSScrew pan head 5x20; |
220AA0520 |
from US $0.78 |
||
|
34
|
34
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
34
|
34
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
35
|
35
410B0500
W-PLAIN-S
Washer plain 5mm; |
410B0500 |
— | ||
| replacement | |||||
|
35
|
35
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
36
|
36
B9HS
KA SPARK PLUG B9HS
|
B9HS |
— | ||
