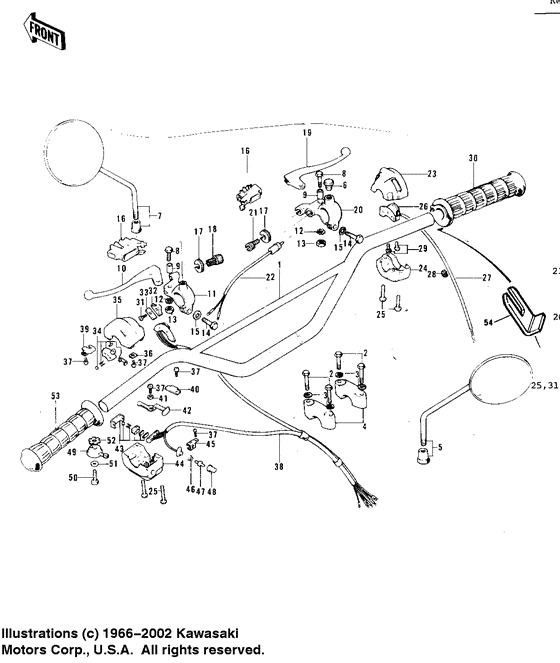

Handlebar (F11-a) Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46004-019 HANDLEBAR |
46004-019 |
US $96.71 |
||
|
2
|
2
92001-1405 BOLT 8X38 |
92001-1405 |
from US $11.23 |
||
|
3
|
3
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
3
|
3
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
4
|
4
46012008 HOLDER-HANDLEBARHolder-handlebar; |
46012008 |
from US $24.53 |
||
|
5
|
5
56002-020 REAR VIEW MIRROR,R.HRear view mirror,r.h; Option |
56002-020 |
from US $44.64 |
||
|
6
|
6
92102-009 CAP-RR VIEW MIRRORNot reqd for 56003-001 |
92102-009 |
US $2.75 |
||
| replacement | |||||
|
6
|
6
92066-1077 PLUG,9.5X8Not reqd for 56003-001 |
92066-1077 |
from US $3.01 |
||
|
7
|
7
56003009 REAR VIEW MIRROR,L.HRear view mirror,l.h; |
56003009 |
US $77.10 |
||
|
8
|
8
92007-020
BOLT HEX HEAD 5X20
|
92007-020 |
— | ||
|
9
|
9
46059-011
COLLAR LEVER
|
46059-011 |
— | ||
|
10
|
10
46092015 LEVER-CLUTCHLever-clutch; |
46092015 |
from US $20.45 |
||
|
11
|
11
4609401121 HOLDER,F.BLACKHolder-clutch lev,bl; Flat black |
4609401121 |
from US $23.64 |
||
|
12
|
12
464H0500
Washer-lock,5mm
|
464H0500 |
— | ||
| replacement | |||||
|
12
|
12
464EA0500
Washer-toothed
|
464EA0500 |
— | ||
|
13
|
13
312B0500
NUT-HEX
Nut 5mm; |
312B0500 |
— | ||
| replacement | |||||
|
13
|
13
312AA0500 NUT-HEXNut 5mm; |
312AA0500 |
from US $0.78 |
||
|
14
|
14
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
14
|
14
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
15
|
15
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
15
|
15
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
16
|
16
46071-002
DUST COVER
|
46071-002 |
— | ||
|
17
|
17
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
18
|
18
46055003 SCREW CABLE ADJUSTScrew cable adjust; I.d=8 |
46055003 |
from US $11.09 |
||
|
19
|
19
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
20
|
20
4606000921 HOLDER-FR BRK LEV,BLKHolder-fr brk lev,bl; Flat black |
4606000921 |
from US $24.11 |
||
|
21
|
21
46055010 SCREW,CABLE ADJUSTScrew,cable adjust; I.d=7 |
46055010 |
from US $17.88 |
||
|
22
|
22
27021-005
SWITCH-FR BRAKE LAMP
|
27021-005 |
— | ||
|
23
|
23
46041-009-21 CASE-R.H UPPER,BLACKCase-r.h upper,black; Flat black |
46041-009-21 |
US $39.22 |
||
|
24
|
24
46023-009-21 CASE-R.H LOWER,BLACKCase-r.h lower,black; Flat black |
46023-009-21 |
US $30.13 |
||
|
25
|
25
220B0522 SCREW-PAN-CROSScrew pan head 5x22; |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
25
|
25
220AA0522 SCREW-PAN-CROSScrew pan head 5x22; |
220AA0522 |
from US $0.82 |
||
|
26
|
26
46028-004 SWITCH-ENGINE STOP |
46028-004 |
US $18.22 |
||
|
27
|
27
46082-024 WIRING HARNESS-STP SP |
46082-024 |
US $3.40 |
||
|
28
|
28
92071-060 GROMMET-WIRING HARNESGrommet-wiring harne; |
92071-060 |
US $1.12 |
||
|
29
|
29
220B0306
SCREW-PAN-CROS,3X6
Screw-pan-head 3x6; |
220B0306 |
— | ||
| replacement | |||||
|
29
|
29
220AA0306 SCREW-PAN-CROS,3X6Screw-pan-head 3x6; |
220AA0306 |
from US $0.78 |
||
|
30
|
30
46019-022 GRIP ASSY-THROTTLE |
46019-022 |
US $13.01 |
||
|
31
|
31
221B0308A
SCREW CNTSNK HD 3X8
|
221B0308A |
— | ||
|
32
|
32
46044-011
KNOB-L.H SWITCH
|
46044-011 |
— | ||
|
33
|
33
46031-003
SPRING L.H SW KNOB
|
46031-003 |
— | ||
|
34
|
34
46089-012 SWITCH ASSY,L.HSwitch assy,l.h; |
46089-012 |
US $9.13 |
||
|
35
|
35
46086-016-21 CASE-L.H UPPER,BLACKCase-l.h upper,black; Flat black |
46086-016-21 |
US $14.87 |
||
|
36
|
36
46085-019 HOLDER-L.H SW UPPER,BHolder-l.h sw upper,; |
46085-019 |
US $0.65 |
||
|
37
|
37
220B0306
SCREW-PAN-CROS,3X6
Screw-pan-head 3x6; |
220B0306 |
— | ||
| replacement | |||||
|
37
|
37
220AA0306 SCREW-PAN-CROS,3X6Screw-pan-head 3x6; |
220AA0306 |
from US $0.78 |
||
|
38
|
38
46082-025 WIRING HARNESS-L.H SW |
46082-025 |
US $30.15 |
||
|
39
|
39
46085-020 HOLDER-LH SW UPPER,AHolder-lh sw upper,a; |
46085-020 |
US $2.02 |
||
|
40
|
40
46085-016 HOLDER-L.H SW LOWER,AHolder-l.h sw lower,; |
46085-016 |
US $3.40 |
||
|
41
|
41
92095-010
WASHER
|
92095-010 |
— | ||
|
42
|
42
46044-012 KNOB-SWITCH |
46044-012 |
US $4.32 |
||
|
43
|
43
46089-007 SLIDE BLOCK AY-L.H SWSlide block ay-l.h s; |
46089-007 |
US $15.97 |
||
|
44
|
44
46077-017-21 CASE-L.H LOWER,BLACKCase-l.h lower,black; Flat black |
46077-017-21 |
US $14.81 |
||
|
45
|
45
46085-017 HOLDER-L.H SW LOWER,BHolder-l.h sw lower,; |
46085-017 |
US $0.90 |
||
|
46
|
46
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn but; |
27010-1009 |
from US $6.49 |
||
|
47
|
47
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn but; |
27010-1009 |
from US $6.49 |
||
|
48
|
48
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn but; |
27010-1009 |
from US $6.49 |
||
|
49
|
49
46096-008-10 LEVER,STARTER,BLACKLever,starter,black; |
46096-008-10 |
US $25.09 |
||
|
50
|
50
110B0608 BOLT HEX HEAD 6X8Bolt hex head 6x8; |
110B0608 |
US $2.20 |
||
| replacement | |||||
|
50
|
50
112AA0608 BOLT-UPSETBolt hex head 6x8; |
112AA0608 |
from US $0.94 |
||
|
51
|
51
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
51
|
51
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
52
|
52
92095-012 WASHER LOCK |
92095-012 |
US $16 |
||
|
53
|
53
46075-019 RUBBER-L.H GRIP |
46075-019 |
US $6.25 |
||
|
54
|
54
46037-023 HOLDER,CONTROL CABLEHolder,control cable; |
46037-023 |
US $6.28 |
||
|
23
|
23
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
24
|
24
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
25
|
25
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
26
|
26
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
27
|
27
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
28
|
28
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
29
|
29
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
30
|
30
46018-023-21
CASE ASSY-R.H,F.BLACK
Case assy-r.h,f.blac; Flat black |
46018-023-21 |
— | ||
|
26
|
26
46027-010 SWITCH ASSY-ENG STOP |
46027-010 |
US $15.98 |
||
|
27
|
27
46027-010 SWITCH ASSY-ENG STOP |
46027-010 |
US $15.98 |
||
|
28
|
28
46027-010 SWITCH ASSY-ENG STOP |
46027-010 |
US $15.98 |
||
|
25
|
25
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
31
|
31
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
32
|
32
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
33
|
33
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
34
|
34
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
35
|
35
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
36
|
36
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
37
|
37
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
38
|
38
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
39
|
39
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
40
|
40
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
41
|
41
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
42
|
42
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
43
|
43
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
44
|
44
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
45
|
45
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
46
|
46
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
47
|
47
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
48
|
48
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
49
|
49
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
50
|
50
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
51
|
51
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
|
52
|
52
46091-011-21 CASE ASSY-L.H,F.BLACKCase assy-l.h,f.blac; Flat black |
46091-011-21 |
US $64.96 |
||
