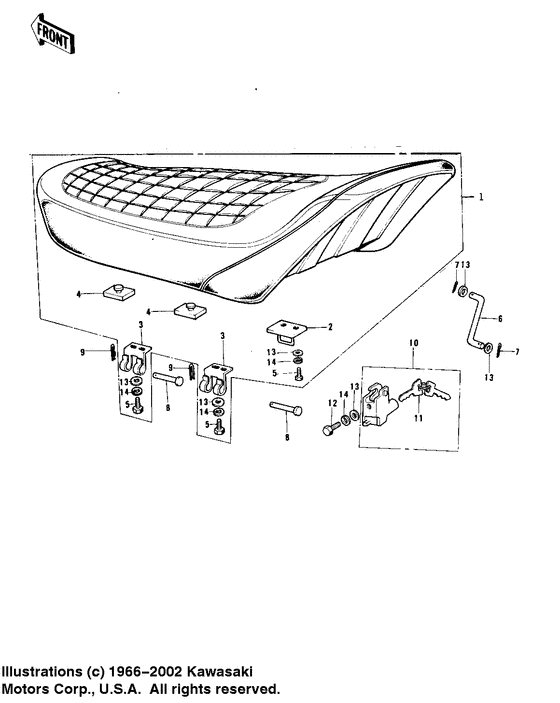

Seat (F11-a/b) Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53002-056 SEAT ASSY,DUALSeat assy,dual; F11a/b |
53002-056 |
US $221.67 |
||
|
2
|
2
53008021 HOOK, SEATHook, seat; |
53008021 |
from US $8.08 |
||
|
3
|
3
53009-017-10 HINGE,BLACKHinge,black; |
53009-017-10 |
US $71.98 |
||
|
4
|
4
92075-099 DAMPER RUBBERDamper rubber; |
92075-099 |
from US $3.33 |
||
|
5
|
5
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
5
|
5
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
5
|
5
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
6
|
6
53054-008 STOPPER,SEATStopper,seat; |
53054-008 |
US $4.16 |
||
|
7
|
7
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; F11b |
550D2015 |
— | ||
| replacement | |||||
|
7
|
7
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; F11b |
550AA2015 |
from US $0.63 |
||
|
8
|
8
53011002 PIN |
53011002 |
US $7.57 |
||
|
9
|
9
92041-003 COTTER PIN |
92041-003 |
from US $3.02 |
||
| replacement | |||||
|
9
|
9
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
10
|
10
53045-017
LOCK ASSY,SEAT
Lock assy,seat; |
53045-017 |
— | ||
|
11
|
11
27008-063-21 KEY SET,#421Key set,#421; Ref grid f3 #42 for key blanks |
27008-063-21 |
US $9.07 |
||
|
12
|
12
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
12
|
12
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
13
|
13
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
13
|
13
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
14
|
14
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
14
|
14
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
