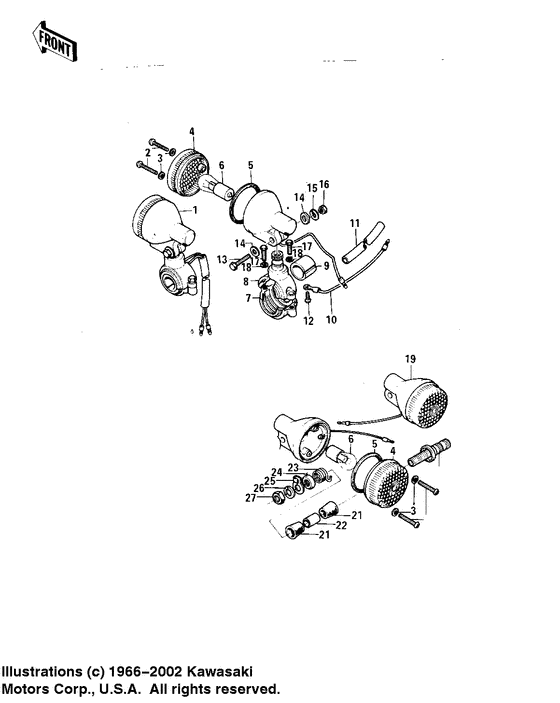

Turn signals Diagram Kawasaki Model "F" F11
- Year
- 1975
- Model code
- F11-B
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23037-005 LAMP ASY-FR TURN SIG |
23037-005 |
US $105.64 |
||
|
2
|
2
220E0420A
SCREW-PAN HEAD,4X20
Screw-pan head,4x20; |
220E0420A |
— | ||
|
3
|
3
23058002 WASHER-PLAIN,4MMWasher-plain,4mm; |
23058002 |
from US $2.85 |
||
|
4
|
4
23048-1001 LENS,TURN SIGNAL LAMPLens,turn signal lam; |
23048-1001 |
from US $11 |
||
|
5
|
5
23050003 GASKET-SIG LAMP LENSGasket-sig lamp lens; |
23050003 |
from US $4.03 |
||
|
6
|
6
92069-056 BULB,6V 21CPBulb,6v 21cp; |
92069-056 |
from US $4.05 |
||
|
7
|
7
23051-1013
BRACKET,SIGNAL LAMP
Bracket,signal lamp; |
23051-1013 |
— | ||
|
8
|
8
23051-1004
BRACKET,FRNT TURN SIG
Bracket,frnt turn si; |
23051-1004 |
— | ||
|
9
|
9
23066003 DAMPER RUBBERDamper rubber; |
23066003 |
US $5 |
||
|
10
|
10
26011061
WIRE-TURN SIGNAL LEAD
Wire-turn signal lea; |
26011061 |
— | ||
|
11
|
11
26009-004 COVER-WIRING HARNESS |
26009-004 |
US $1.48 |
||
|
12
|
12
220B0305A
SCREW,PAN HEAD,3X5
|
220B0305A |
— | ||
| replacement | |||||
|
12
|
12
92009-1123 SCREW,PAN HEAD,3X5 |
92009-1123 |
from US $0.79 |
||
|
13
|
13
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
13
|
13
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
14
|
14
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
14
|
14
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
15
|
15
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
15
|
15
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
16
|
16
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
16
|
16
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
17
|
17
110N0516
BOLT,5X16
|
110N0516 |
— | ||
| replacement | |||||
|
17
|
17
110R0516
BOLT,5X16
|
110R0516 |
— | ||
|
18
|
18
410D0500 WASHER,PLAIN,5MMWasher-plain,5mm; |
410D0500 |
US $10.30 |
||
| replacement | |||||
|
18
|
18
410S0500 WASHER,PLAIN,5MMWasher-plain,5mm; |
410S0500 |
from US $0.95 |
||
|
19
|
19
23040-033
LAMP-REAR TURN SIGNAL
Lamp-rear turn signa; |
23040-033 |
— | ||
|
20
|
20
23051-037
BKT-RR SIGNAL LAMP
|
23051-037 |
— | ||
|
21
|
21
92075-148
DAMPER RUBBER
|
92075-148 |
— | ||
|
22
|
22
92027-168
COLLAR 12.7X17.3X30
|
92027-168 |
— | ||
|
23
|
23
92081-111
SPRING
|
92081-111 |
— | ||
|
24
|
24
92022-235 WASHER CUP 12.5X35X4TWasher cup 12.5x35x4; |
92022-235 |
US $4.81 |
||
|
25
|
25
92037-087 CLAMP-RR SIGNAL LAMP |
92037-087 |
US $3.35 |
||
|
26
|
26
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
26
|
26
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
27
|
27
315B1200
NUT-HEX-FINE
Nut-hex-fine,12mm; |
315B1200 |
— | ||
| replacement | |||||
|
27
|
27
315AA1200 NUT-HEX-FINENut-hex-fine,12mm; |
315AA1200 |
from US $1.09 |
||
