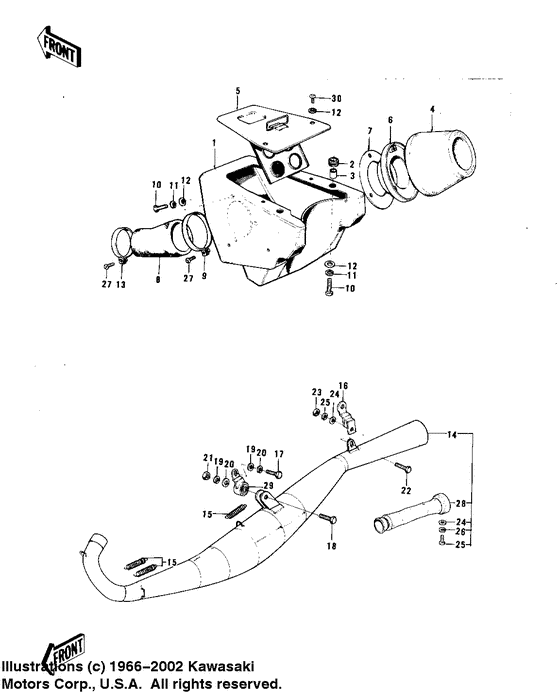

Air cleaner/muffler ('73 f11m) Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11011-026
BODY,AIR CLEANER
Body,air cleaner; |
11011-026 |
— | ||
|
2
|
2
92075-105 DAMPER RUBBERDamper rubber; |
92075-105 |
from US $3.33 |
||
|
3
|
3
92027-153 COLLAR |
92027-153 |
from US $3.64 |
||
|
4
|
4
11013-039 ELEMENT,AIR,CLNRElement,air,clnr; |
11013-039 |
US $92.63 |
||
|
5
|
5
11012-033
CAP ASSY,AIR CLEANER
Cap assy,air cleaner; |
11012-033 |
— | ||
|
6
|
6
11011-028 BODY,AIR CLEANERBody,air cleaner; |
11011-028 |
US $19.15 |
||
|
7
|
7
11017-010 GASKET |
11017-010 |
US $1.82 |
||
|
8
|
8
11026-007 PIPE |
11026-007 |
US $8.39 |
||
|
9
|
9
92037-106
CLAMP
|
92037-106 |
— | ||
|
10
|
10
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
10
|
10
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
11
|
11
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
11
|
11
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
92037-107 CLAMP |
92037-107 |
US $6.95 |
||
|
14
|
14
18001-094 MUFFLER ASSY |
18001-094 |
US $291.46 |
||
|
15
|
15
18071-006 SPRING,MUFFLERSpring,muffler; |
18071-006 |
US $10.58 |
||
|
16
|
16
18061-041 BRACKET,MUFFLERBracket,muffler; |
18061-041 |
US $61.67 |
||
|
17
|
17
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x1; |
115G0816 |
— | ||
| replacement | |||||
|
17
|
17
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x1; |
115BA0816 |
from US $0.86 |
||
|
18
|
18
115B0832
BOLT, 8X32
|
115B0832 |
— | ||
| replacement | |||||
|
18
|
18
92002-1241
BOLT, 8X32
|
92002-1241 |
— | ||
|
19
|
19
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
19
|
19
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
20
|
20
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
20
|
20
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
21
|
21
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
21
|
21
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
21
|
21
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
22
|
22
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
22
|
22
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
23
|
23
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
23
|
23
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
24
|
24
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
24
|
24
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
25
|
25
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
25
|
25
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
26
|
26
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
26
|
26
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
27
|
27
220B0530
SCREW-PAN-CROS
Screw pan head 5x30; |
220B0530 |
— | ||
| replacement | |||||
|
27
|
27
220AA0530 SCREW-PAN-CROSScrew pan head 5x30; |
220AA0530 |
from US $0.95 |
||
|
28
|
28
18033-072 BAFFLE TUBE |
18033-072 |
US $61.67 |
||
|
29
|
29
18024-019 BRACKET,MUFFLERBracket,muffler; |
18024-019 |
US $37.01 |
||
|
30
|
30
220B0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
30
|
30
220AA0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220AA0610 |
from US $0.95 |
||
