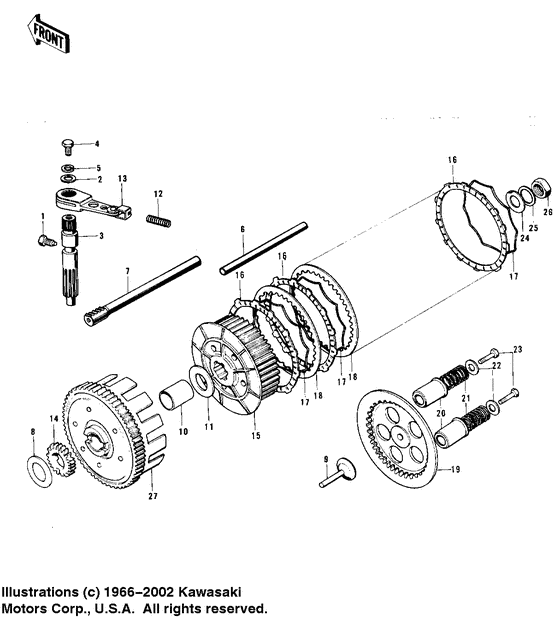

Clutch ('73 f11m) Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92001-129 BOLT |
92001-129 |
US $1.21 |
||
|
2
|
2
92022-193 WASHER-PLAINWasher-plain; |
92022-193 |
from US $3.48 |
||
|
3
|
3
13106-005 SHAFT,CLUTCH RELEASEShaft,clutch release; |
13106-005 |
US $87.64 |
||
|
4
|
4
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
4
|
4
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
5
|
5
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
5
|
5
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
6
|
6
13116-017 ROD-CLUTCH PUSH,LONGRod-clutch push,long; |
13116-017 |
US $14.04 |
||
|
7
|
7
13116-024 ROD,CLUTCH PUSHRod,clutch push; |
13116-024 |
US $54.85 |
||
|
8
|
8
92022-168 WASHER-CLUTCH THRUSTWasher-clutch thrust; 1.4t |
92022-168 |
from US $6.02 |
||
|
9
|
9
13116-020 PUSHER-CLTCH SPRG PLT |
13116-020 |
US $10.80 |
||
|
10
|
10
92028-105 BUSHING |
92028-105 |
US $21.28 |
||
|
11
|
11
92022-189 WASHER-PLAIN,20MMWasher-plain,20mm; 3.0t |
92022-189 |
US $6.77 |
||
|
12
|
12
92081-069 SPRING-CLUTCH RELEASESpring-clutch releas; |
92081-069 |
from US $4.18 |
||
|
13
|
13
13102-016 LEVER,CLUTCH RELEASELever,clutch release; |
13102-016 |
US $84.15 |
||
|
14
|
14
13075-008 PINION-KICKSTARTER |
13075-008 |
US $30.15 |
||
|
15
|
15
13087-029 Hub-clutch |
13087-029 |
US $65.09 |
||
|
16
|
16
13088-031 PLATE,CLUTCH FRICTIONPlate,clutch frictio; |
13088-031 |
US $6.53 |
||
|
17
|
17
13229-003
RING-CLUTCH STEEL
|
13229-003 |
— | ||
|
18
|
18
13089-013 PLATE CLUTCH STEELPlate clutch steel; |
13089-013 |
from US $11.09 |
||
|
19
|
19
13187-005 PLATE-CLUTCH SPRING |
13187-005 |
US $41.72 |
||
|
20
|
20
13092-005 GUIDE CLUTCH SPRING |
13092-005 |
US $10.39 |
||
|
21
|
21
92081-083 SPRING-CLUTCHSpring-clutch; |
92081-083 |
from US $5.07 |
||
|
22
|
22
13091-009
HOLDER CL SPG6.5X20X2
Holder cl spg6.5x20x; |
13091-009 |
— | ||
|
23
|
23
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
23
|
23
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
24
|
24
92022-229 WASHER-PLAIN |
92022-229 |
US $1.08 |
||
|
25
|
25
463G1400 WASHER-LOCK,14MMWasher-lock,14mm; |
463G1400 |
US $0.61 |
||
|
26
|
26
314B1400 NUT,14MMNut,14mm; |
314B1400 |
US $0.81 |
||
| replacement | |||||
|
26
|
26
314AA1400 NUT,14MMNut,14mm; |
314AA1400 |
from US $0.76 |
||
|
27
|
27
13095-031 HOUSING-CLUTCH |
13095-031 |
US $180.11 |
||
