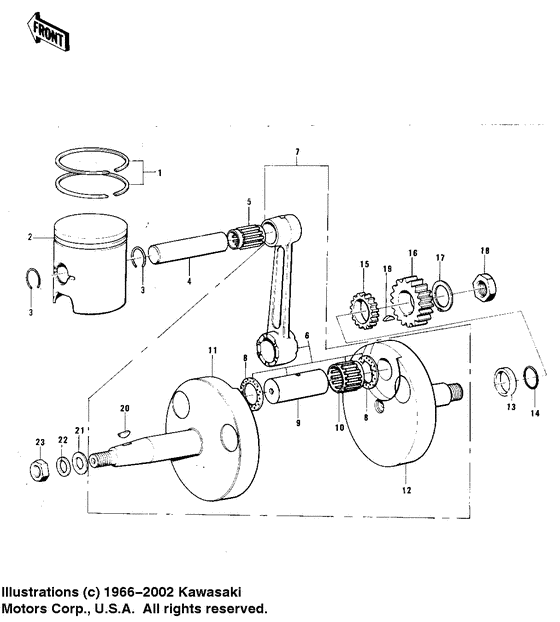

Crankshaft/piston ('73 f11m) Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13008-030 RING SET,STDRing set,std; |
13008-030 |
US $41.47 |
||
|
2
|
2
13001-058 PISTON,STDPiston,std; |
13001-058 |
US $78.71 |
||
|
3
|
3
92036-015 CIRCLIP-PISTON PINCirclip-piston pin; |
92036-015 |
from US $3.33 |
||
|
4
|
4
13002017 PIN-PISTON |
13002017 |
US $21.39 |
||
|
5
|
5
13033-1010 BEARING-SMALL ENDBearing-small end; Kbr182223.8x |
13033-1010 |
from US $21.23 |
||
|
6
|
6
13044-026 CONNECTING ROD SET |
13044-026 |
US $129.10 |
||
|
7
|
7
13036-040 CRANK SHAFT ASSY |
13036-040 |
US $438.44 |
||
|
8
|
8
92026-1241
SPACER,24X42X1.6
|
92026-1241 |
— | ||
| replacement | |||||
|
8
|
8
92026-1500 SPACER,24X42X1.6 |
92026-1500 |
US $5.07 |
||
|
9
|
9
13035-031
CRANK PIN
|
13035-031 |
— | ||
|
10
|
10
13034049 BEARING,BIG END NEEDLBearing,big end need; Pk243129.8x |
13034049 |
US $33.36 |
||
|
11
|
11
13037-049 CRANKSHAFT,L.HCrankshaft,l.h; |
13037-049 |
US $181.51 |
||
| replacement | |||||
|
11
|
11
13036-037 CRANK&CONROD ASSYCrankshaft,l.h; |
13036-037 |
US $477.20 |
||
|
12
|
12
13038-044 CRANKSHAFT,R.HCrankshaft,r.h; |
13038-044 |
US $172.80 |
||
| replacement | |||||
|
12
|
12
13036-037 CRANK&CONROD ASSYCrankshaft,r.h; |
13036-037 |
US $477.20 |
||
|
13
|
13
92027-144 COLLAR-CRANKSHAFT |
92027-144 |
US $8.01 |
||
|
14
|
14
670B2020 0 RING,20MM"0" ring,20mm; |
670B2020 |
from US $1.68 |
||
|
15
|
15
16084-013 PINION-OIL PUMP17t |
16084-013 |
US $17.55 |
||
|
16
|
16
13121-022 PINION-PRIMARY24t |
13121-022 |
US $65.09 |
||
|
17
|
17
92024-067
WASHER,LOCK,18MM
Washer,lock,18mm; |
92024-067 |
— | ||
|
18
|
18
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $4.80 |
||
|
19
|
19
510A5100 WOODRUFF KEYWoodruff key; |
510A5100 |
from US $3.40 |
||
|
20
|
20
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
21
|
21
92022-172 WASHER-PLAIN,14MMWasher-plain,14mm; |
92022-172 |
US $8.21 |
||
|
22
|
22
461F1400 WASHER SPRING 14MM |
461F1400 |
US $0.60 |
||
|
23
|
23
92015-043 NUT 14MM |
92015-043 |
US $4.88 |
||
