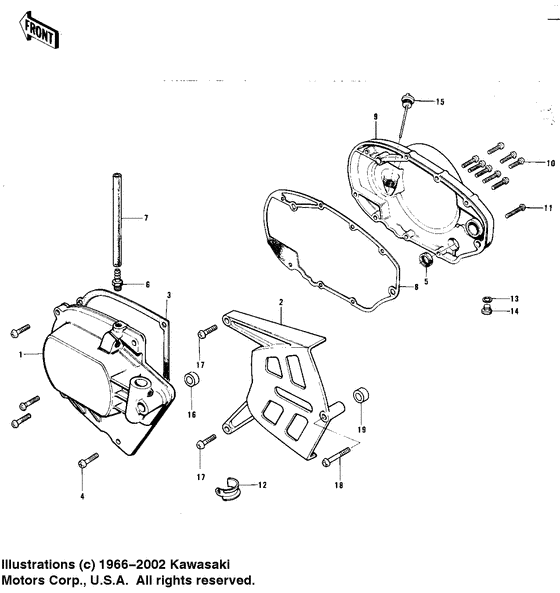

Engine covers ('73 f11m) Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14031-064-21 COVER,L.H ENGINE,BLKCover,l.h engine,blk; |
14031-064-21 |
US $211.95 |
||
|
2
|
2
14025-003-21
COVER,ENGINE SPROCKET
Cover,engine sprocke; |
14025-003-21 |
— | ||
|
3
|
3
14045-013 GASKET-L.H ENGINE COT |
14045-013 |
US $4.03 |
||
|
4
|
4
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
4
|
4
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
5
|
5
92054-004 OIL SEAL |
92054-004 |
from US $9.17 |
||
|
6
|
6
92005-006 NIPPLE,BREATHERNipple,breather; |
92005-006 |
US $8.30 |
||
|
7
|
7
92059-002 PIPE-OIL |
92059-002 |
US $22.18 |
||
| replacement | |||||
|
7
|
7
92059-072 PIPE-OIL |
92059-072 |
from US $19.01 |
||
|
8
|
8
14046-022 GASKET-R.H ENGINE COT |
14046-022 |
US $17.53 |
||
|
9
|
9
14032-086-21 COVER,R.H ENGINE,BLKCover,r.h engine,blk; |
14032-086-21 |
US $240.57 |
||
|
10
|
10
220B0635
SCREW-PAN-CROSS,6X35
Screw pan head 6x35; |
220B0635 |
— | ||
| replacement | |||||
|
10
|
10
220AA0635 SCREW-PAN-CROSS,6X35Screw pan head 6x35; |
220AA0635 |
from US $0.63 |
||
|
11
|
11
220B0645 SCREW-PAN HEAD,6X45Screw pan head 6x45; |
220B0645 |
from US $1.27 |
||
| replacement | |||||
|
11
|
11
220AA0645 SCREW-PAN HEAD,6X45Screw pan head 6x45; |
220AA0645 |
from US $1.30 |
||
|
12
|
12
35024-002 CLIP WIRING HARNESS |
35024-002 |
US $2.21 |
||
|
13
|
13
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
14
|
14
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
15
|
15
16115018 CAP-OIL FILLERFiller,oil; |
16115018 |
from US $7.92 |
||
|
16
|
16
92075-205 DAMPER RUBBER |
92075-205 |
US $0.83 |
||
|
17
|
17
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
17
|
17
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
18
|
18
220B0640
SCREW-PAN HEAD,6X40
Screw pan head 6x40; |
220B0640 |
— | ||
| replacement | |||||
|
18
|
18
220AA0640 SCREW-PAN HEAD,6X40Screw pan head 6x40; |
220AA0640 |
from US $0.95 |
||
|
19
|
19
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
