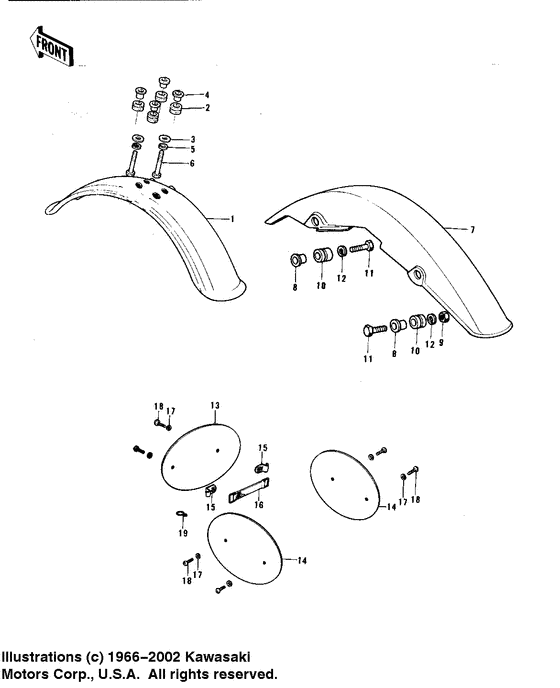

Fenders ('73 f11m) Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35004-079-10
FENDER-FR,BLACK
Fender-fr,black; |
35004-079-10 |
— | ||
|
2
|
2
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
3
|
3
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
3
|
3
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
4
|
4
92027-153 COLLAR |
92027-153 |
from US $3.64 |
||
|
5
|
5
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
5
|
5
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
6
|
6
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
6
|
6
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
7
|
7
35022-089-10 FENDER-RR,BLACKFender-rr,black; |
35022-089-10 |
US $172.80 |
||
|
8
|
8
92027-153 COLLAR |
92027-153 |
from US $3.64 |
||
|
9
|
9
92019-019 NUT,6MMNut,6mm; |
92019-019 |
US $6.25 |
||
|
10
|
10
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
11
|
11
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
11
|
11
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
58029-017 PLATE,FRONT NUMBERPlate,front number; |
58029-017 |
US $20.77 |
||
|
14
|
14
58029-018 PLATE,SIDE NUMBERPlate,side number; |
58029-018 |
US $20.77 |
||
|
15
|
15
58030-007 BRACKET |
58030-007 |
US $12.51 |
||
|
16
|
16
92072-006 BAND BATTERYBand battery; |
92072-006 |
from US $9.75 |
||
|
17
|
17
92022-024 WASHER,7X16X1.2Washer plain; |
92022-024 |
from US $2.53 |
||
|
18
|
18
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
18
|
18
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
18
|
18
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
19
|
19
92037-092 CLAMP,CABLEClamp,cable; |
92037-092 |
from US $6.38 |
||
