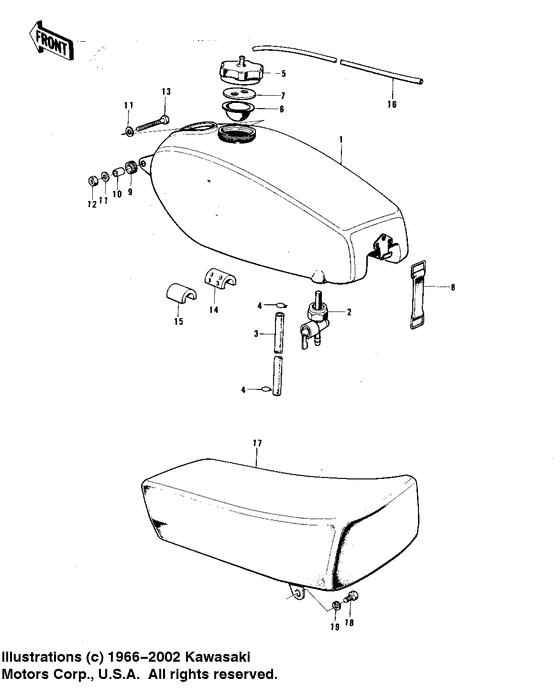

Fuel tank/seat Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51001-085 TANK,FUELTank,fuel; |
51001-085 |
US $200.97 |
||
|
2
|
2
51023-033
FUEL COCK ASSY
|
51023-033 |
— | ||
|
3
|
3
92059-080 PIPE-FUELPipe-fuel; L=115 m/m |
92059-080 |
from US $3.89 |
||
|
4
|
4
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
5
|
5
51049-021 CAP,FUEL TANKCap,fuel tank; |
51049-021 |
US $7.20 |
||
|
6
|
6
51059-010 GASKET,FUEL TANK CAPGasket,fuel tank cap; |
51059-010 |
US $12.82 |
||
|
7
|
7
51058-003 WASHER |
51058-003 |
US $1.28 |
||
|
8
|
8
92072-036
BAND-FUEL TANK
|
92072-036 |
— | ||
|
9
|
9
92075-197
DAMPER RUBBER
Damper rubber; |
92075-197 |
— | ||
|
10
|
10
92027-156
COLLAR 6.8X10X14.5
Collar 6.8x10x14.5; |
92027-156 |
— | ||
|
11
|
11
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
11
|
11
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
12
|
12
92019-019 NUT,6MMNut,6mm; |
92019-019 |
US $6.25 |
||
|
13
|
13
92003-111 BOLT,HEX HEAD,6X99Bolt,hex head,6x99; |
92003-111 |
US $3.40 |
||
|
14
|
14
92075-198 DAMPER RUBBER |
92075-198 |
US $6.88 |
||
| replacement | |||||
|
14
|
14
92075-215
DAMPER RUBBER,FL TNK
|
92075-215 |
— | ||
|
15
|
15
51067-002
MAT FUEL TANK
|
51067-002 |
— | ||
|
16
|
16
700Q05280
TUBE-PVC,5X1000
Tube-vinyl,5x280; |
700Q05280 |
— | ||
| replacement | |||||
|
16
|
16
700Q051000
TUBE-PVC,5X1000
Tube-vinyl,5x280; |
700Q051000 |
— | ||
|
17
|
17
53002-050
New Genuine Part
|
53002-050 |
— | ||
|
18
|
18
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x1; |
115G0816 |
— | ||
| replacement | |||||
|
18
|
18
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x1; |
115BA0816 |
from US $0.86 |
||
|
19
|
19
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
19
|
19
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
