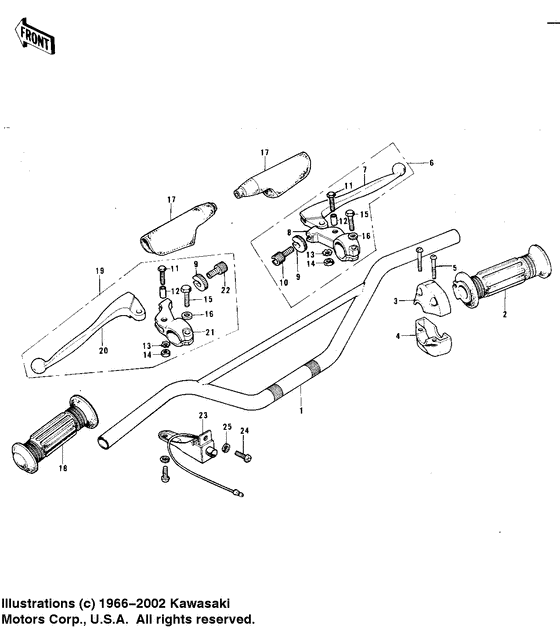

Handlebar Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46004-023
New Genuine Part
|
46004-023 |
— | ||
| replacement | |||||
|
1
|
1
46004-028
HANDLEBAR
|
46004-028 |
— | ||
|
2
|
2
46019-028 GRIP ASSY,THROTTLEGrip assy,throttle; |
46019-028 |
US $88.18 |
||
|
3
|
3
46023-012 CASE,R.H LOWERCase,r.h lower; |
46023-012 |
US $11.48 |
||
|
4
|
4
46041-012 CASE,R H UPPERCase,r h upper; |
46041-012 |
US $11.92 |
||
|
5
|
5
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
5
|
5
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
6
|
6
46021-019 LEVER ASSY,FRNT BRAKELever assy,frnt brak; |
46021-019 |
US $25.29 |
||
|
7
|
7
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
8
|
8
46060-008 HOLDER,FR BRAKE LEVERHolder,fr brake leve; |
46060-008 |
US $35.24 |
||
|
9
|
9
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
10
|
10
46055010 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055010 |
from US $17.88 |
||
|
11
|
11
92007-020
BOLT HEX HEAD 5X20
|
92007-020 |
— | ||
|
12
|
12
46059-011
COLLAR LEVER
|
46059-011 |
— | ||
|
13
|
13
464H0500
Washer-lock,5mm
|
464H0500 |
— | ||
| replacement | |||||
|
13
|
13
464EA0500
Washer-toothed
|
464EA0500 |
— | ||
|
14
|
14
312B0500
NUT-HEX
Nut 5mm; |
312B0500 |
— | ||
| replacement | |||||
|
14
|
14
312AA0500 NUT-HEXNut 5mm; |
312AA0500 |
from US $0.78 |
||
|
15
|
15
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
15
|
15
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
16
|
16
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
16
|
16
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
17
|
17
46071-003
DUST COVER
|
46071-003 |
— | ||
|
18
|
18
46075-023 RUBBER,L.H GRIPRubber,l.h grip; |
46075-023 |
US $21.69 |
||
|
19
|
19
46076-029 Lever assy,clutchLever assy,clutch; |
46076-029 |
US $27.99 |
||
|
20
|
20
46092015 LEVER-CLUTCHLever-clutch; |
46092015 |
from US $20.45 |
||
|
21
|
21
46094-010
HOLDER,CLUTCH LEVER
Holder,clutch lever; |
46094-010 |
— | ||
|
22
|
22
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
23
|
23
46027-006
SWITCH ASSY-ENG STOP
|
46027-006 |
— | ||
|
24
|
24
220B0306
SCREW-PAN-CROS,3X6
Screw-pan-head 3x6; |
220B0306 |
— | ||
| replacement | |||||
|
24
|
24
220AA0306 SCREW-PAN-CROS,3X6Screw-pan-head 3x6; |
220AA0306 |
from US $0.78 |
||
|
25
|
25
461F0300
WASHER SPRING 3MM
Washer spring 3mm; |
461F0300 |
— | ||
| replacement | |||||
|
25
|
25
461DA0300 WASHER-SPRINGWasher spring 3mm; |
461DA0300 |
from US $0.78 |
||
