Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 92028-109 BUSHING	92028-109	US $22.55
2	2 92046-1184 BEARING-NEEDLE	92046-1184	from US $20
3	3 92022-075 WASHER 17MM Ld=17.5 o.d=20	92022-075	US $6.80
4	4 13130-029 2ND GEAR-DRIVE SHAFT 16t	13130-029	US $31.48
5	5 92024-039 WASHER-LOCK Washer-lock; O.d=27	92024-039	from US $3.48
6	6 13136-043 TOP GEAR,DRIVE SHAFT Top gear,drive shaft; 22t	13136-043	US $39.24
7	7 92033-025 CIRCLIP,25MM Circlip;	92033-025	from US $3.73
8	8 13132-032 3RD GEAR,DRIVE SHAFT 3rd gear,drive shaft; 19t	13132-032	US $105.10
9	9 92022-198 WASHER-PLAIN Washer-plain; I.d=22.3	92022-198	from US $3.17
10	10 13134-017 4TH GEAR,DRIVE SHAFT 4th gear,drive shaft; 21t	13134-017	US $39.24
11	11 13127-040 SHAFT,DRIVE Shaft,drive; 14t	13127-040	US $124.52
12	12 480J3000 CIRCLIP,30MM Circlip,30mm;	480J3000	from US $1.43
13	13 13145-1058 CAM-CHANGE DRUM	13145-1058	from US $16.95
14	14 610A0406 PIN-DOWEL,4X6 Pin-dowel,4x6;	610A0406	from US $0.79
15	15 13239-012 DRUM ASSY-GEAR CHANGE Drum assy-gear change;	13239-012	US $106.94
16	16 92042-014 PIN GEAR CHANGE DRUM Pin gear change drum;	92042-014	from US $0.75
17	17 13142-008 PLATE CHANGE DRUM PIN	13142-008	US $2.95
18	18 464H0600 WASHER LOCK 6MM	464H0600	—
19	19 220B0612 Screw-pan head,6x12 Screw pan head 6x12;	220B0612	US $1.11
	replacements
19	19 220AA0612 SCREW-PAN-CROSS,6X12 Screw pan head 6x12;	220AA0612	from US $0.91
19	19 214B0612 Screw-pan+- Screw pan head 6x12;	214B0612	—
20	20 92043-076 PIN-NEUTRAL POSITION Pin-neutral position;	92043-076	from US $7.44
21	21 92081-112 SPRING	92081-112	from US $3.64
22	22 92001-106 BOLT	92001-106	US $3.40
23	23 92065-090 GASKET	92065-090	US $2.30
24	24 13140-044 FORK-SELECTOR,4TH&TOP Fork-selector,4th&top;	13140-044	US $47.11
25	25 13209-007 ROD-SHIFT,LONG Rod-shift,long; L=64.5m/m	13209-007	US $4.97
26	26 13140-043 FORK-SELECTOR,2ND&3RD Fork-selector,2nd&3rd;	13140-043	US $56.83
27	27 13140-042 FORK-SELECTOR,LOW Fork-selector,low;	13140-042	US $47.11
28	28 13209-007 ROD-SHIFT,LONG Rod-shift,long; L=94 m/m	13209-007	US $4.97
29	29 92015-019 NUT 18MM Nut 18mm;	92015-019	from US $4.80
30	30 92024-067 WASHER,LOCK,18MM Washer,lock,18mm;	92024-067	—
31	31 13144-017 ENGINE SPROCKET 14T Std, option	13144-017	—
32	32 92055-035 O-RING "o" ring;	92055-035	from US $3.01
33	33 92027-163 COLLAR-ENG SPROKET	92027-163	—
34	34 13128-033 SHAFT-OUTPUT	13128-033	US $107.08
35	35 13131-039 2ND GEAR,OUTPUT SHAFT 2nd gear,output shaf; 26t	13131-039	US $39.46
36	36 92024-038 WASHER-LOCK Washer-lock; O.d=31	92024-038	from US $3.48
37	37 92033-026 CIRCLIP Circlip;	92033-026	from US $6.72
38	38 13137-026 TOP GEAR,OUTPUT SHAFT Top gear,output shaf; 20t	13137-026	US $70.72
39	39 13133-032 3RD GEAR,OUTPUT SHAFT 3rd gear,output shaf; 24t	13133-032	US $54.85
40	40 13135-021 4TH GEAR,OUTPUT SHAFT 4th gear,output shaf; 22t	13135-021	US $46.58
41	41 13129-047 LOW GEAR,OUTPUT SHAFT Low gear,output shaf; 29t	13129-047	US $54.85
42	42 92026-021 WASHER THRUST	92026-021	US $9.97
43	43 92028-110 BUSHING	92028-110	US $15.17
44	44 480J1600 CIRCLIP 16MM Circlip 16mm;	480J1600	from US $1.43
45	45 92022-197 WASHER-THRUST Ld=17.3 o.d=20	92022-197	US $1.91
46	46 13073-008 IDLE GEAR-KICKSTARTER 30t	13073-008	US $42.32
47	47 13151-018 SWITCH,NEUTRAL Switch,neutral;	13151-018	—
48	48 92009-006 SCREW,PAN HEAD,4X6 Screw,pan head,4x6;	92009-006	US $1.17
49	49 461F0400 WASHER-SPRING Washer spring 4mm;	461F0400	—
	replacement
49	49 461DA0400 WASHER-SPRING Washer spring 4mm;	461DA0400	from US $0.78

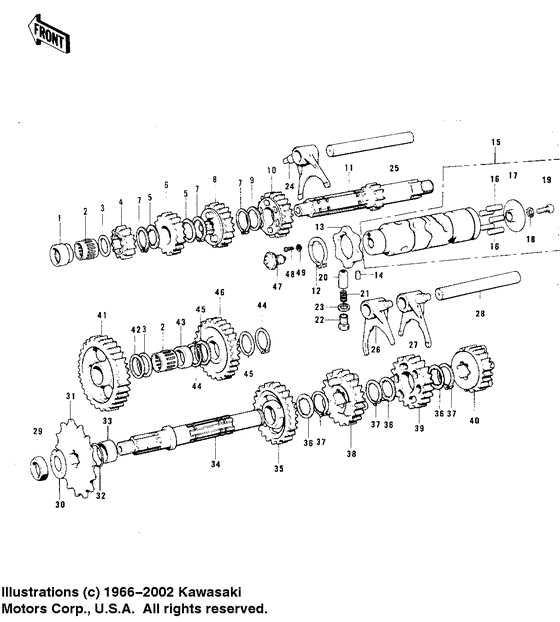

Transmission/change drum ('73 f11m) Diagram Kawasaki Model "F" F11 USA 10364499-682859

Transmission/change drum ('73 f11m) Diagram Kawasaki Model "F" F11 USA 10364499-682859
