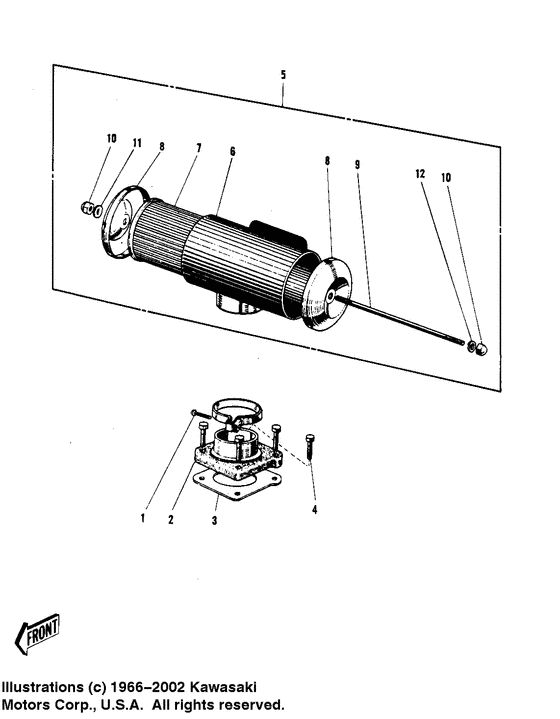

Air cleaner Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
1
|
1
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
2
|
2
11015-013 INLET PIPE |
11015-013 |
US $7.31 |
||
| replacement | |||||
|
2
|
2
11015-009 INLET PIPE |
11015-009 |
US $13.91 |
||
|
3
|
3
11017-002 GASKET INLET PIPE |
11017-002 |
US $3.82 |
||
|
4
|
4
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
4
|
4
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
5
|
5
11010-033 AIR CLEANER ASSY |
11010-033 |
US $72.95 |
||
|
6
|
6
11011-006 BODY AIR CLEANER |
11011-006 |
US $42.66 |
||
|
7
|
7
11013-011
ELEMENT AIR CLEANER
|
11013-011 |
— | ||
|
8
|
8
11012-007
CAP AIR CLEANER
|
11012-007 |
— | ||
|
9
|
9
92091-016 BOLT AIRCLEANER |
92091-016 |
US $4.52 |
||
|
10
|
10
322N0600 NUT-6MMNut-6mm; |
322N0600 |
from US $0.72 |
||
|
11
|
11
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
11
|
11
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
