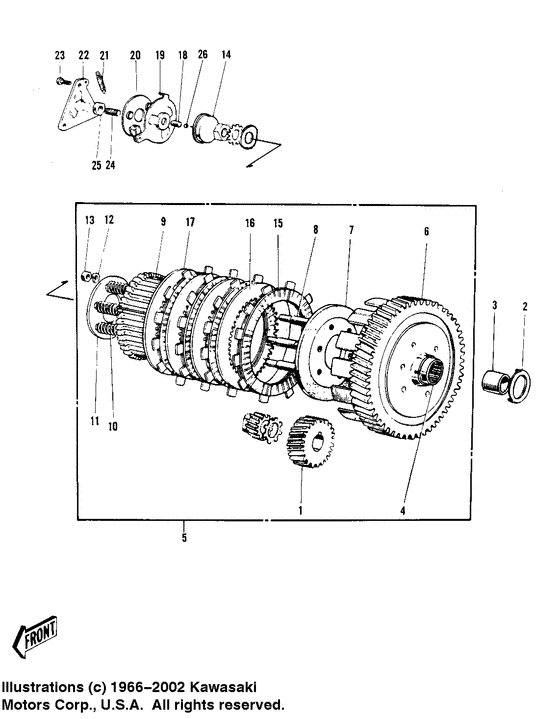

Clutch Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13121-005 PINION PRIMARY |
13121-005 |
US $127.82 |
||
|
2
|
2
92026-004 THRUST WASHER 5MM |
92026-004 |
US $8.69 |
||
|
3
|
3
13125-002 BUSH CLUTCH |
13125-002 |
US $9.25 |
||
|
4
|
4
92046-012 BEARING CLUTCH NEEDLE |
92046-012 |
US $13.19 |
||
|
5
|
5
13081-017 CLUTCH-ASSY |
13081-017 |
US $214.07 |
||
|
6
|
6
13096-003 HOUSING CLOTCH |
13096-003 |
US $91.19 |
||
|
7
|
7
13086-002 BASE CLUTCH |
13086-002 |
US $13.10 |
||
|
8
|
8
92006-001 STUD CLUTCH BASE |
92006-001 |
US $0.90 |
||
|
9
|
9
13087-003
Superceded
|
13087-003 |
— | ||
| replacement | |||||
|
9
|
9
13087-037 CLUTCH,HUB |
13087-037 |
from US $84.92 |
||
|
10
|
10
92081-019 SPRING CLUTCH |
92081-019 |
US $8.50 |
||
|
11
|
11
13091-001 PLATE CLUTCH SPRING |
13091-001 |
US $4.09 |
||
|
12
|
12
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
12
|
12
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
13
|
13
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
13
|
13
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
14
|
14
13113-002 PUSHER CLUTCH SPRING |
13113-002 |
from US $8.73 |
||
|
15
|
15
13088-1104 PLATE,FRICTIONPlate,friction; |
13088-1104 |
from US $17.35 |
||
|
16
|
16
13089-003 PLATE CLUTCH STEEL |
13089-003 |
from US $8.40 |
||
|
17
|
17
13090-002 PLATE CLUTCH OUTER |
13090-002 |
US $5.45 |
||
|
18
|
18
610A0710
PIN DOWEL 7X10
|
610A0710 |
— | ||
|
19
|
19
13102-003 PLATE ASSY CLTH RELSE |
13102-003 |
US $21.76 |
||
|
20
|
20
13110-003
THRUST BALL ASSY CLTH
|
13110-003 |
— | ||
|
21
|
21
92083-011
SPRING GEAR CHNG LEV
|
92083-011 |
— | ||
|
22
|
22
13119-003
PLATE CLTH RELESE CAM
|
13119-003 |
— | ||
|
23
|
23
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
23
|
23
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
23
|
23
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
24
|
24
291Z0622
SCREW SLOTTED
|
291Z0622 |
— | ||
|
25
|
25
312B0600 NUT-HEXNut 6mm; |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
25
|
25
312AA0600 NUT-HEXNut 6mm; |
312AA0600 |
from US $0.94 |
||
|
26
|
26
600A1000 BALL STEEL 5/16'Ball steel 5/16'; |
600A1000 |
from US $0.95 |
||
