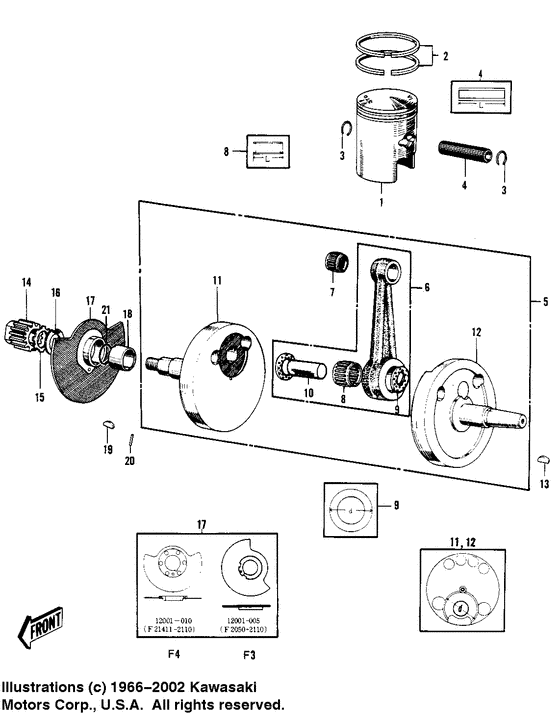

Crankshaft/piston/rotary valve Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13001-024 PISTON STD |
13001-024 |
US $71.91 |
||
|
2
|
2
13008-021 RING SET STD |
13008-021 |
US $88.51 |
||
|
3
|
3
92036-004 CIRCLIP, PISTON PINCirclip piston pin; |
92036-004 |
from US $0.83 |
||
|
4
|
4
13002-010
PIN-PISTON
|
13002-010 |
— | ||
|
5
|
5
13031-027 CRANK - CONROD ASSY |
13031-027 |
US $289.89 |
||
|
6
|
6
13044-004 CONNECTING ROD SET |
13044-004 |
from US $255.40 |
||
|
7
|
7
13033-011
New Genuine Part
|
13033-011 |
— | ||
| replacement | |||||
|
7
|
7
92046-1038
BEARING-NEEDLE
|
92046-1038 |
— | ||
|
8
|
8
13034-010 NEEDLE BEARING BG END |
13034-010 |
from US $23.49 |
||
|
9
|
9
92026-024
WASHER SIDE
|
92026-024 |
— | ||
|
10
|
10
13035-005 CRANK PIN |
13035-005 |
from US $28.84 |
||
|
11
|
11
13038-015 CRANKSHAFT R.H |
13038-015 |
US $99.95 |
||
|
12
|
12
13037-021 CRANKSHAFT L.H |
13037-021 |
US $99.95 |
||
|
13
|
13
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
14
|
14
16084-003 PINION OIL PUMP |
16084-003 |
US $58.21 |
||
|
15
|
15
464H1200 WASHER LOCK 12MMWasher lock 12mm; |
464H1200 |
US $3.04 |
||
| replacement | |||||
|
15
|
15
464EA1200 WASHER-LOCK,12MMWasher lock 12mm; |
464EA1200 |
from US $0.94 |
||
|
16
|
16
92024-002 WASHER LOCK 12MM |
92024-002 |
from US $2.95 |
||
|
17
|
17
12001-005 VALVE ROTARY DISC |
12001-005 |
US $36.72 |
||
|
18
|
18
92027-017 COLLAR CRANKSHAFT |
92027-017 |
US $51.34 |
||
|
19
|
19
92038-003 WOODRUFF KEY PRY PINIWoodruff key pry pini; |
92038-003 |
from US $3.17 |
||
|
20
|
20
610A0412 PIN DOWEL 4X12Pin dowel 4x12; |
610A0412 |
from US $7.04 |
||
|
21
|
21
92055-012 0 RING,18MM"0" ring,18mm; |
92055-012 |
from US $1.43 |
||
