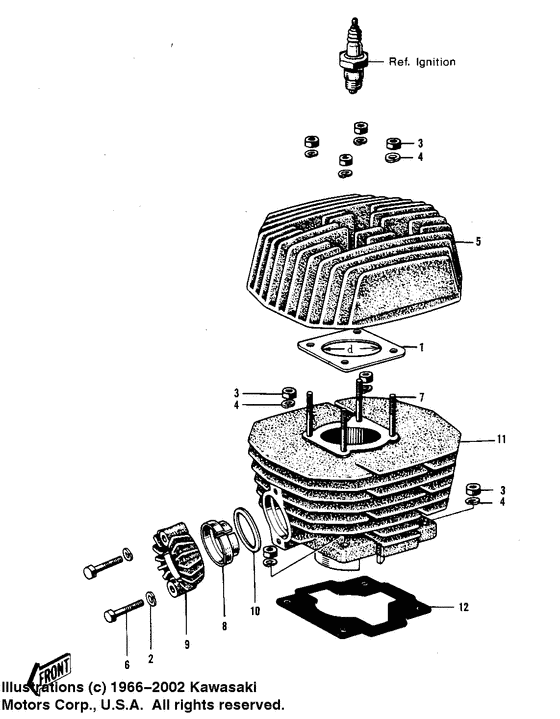

Cylinder head/cylinder Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11004-021 GASKET CYLINDER HEADId = 63 |
11004-021 |
US $17.84 |
||
|
2
|
2
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
2
|
2
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
3
|
3
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
3
|
3
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
3
|
3
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
4
|
4
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
4
|
4
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
5
|
5
11001-031 CYLINDER HEAD |
11001-031 |
US $56.14 |
||
|
6
|
6
112G0640
BOLT-UPSET,6X40
Bolt-upset,6x40; |
112G0640 |
— | ||
|
7
|
7
92004-003 STUD 8X40 |
92004-003 |
US $1.37 |
||
|
8
|
8
18070-001
INSERT EXH PIPE HOLD
|
18070-001 |
— | ||
|
9
|
9
18069-017 HOLDER EXHAUST PIPE |
18069-017 |
US $16.06 |
||
|
10
|
10
18067-008
GASKET,EXHAUST PIPE
|
18067-008 |
— | ||
| replacement | |||||
|
10
|
10
11060-1496 GASKET,EXHAUST PIPE |
11060-1496 |
from US $9.17 |
||
|
11
|
11
11005-041 CYLINDER |
11005-041 |
US $301.59 |
||
|
12
|
12
11009-012 GASKET CYLINDER BASE |
11009-012 |
US $3.31 |
||
