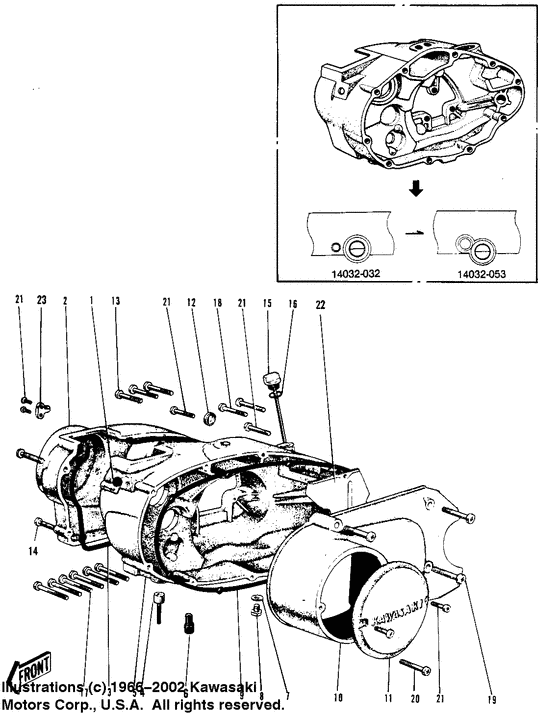

Engine covers Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14039001 CAP CARB MOUNT HOLECap carb mount hole; |
14039001 |
US $61.20 |
||
|
2
|
2
14030-063 COVER,CARBURETORCover,carburetor; |
14030-063 |
US $48.29 |
||
|
3
|
3
14047-003 GASKET CARBURETOR COV |
14047-003 |
US $9.83 |
||
|
4
|
4
16116-001 PIPE FUEL OVERFLOW |
16116-001 |
from US $5.47 |
||
|
5
|
5
14032-032A EQ PANT FLGRN/BU/GY32'68-'69, '70 |
14032-032A |
US $222.88 |
||
|
6
|
6
16116-004 DRAIN-OVERFLOWUse for 14032-053 |
16116-004 |
US $1.37 |
||
|
7
|
7
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
8
|
8
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
9
|
9
14046-005 GASKET R.H ENGINE COV |
14046-005 |
US $6.46 |
||
|
10
|
10
14031-022 COVER L.H ENGINE |
14031-022 |
US $70.72 |
||
|
11
|
11
14027-006 COVER CONTACT BREAKER |
14027-006 |
US $40.95 |
||
|
12
|
12
92049-002 OIL SEAL SB16244Oil seal sb16244; |
92049-002 |
from US $5.70 |
||
|
13
|
13
220B0635
SCREW-PAN-CROSS,6X35
Screw pan head 6x35; |
220B0635 |
— | ||
| replacement | |||||
|
13
|
13
220AA0635 SCREW-PAN-CROSS,6X35Screw pan head 6x35; |
220AA0635 |
from US $0.63 |
||
|
14
|
14
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
14
|
14
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
15
|
15
16115-003 PLUG OIL FILLER |
16115-003 |
from US $9.65 |
||
|
16
|
16
670B2020 0 RING,20MM"0" ring,20mm; |
670B2020 |
from US $1.68 |
||
|
17
|
17
220B0670
SCREW-PAN HEAD,6X70
Screw pan head 6x70; |
220B0670 |
— | ||
| replacement | |||||
|
17
|
17
220AA0670 SCREW-PAN HEAD,6X70Screw pan head 6x70; |
220AA0670 |
from US $1.24 |
||
|
18
|
18
220B0660 SCREW PAN HEAD 6X60Screw pan head 6x60; |
220B0660 |
from US $1.43 |
||
| replacement | |||||
|
18
|
18
220AA0660 SCREW-PAN HEAD,6X60Screw pan head 6x60; |
220AA0660 |
from US $1.24 |
||
|
19
|
19
220B0655
SCREW-PAN HEAD,6X55
|
220B0655 |
— | ||
| replacement | |||||
|
19
|
19
220AA0655 SCREW-PAN HEAD,6X55 |
220AA0655 |
from US $1.43 |
||
|
20
|
20
220B0650 SCREW-PAN HEAD,6X50Screw pan head 6x50; |
220B0650 |
from US $1.10 |
||
| replacement | |||||
|
20
|
20
220AA0650 SCREW-PAN HEAD,6X50Screw pan head 6x50; |
220AA0650 |
from US $1.24 |
||
|
21
|
21
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
21
|
21
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
22
|
22
14024-002
COVER DRV CHAIN BACK
|
14024-002 |
— | ||
|
23
|
23
14044-003 GUIDE OIL PUMP CABLE |
14044-003 |
US $10.64 |
||
