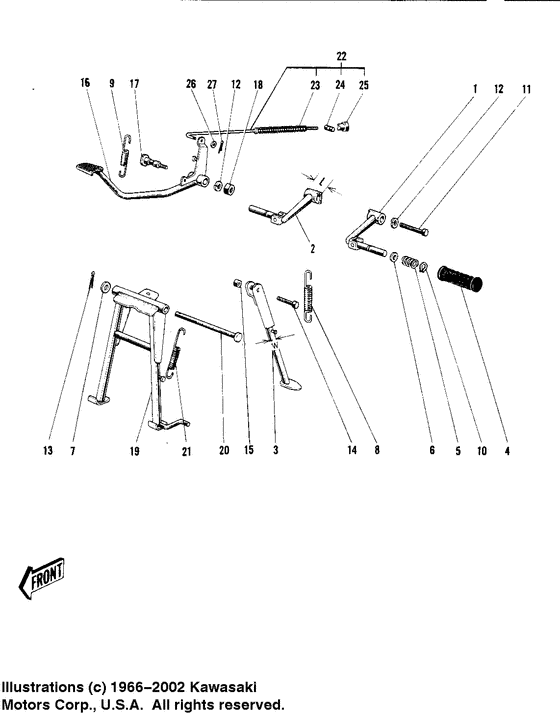

Footrests/stands/brake pedal Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34003-003 BAR FOOTREST L.H'69-'70 |
34003-003 |
US $18.13 |
||
|
2
|
2
34003-004 BAR FOOTREST R.H'68, '69-'70 |
34003-004 |
US $18.13 |
||
|
3
|
3
34024-017 STAND-SIDE |
34024-017 |
US $26.51 |
||
|
4
|
4
92076-010
RUBBER FOOTREST
'68, '69-'70 |
92076-010 |
— | ||
|
5
|
5
34006-002
SPRING FOOTREST PEG
|
34006-002 |
— | ||
|
6
|
6
92022-049
WASHER FOLDING PEG
|
92022-049 |
— | ||
|
7
|
7
92022-085 WASHER BRAKE PEDALWasher brake pedal; |
92022-085 |
from US $3 |
||
|
8
|
8
34025-001
SPRING,SIDE STAND
Spring,side stand; |
34025-001 |
— | ||
|
9
|
9
43005-005
SPRING BRAKE PEDAL
|
43005-005 |
— | ||
|
10
|
10
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
11
|
11
113G1240 BOLT HEX HEAD 12X40Use for 34003-003,004 ('68), use for 34003-003,004 ('68), use for 34003-012,014 '69-'70, use for 34003-012,014 '69-'70 |
113G1240 |
US $7.07 |
||
|
12
|
12
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
12
|
12
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
13
|
13
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
13
|
13
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
|
14
|
14
112G1030
BOLT-UPSET,10X30
Bolt-upset,10x30; |
112G1030 |
— | ||
|
15
|
15
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
15
|
15
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
16
|
16
43001-022 PEDAL BRAKE |
43001-022 |
US $19.64 |
||
|
17
|
17
43004-008 SHAFT BRAKE PEDAL |
43004-008 |
US $6.91 |
||
|
18
|
18
314G1200A NUT,12MMNut,12mm; I.s.o. |
314G1200A |
US $2.21 |
||
| replacement | |||||
|
18
|
18
314BA1200 NUT-HEX-FINENut,12mm; I.s.o. |
314BA1200 |
from US $1.24 |
||
|
19
|
19
34011-025 STAND-MAIN'68, '69-'70 |
34011-025 |
US $43.56 |
||
|
20
|
20
34019-008 SHAFT MAIN STAND |
34019-008 |
from US $12.01 |
||
|
21
|
21
34023-005 SPRING MAIN STAND'68, '69-'70 |
34023-005 |
from US $8.31 |
||
|
22
|
22
43010-5003
BRAKE ROD ASSY
'68, '69-'70 |
43010-5003 |
— | ||
| replacements | |||||
|
22
|
22
92043-0147 PIN,BRAKE ROD'68, '69-'70 |
92043-0147 |
from US $3.17 |
||
|
22
|
22
43011-019 ROD-BRAKE'68, '69-'70 |
43011-019 |
US $4 |
||
|
22
|
22
43012001 SPRING,BRAKE ROD'68, '69-'70 |
43012001 |
from US $3.33 |
||
|
22
|
22
92015-042 NUT-BRAKE ROD ADJUST'68, '69-'70 |
92015-042 |
from US $3.48 |
||
|
23
|
23
43008-001 SPRING RR BRKE TORQUE |
43008-001 |
US $0.29 |
||
|
24
|
24
92043-039
PIN,BRAKE ROD
Pin brake; |
92043-039 |
— | ||
| replacement | |||||
|
24
|
24
92043-0147 PIN,BRAKE RODPin brake; |
92043-0147 |
from US $3.17 |
||
|
25
|
25
92015-042 NUT-BRAKE ROD ADJUSTNut-brake rod adjust; |
92015-042 |
from US $3.48 |
||
|
26
|
26
410B0500
W-PLAIN-S
Washer plain 5mm; |
410B0500 |
— | ||
| replacement | |||||
|
26
|
26
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
27
|
27
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
27
|
27
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
