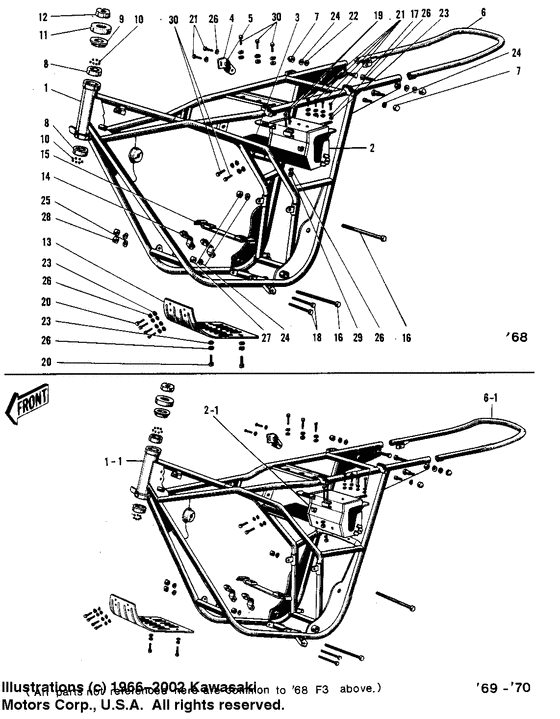

Frame/frame fittings Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32002-029 FRAME68 |
32002-029 |
US $316.80 |
||
|
2
|
2
32097-005 CASE BATTERYFor 32002-029 |
32097-005 |
US $30.49 |
||
|
3
|
3
32103-005 MAT BATTERY |
32103-005 |
US $1.21 |
||
|
4
|
4
31082-002 PROTECTOR BATTERY |
31082-002 |
US $2.77 |
||
|
5
|
5
32100-005
BAND BATTERY
|
32100-005 |
— | ||
|
6
|
6
35032-004 STAY REAR FENDER68 |
35032-004 |
US $21.08 |
||
|
7
|
7
92020-003 NUT SHOCK ABSORBERNut shock absorber; |
92020-003 |
from US $3.80 |
||
|
8
|
8
92048-005 RACE STEERING BEARINGRace steering bearing; |
92048-005 |
from US $10.77 |
||
|
9
|
9
92047-003
CONE STERNG BERG UPP
Upper |
92047-003 |
— | ||
|
10
|
10
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
11
|
11
46098-002
New Genuine Part
|
46098-002 |
— | ||
| replacement | |||||
|
11
|
11
46098-005
CAP STEERING STEM
|
46098-005 |
— | ||
|
12
|
12
92090-006 NUT STEERING STEM LCK |
92090-006 |
from US $10.67 |
||
|
13
|
13
55011-006 GUARD ENGINE |
55011-006 |
US $20.43 |
||
|
14
|
14
55016-001 BRACKET ENG GUARD FRT |
55016-001 |
US $2.32 |
||
|
15
|
15
55016-002 BRACKET ENG GUARD RR |
55016-002 |
US $4.32 |
||
|
16
|
16
92001-1248
BOLT,HEX HEAD,10X125
Bolt,hex head,10x125; |
92001-1248 |
— | ||
|
17
|
17
113G1045 BOLT-SMALL-FINE,10X45Bolt-small-fine,10x45; |
113G1045 |
US $3.71 |
||
|
18
|
18
92001-1398 BOLT FLANGED 8X55 |
92001-1398 |
US $3.55 |
||
|
19
|
19
110R0635 BOLT 6X35Bolt 6x35; |
110R0635 |
from US $1.58 |
||
|
20
|
20
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
20
|
20
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
21
|
21
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
21
|
21
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.95 |
||
|
22
|
22
410B1000
W-PLAIN-S
Washer plain 10mm; |
410B1000 |
— | ||
| replacement | |||||
|
22
|
22
410AA1000 W-PLAIN-SWasher plain 10mm; |
410AA1000 |
from US $0.81 |
||
|
23
|
23
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
23
|
23
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
24
|
24
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
24
|
24
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
25
|
25
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
25
|
25
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
26
|
26
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
26
|
26
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
27
|
27
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
27
|
27
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
28
|
28
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
28
|
28
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
28
|
28
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
29
|
29
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
29
|
29
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
30
|
30
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
30
|
30
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
