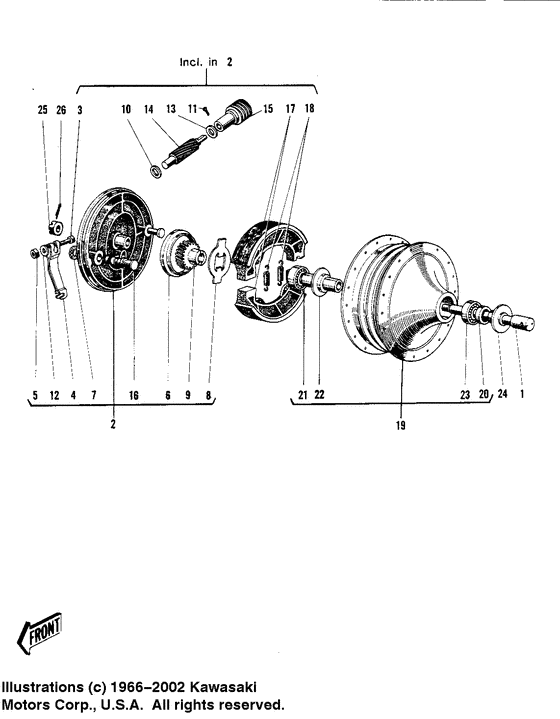

Front hub/brake Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41068-008 AXLE FRONTL=201 mm |
41068-008 |
US $27.88 |
||
|
2
|
2
41035-019 PANEL-ASY,FR BRKPanel-asy,fr brk; |
41035-019 |
US $138.10 |
||
|
3
|
3
110R0635 BOLT 6X35.bolt 6x35; |
110R0635 |
from US $1.58 |
||
|
4
|
4
41053-003 LEVER FRONT BRAKE CAM |
41053-003 |
from US $21.93 |
||
|
5
|
5
311B0600
NUT-HEX,6MM
.nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
5
|
5
311AA0600 NUT-HEX,6MM.nut 6mm; |
311AA0600 |
from US $0.63 |
||
|
6
|
6
92050-010 OIL SEAL F BRK PANEL.oil seal f brk panel; |
92050-010 |
from US $11.51 |
||
|
7
|
7
41051001 DUST SHIELD BRAKE CAM.dust shield brake cam; |
41051001 |
from US $3.17 |
||
|
8
|
8
41064-003 RECIEVER GEAR.reciever gear; |
41064-003 |
from US $5.80 |
||
|
9
|
9
41059-008 GEAR SPEEDOMETER |
41059-008 |
US $16.09 |
||
|
10
|
10
41063001 WASHER THRST SPD PINI.washer thrst spd pini; O.d.= 9 mm |
41063001 |
from US $3.17 |
||
|
11
|
11
41070-001 SCREW BUSHING SET.screw bushing set; White-plated, i.s.o., yellow-plated |
41070-001 |
US $0.29 |
||
|
12
|
12
410B0600
WASHER-PLAIN-SMALL
.washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
12
|
12
410AA0600 WASHER-PLAIN-SMALL.washer plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
13
|
13
41063-004 WASHER THRUSTO.d.= 13 mm |
41063-004 |
from US $3.62 |
||
|
14
|
14
41060-008 PINION SPEEDOMETER |
41060-008 |
US $9.72 |
||
|
15
|
15
41062-004 BUSH-SPEEDMETER CABLE |
41062-004 |
US $11.07 |
||
|
16
|
16
42026-021 CAM SHAFT,REAR BRAKE.cam shaft,rear brake; |
42026-021 |
from US $18.68 |
||
|
17
|
17
92081-1766 SPRING,BRAKE SHOE.spring,brake shoe; |
92081-1766 |
from US $5.39 |
||
|
18
|
18
42020-004 SPRING-BRAKE SHOE.spring-brake shoe; |
42020-004 |
from US $6.18 |
||
|
19
|
19
41034-048-80 DRUM-ASSY,FR BRK,BUFFDrum-assy,fr brk,buff; |
41034-048-80 |
US $302.47 |
||
|
20
|
20
92050-008 OIL SEAL RR BRK DRUM.oil seal rr brk drum; |
92050-008 |
from US $9.49 |
||
|
21
|
21
601B6202Z
BEARING BALL #6202Z
.bearing ball #6202z; |
601B6202Z |
— | ||
|
22
|
22
41039-004 SPACER FR HUB BEARING.spacer fr hub bearing; |
41039-004 |
from US $7.93 |
||
|
23
|
23
601B6202 BEARING BALL #6202.bearing ball #6202; |
601B6202 |
from US $10.03 |
||
|
24
|
24
41069-004 COLLAR FRONT HUB R.H |
41069-004 |
US $5.54 |
||
|
25
|
25
321B1400 NUT CASTLE 14MM |
321B1400 |
US $24.05 |
||
|
26
|
26
550D3035 PIN-COTTER,3.0X35Pin cotter 3.0x35; |
550D3035 |
from US $1.27 |
||
| replacement | |||||
|
26
|
26
550AA3035 PIN-COTTER,3.0X35Pin cotter 3.0x35; |
550AA3035 |
from US $0.95 |
||
