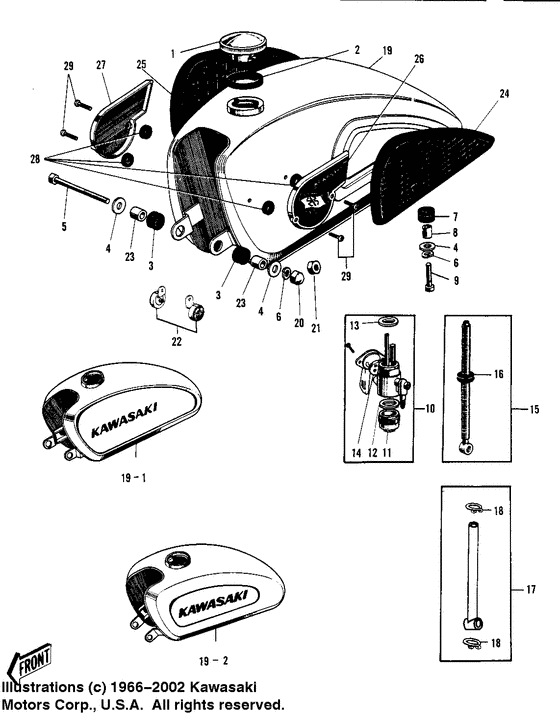

Fuel tank Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51048-006 CAP,FUEL TANK LOCKINGCap,fuel tank locking; |
51048-006 |
from US $7.95 |
||
|
2
|
2
51049-003
New Genuine Part
|
51049-003 |
— | ||
|
3
|
3
92075-019
DAMPER RUBB TANK FRNT
L=8 mm |
92075-019 |
— | ||
|
4
|
4
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
5
|
5
116B08110
New Genuine Part
|
116B08110 |
— | ||
|
6
|
6
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
6
|
6
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
7
|
7
92075-030
DAMPER RUBB TANK REAR
|
92075-030 |
— | ||
|
8
|
8
92027-034 SPACER FUEL TANK REARSpacer fuel tank rear; |
92027-034 |
from US $3.11 |
||
|
9
|
9
116B0835 BOLT HEX HEAD 8X35 |
116B0835 |
US $2.90 |
||
| replacement | |||||
|
9
|
9
92001-1577 BOLT,FLANGED,8X35 |
92001-1577 |
US $3.96 |
||
|
10
|
10
51023-044
COCK ASSY,FUEL
Cock assy,fuel; |
51023-044 |
— | ||
|
11
|
11
51036-003
CUP FUEL COCK
|
51036-003 |
— | ||
|
12
|
12
51037-007
GASKET FUEL COCK CUP
|
51037-007 |
— | ||
|
13
|
13
51032-001
GASKET FUEL COCK JONT
|
51032-001 |
— | ||
|
14
|
14
92065-019
GASKET FUEL COCK LEV
|
92065-019 |
— | ||
|
15
|
15
51044-031
PIPE-FUEL
'68, '69 |
51044-031 |
— | ||
|
16
|
16
92071-038 GROMMET PIPE.grommet pipe; |
92071-038 |
from US $2.88 |
||
|
17
|
17
51044-031
PIPE-FUEL
'70 |
51044-031 |
— | ||
|
18
|
18
92037-010 CLAMP FUEL PIPE.clamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
19
|
19
51001-019-14 TANK FUEL SILVER'68 |
51001-019-14 |
US $95.40 |
||
|
20
|
20
92020-007 NUT FUEL TANK FRONT |
92020-007 |
US $4.52 |
||
|
21
|
21
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
21
|
21
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
21
|
21
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
22
|
22
28001-004
REFLECTOR REFLEX
|
28001-004 |
— | ||
|
23
|
23
51065-001
SPACER FUEL TANK MONT
|
51065-001 |
— | ||
|
24
|
24
51061-005
GRIP KNEE L.H
|
51061-005 |
— | ||
|
25
|
25
51062-004
GRIP KNEE R.H
|
51062-004 |
— | ||
|
26
|
26
56013-006
EMBLEM FUEL TANK L.H
For ref. 19 |
56013-006 |
— | ||
|
27
|
27
56014-007
EMBLEM FUEL TANK R.H
|
56014-007 |
— | ||
|
28
|
28
56025-002 SPACER FL TANK EMBLEM |
56025-002 |
US $0.29 |
||
|
29
|
29
220E0408 SCREW PAN HEAD 4X8Screw pan head 4x8; |
220E0408 |
from US $0.95 |
||
