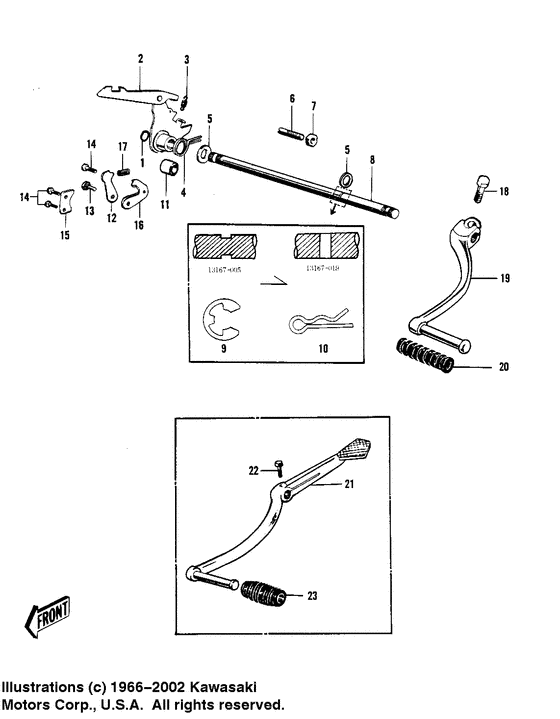

Gear change mechanism Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92033-002 CIRCLIP 10MMN/r for 13161-037 |
92033-002 |
from US $3.27 |
||
|
2
|
2
13161-5002 LEVER-COMP-CHANGE |
13161-5002 |
US $44.06 |
||
|
3
|
3
92083-011
SPRING GEAR CHNG LEV
|
92083-011 |
— | ||
|
4
|
4
92081-1129 SPRING,TENTIONSpring,tention; |
92081-1129 |
from US $6.34 |
||
|
5
|
5
92022-003 WASHER,12.5X24X1.2? for 13161-037 |
92022-003 |
US $1.84 |
||
| replacement | |||||
|
5
|
5
92022-107 WASHER,12.5X24X1.2? for 13161-037 |
92022-107 |
from US $1.90 |
||
|
6
|
6
92001-1401
BOLT,EXCLUSIVE MASS P
Bolt,return spring; |
92001-1401 |
— | ||
| replacement | |||||
|
6
|
6
92001-1455 BOLT,EXCLUSIVE MASS PBolt,return spring; |
92001-1455 |
from US $2.85 |
||
|
7
|
7
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
7
|
7
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
8
|
8
13167-005
New Genuine Part
|
13167-005 |
— | ||
| replacement | |||||
|
8
|
8
13161-037 LEVER ASSY,GEAR CHANG |
13161-037 |
US $89.14 |
||
|
9
|
9
482J0100 CIRCLIP 10MMCirclip 10mm; For 13167-005 |
482J0100 |
from US $1.11 |
||
|
10
|
10
92041-004 COTTER PINFor 13167-019 |
92041-004 |
US $3.47 |
||
|
11
|
11
92027-121 COLLAR,12X18X11.5For 13161-037 |
92027-121 |
US $10.22 |
||
| replacement | |||||
|
11
|
11
92152-0582 COLLAR,12X18X11.5For 13161-037 |
92152-0582 |
from US $4.05 |
||
|
12
|
12
13168-003 LEVER GEAR CHNG DRUM |
13168-003 |
US $4.77 |
||
|
13
|
13
92011-001 SCREW CHANGE DRUM LEV |
92011-001 |
US $0.29 |
||
|
14
|
14
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
14
|
14
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
15
|
15
13169-001 PLATE DRUM LEV POSTON |
13169-001 |
from US $4.99 |
||
|
16
|
16
13170-003 PLATE CHANGE DRUM LEV |
13170-003 |
from US $2.14 |
||
|
17
|
17
92081-004 SPRINGSpring,chng drum levr; |
92081-004 |
US $1.94 |
||
| replacement | |||||
|
17
|
17
92145-1434 SPRINGSpring,chng drum levr; |
92145-1434 |
from US $1.40 |
||
|
18
|
18
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
18
|
18
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
19
|
19
13156-019
PEDAL GEAR CHANGE
|
13156-019 |
— | ||
|
20
|
20
13157004 DAMPER,CHANGE PEDALRubber change pedal; L = 44 mm |
13157004 |
US $3.48 |
||
| replacement | |||||
|
20
|
20
92161-1532 DAMPER,CHANGE PEDALRubber change pedal; L = 44 mm |
92161-1532 |
from US $4.87 |
||
|
21
|
21
13156-012
PEDAL GEAR CHANGE
'68 model optional for '69-'70 |
13156-012 |
— | ||
|
22
|
22
112G0625
BOLT-UPSET,6X25
'68 model optional for '69-'70 |
112G0625 |
— | ||
| replacement | |||||
|
22
|
22
112BA0625 BOLT-UPSET,6X25'68 model optional for '69-'70 |
112BA0625 |
from US $1.07 |
||
|
23
|
23
13157-002
RUBBER CHANGE PEDAL A
'68 model optional for '69-'70 |
13157-002 |
— | ||
