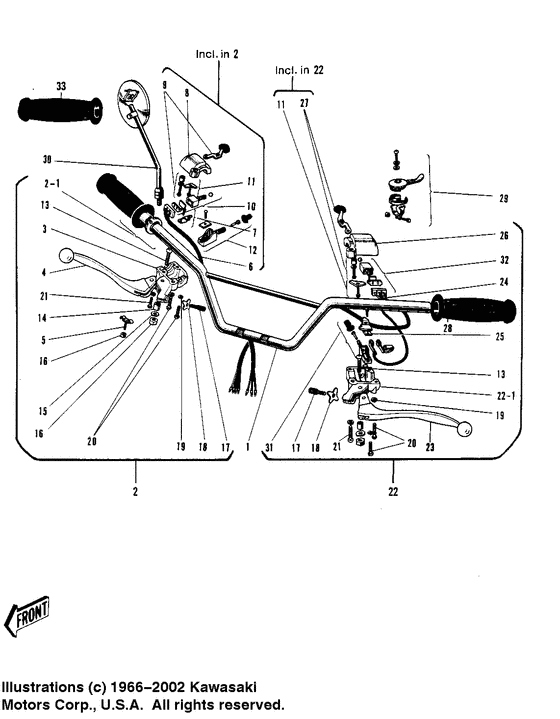

Handlebar Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46004-022
HANDLEBAR
|
46004-022 |
— | ||
|
2
|
2
46019-008 GRIP THROTTLE |
46019-008 |
US $40.37 |
||
|
3
|
3
46022-009 CASE R.H SWITCH LOWER |
46022-009 |
US $9.95 |
||
|
4
|
4
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
5
|
5
46024-002
SPRING THROTTLE GRIP
|
46024-002 |
— | ||
|
6
|
6
46032-012 WIRING HARNESS R.H SW |
46032-012 |
US $17.42 |
||
|
7
|
7
46037-009
HOLDER R.H SWITCH
|
46037-009 |
— | ||
|
8
|
8
46017-1071 GRIP-ASSY,RHGrip-assy,rh; |
46017-1071 |
US $86.94 |
||
|
9
|
9
46043-002
KNOB ASSY R.H SWITCH
|
46043-002 |
— | ||
|
10
|
10
46045-004
SLIDE BLOCK AY R.H SW
|
46045-004 |
— | ||
|
11
|
11
46058-012 LEVER FRONT BRAKE |
46058-012 |
US $18.68 |
||
|
12
|
12
46027-005 SWITCH R.H PUSH BUTTNStarter |
46027-005 |
US $6.39 |
||
|
14
|
14
46059-011
COLLAR LEVER
|
46059-011 |
— | ||
|
15
|
15
464H0500
Washer-lock,5mm
|
464H0500 |
— | ||
| replacement | |||||
|
15
|
15
464EA0500
Washer-toothed
|
464EA0500 |
— | ||
|
16
|
16
312B0500
NUT-HEX
Nut 5mm; |
312B0500 |
— | ||
| replacement | |||||
|
16
|
16
312AA0500 NUT-HEXNut 5mm; |
312AA0500 |
from US $0.78 |
||
|
17
|
17
46055010 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055010 |
from US $17.88 |
||
|
18
|
18
46056-001
NUT,CABLE ADJUST LOCK
|
46056-001 |
— | ||
| replacement | |||||
|
18
|
18
92210-1131
NUT,CABLE ADJUST LOCK
|
92210-1131 |
— | ||
|
19
|
19
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
19
|
19
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
20
|
20
220B0520
SCREW PAN HEAD 5X20
Screw pan head 5x20; |
220B0520 |
— | ||
| replacement | |||||
|
20
|
20
220AA0520 SCREW-PAN-CROSScrew pan head 5x20; |
220AA0520 |
from US $0.78 |
||
|
21
|
21
220B0518 SCREW-PAN-CROSScrew pan head 5x18; |
220B0518 |
from US $0.79 |
||
| replacement | |||||
|
21
|
21
220AA0518 SCREW-PAN-CROSScrew pan head 5x18; |
220AA0518 |
from US $0.94 |
||
|
22
|
22
46074-036
GRIP ASSY L.H
|
46074-036 |
— | ||
|
23
|
23
46092015 LEVER-CLUTCHLever-clutch; |
46092015 |
from US $20.45 |
||
|
24
|
24
26082-011
New Genuine Part
|
26082-011 |
— | ||
|
25
|
25
46058-008 LEVER FRONT BRAKE |
46058-008 |
US $8.10 |
||
|
26
|
26
46086-007
CASE L.H SWITCH UPPER
|
46086-007 |
— | ||
|
27
|
27
46088-001 KNOB ASSY L.H SWITCH |
46088-001 |
US $8.62 |
||
|
28
|
28
46075-010
RUBBER L.H GRIP
|
46075-010 |
— | ||
|
29
|
29
46109-012
LEVER ASSY,STARTER
Lever assy,starter; |
46109-012 |
— | ||
|
30
|
30
56002-011
REAR VIEW MIRROR
Rear view mirror assy(whn exh use 56001-005); |
56002-011 |
— | ||
| replacements | |||||
|
30
|
30
56003-016
REAR VIEW MIRROR LH
Rear view mirror assy(whn exh use 56001-005); |
56003-016 |
— | ||
|
30
|
30
56001-005
REAR VIEW MIRROR
Rear view mirror assy(whn exh use 56001-005); |
56001-005 |
— | ||
|
31
|
31
46078-003 SWITCH ASSY,HORN BUTN |
46078-003 |
US $7.49 |
||
| replacement | |||||
|
31
|
31
27010-1009 SWITCH ASSY,HORN BUTN |
27010-1009 |
from US $6.49 |
||
|
32
|
32
46089-002 SLIDE BLOCK AY L.H SWBlock assy. l.h. switch slide; |
46089-002 |
US $10.91 |
||
|
33
|
33
46061-010
RUBBER R.H GRIP
|
46061-010 |
— | ||
