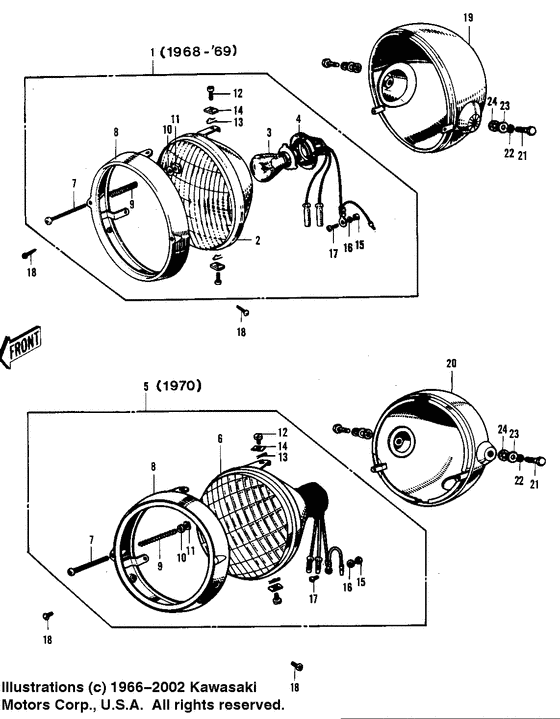

Headlight Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23004-021 LAMP UNIT HEAD'68-'69model |
23004-021 |
US $52.63 |
||
|
2
|
2
23007-011 LENS UNIT HEAD LAMP'68-'69model |
23007-011 |
US $24.30 |
||
|
3
|
3
92069-037 BULB 12V 35/25W'68-'69model |
92069-037 |
US $13.03 |
||
|
4
|
4
23008-011
SOCKET HEAD LAMP
'68-'69model |
23008-011 |
— | ||
|
5
|
5
23003-010 LAMP UNIT HEAD'70 model |
23003-010 |
US $56.12 |
||
|
6
|
6
23007-026 SEALED BEAM UNIT'70 model |
23007-026 |
US $64.15 |
||
|
7
|
7
23019-017 SCREW FOCUS ADJUSTI.s.o. |
23019-017 |
US $1.12 |
||
|
8
|
8
23006-014
RIM HEAD LAMP
|
23006-014 |
— | ||
|
9
|
9
23014005 SPRING FOCUS ADJUSTSpring focus adjust; |
23014005 |
from US $3.01 |
||
|
10
|
10
23021004 WASHER |
23021004 |
from US $3.48 |
||
|
11
|
11
23020-010 NUTI.s.o. |
23020-010 |
US $0.07 |
||
|
12
|
12
23019-018
SCREW LENS UNIT FITT
|
23019-018 |
— | ||
|
13
|
13
23022-001 PIN LENS UNIT FITTING |
23022-001 |
US $2.93 |
||
|
14
|
14
23020-009 NUT LENS UNIT FITTING |
23020-009 |
US $3.15 |
||
|
15
|
15
311B0300 NUT-HEX |
311B0300 |
from US $0.16 |
||
| replacement | |||||
|
15
|
15
311AA0300 NUT-HEX |
311AA0300 |
from US $0.73 |
||
|
16
|
16
461F0300
WASHER SPRING 3MM
Washer spring 3mm; |
461F0300 |
— | ||
| replacement | |||||
|
16
|
16
461DA0300 WASHER-SPRINGWasher spring 3mm; |
461DA0300 |
from US $0.78 |
||
|
17
|
17
220B0306
SCREW-PAN-CROS,3X6
Screw-pan-head 3x6; |
220B0306 |
— | ||
| replacement | |||||
|
17
|
17
220AA0306 SCREW-PAN-CROS,3X6Screw-pan-head 3x6; |
220AA0306 |
from US $0.78 |
||
|
18
|
18
222E0508A SCREW OVL CNTSNK 5X8 |
222E0508A |
from US $0.72 |
||
| replacement | |||||
|
18
|
18
222E0508 SCREW OVL CNTSNK 5X8 |
222E0508 |
US $0.72 |
||
|
19
|
19
23005-022-21
BODY-HEAD LAMP,BLACK
Body-head lamp,black; '68-'69 |
23005-022-21 |
— | ||
|
20
|
20
23005-022-15
New Genuine Part
'70 |
23005-022-15 |
— | ||
| replacement | |||||
|
20
|
20
23005-022-21
BODY-HEAD LAMP,BLACK
'70 |
23005-022-21 |
— | ||
|
21
|
21
92007-045
BOLT,HEX HEAD,10X25
Bolt,hex head,10x25; |
92007-045 |
— | ||
|
22
|
22
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
22
|
22
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
23
|
23
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
23
|
23
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
24
|
24
463H1000 WASHER LOCK 10MM |
463H1000 |
from US $0.34 |
||
