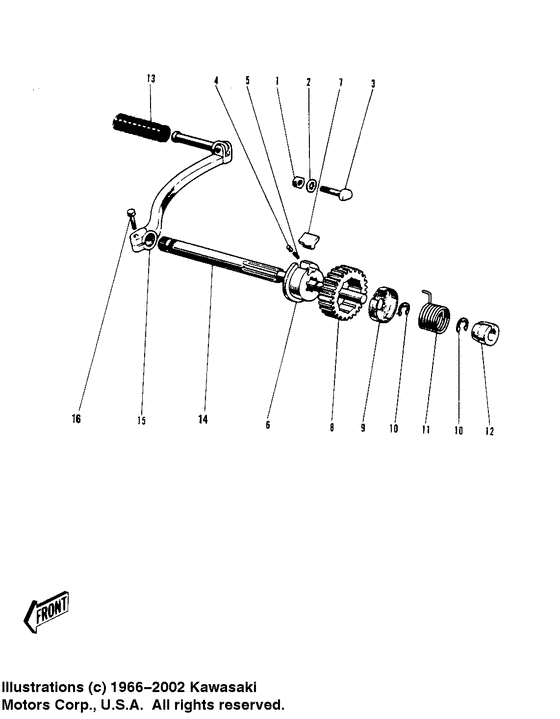

Kickstarter mechanism Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
1
|
1
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
2
|
2
463H0800 WASHER-LOCK,8MM |
463H0800 |
US $1.37 |
||
| replacement | |||||
|
2
|
2
463EA0800 WASHER-LOCK,8MM |
463EA0800 |
from US $0.78 |
||
|
3
|
3
13072-004 STOPPER KICKSTARTER |
13072-004 |
US $11.57 |
||
|
4
|
4
92042-001 PIN KICKSTARTER PAWL |
92042-001 |
US $2.21 |
||
|
5
|
5
92081-001 SPRING CLUTCH |
92081-001 |
US $0.90 |
||
|
6
|
6
13067-003 DRUM KICKSTARTER |
13067-003 |
US $77.96 |
||
|
7
|
7
13069-003 PAWL KICKSTARTER |
13069-003 |
from US $10.39 |
||
|
8
|
8
13068-004 GEAR KICKSTARTER |
13068-004 |
from US $47.18 |
||
|
9
|
9
13071-003 PLATE KICK GEAR HLDER |
13071-003 |
from US $1.91 |
||
|
10
|
10
482J0100 CIRCLIP 10MMCirclip 10mm; |
482J0100 |
from US $1.11 |
||
|
11
|
11
92082-002 SPRING KICKSTARTER |
92082-002 |
from US $13.06 |
||
|
12
|
12
13070-001 GUIDE KICK SPRING |
13070-001 |
from US $9.97 |
||
|
13
|
13
13063004 RUBBER KICK PEDALRubber kick pedal; |
13063004 |
from US $7.76 |
||
| replacement | |||||
|
13
|
13
92161-2388 RUBBER KICK PEDALRubber kick pedal; |
92161-2388 |
from US $9.17 |
||
|
14
|
14
13066-1007
SHAFT,KICKSTARTER
Shaft,kickstarter; |
13066-1007 |
— | ||
|
15
|
15
13062-002
New Genuine Part
|
13062-002 |
— | ||
| replacement | |||||
|
15
|
15
13058-009 PEDAL-KICKSTARTER |
13058-009 |
US $87.03 |
||
|
16
|
16
115G0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115G0825 |
US $1.43 |
||
| replacement | |||||
|
16
|
16
115BA0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115BA0825 |
from US $1.11 |
||
