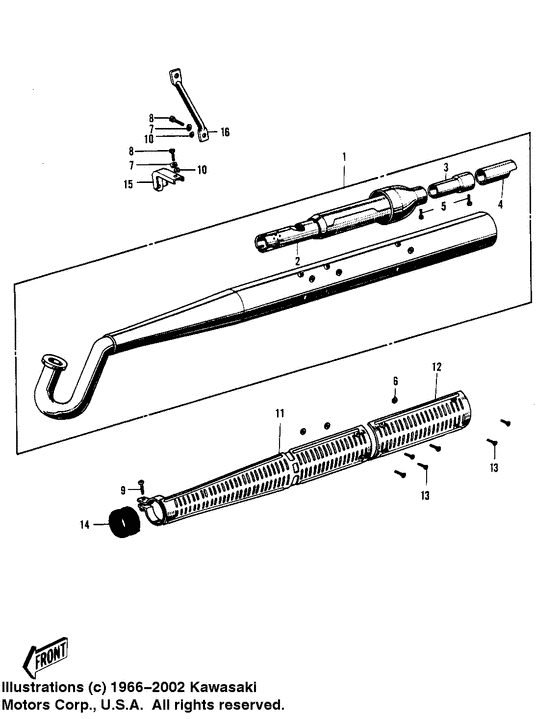

Muffler Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18002-027 MUFFLER ASSY |
18002-027 |
US $183.78 |
||
|
2
|
2
18033-018 SPARK ARRESTOR COMP |
18033-018 |
US $28.30 |
||
|
3
|
3
18033-039 BAFFLE TUBE |
18033-039 |
US $72.59 |
||
|
4
|
4
18048-006
TAIL PIECE
|
18048-006 |
— | ||
|
5
|
5
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
5
|
5
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
6
|
6
18065-001
INSULATOR
|
18065-001 |
— | ||
|
7
|
7
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
7
|
7
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
8
|
8
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; |
115G0816 |
— | ||
| replacement | |||||
|
8
|
8
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; |
115BA0816 |
from US $0.86 |
||
|
9
|
9
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
9
|
9
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
10
|
10
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
10
|
10
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
11
|
11
18057-011
COVER MUFFLER FRONT
|
18057-011 |
— | ||
|
12
|
12
18057-019
COVER MUFFLER REAR
|
18057-019 |
— | ||
|
13
|
13
221E0610 SCREW PAN HEAD 6X10 |
221E0610 |
US $2.93 |
||
|
14
|
14
18061-014
SPACER MUFFLER COVER
|
18061-014 |
— | ||
|
15
|
15
18061-015 BRACKET MUFFLER FRONT |
18061-015 |
US $3.06 |
||
|
16
|
16
18061-016 BRACKET MUFFLER REAR |
18061-016 |
US $6.16 |
||
