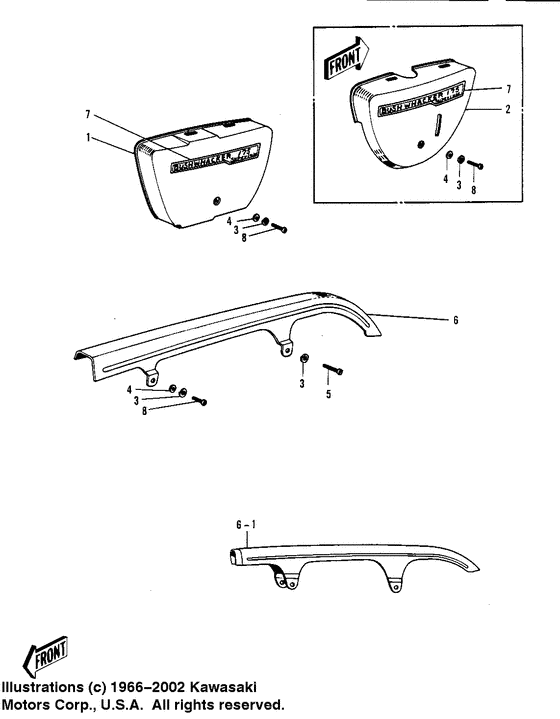

Side covers/chain cover Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36001-019-14
COVER L.H SIDE SILVER
|
36001-019-14 |
— | ||
|
2
|
2
36007-020-1W COVER,RH SIDE,SILVERCover,rh side,silver; |
36007-020-1W |
US $54.47 |
||
|
3
|
3
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
3
|
3
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
4
|
4
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
4
|
4
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
5
|
5
220E0616 SCREW PAN HEAD 6X16 |
220E0616 |
from US $1.09 |
||
|
6
|
6
36014-018 CASE-CHAIN |
36014-018 |
US $30.83 |
||
|
7
|
7
56018-008
EMBLEM SIDE COVER
|
56018-008 |
— | ||
|
8
|
8
220E0610
SCREW PAN HEAD 6X10
|
220E0610 |
— | ||
