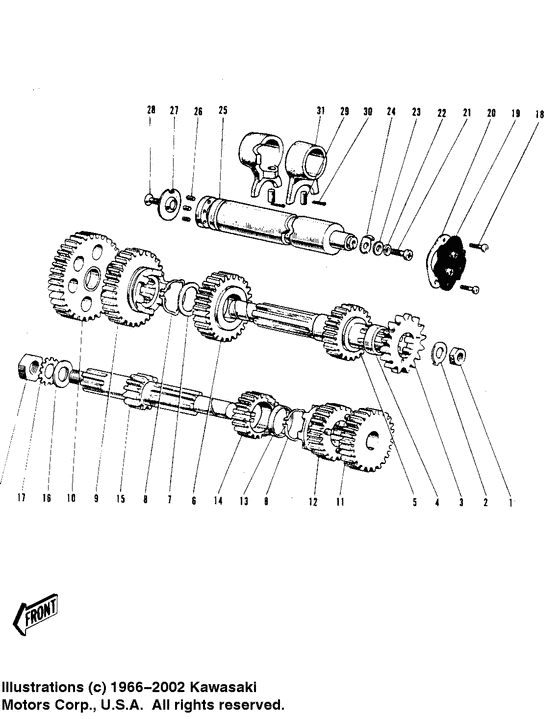

Transmission/change drum Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92016-024 NUT,12MMNut,12mm; |
92016-024 |
from US $3.11 |
||
|
2
|
2
92024-002 WASHER LOCK 12MM |
92024-002 |
from US $2.95 |
||
|
3
|
3
13144-016 ENGINE SPROCKET 16TStd, option |
13144-016 |
US $57.47 |
||
|
4
|
4
92027-009 SPACER ENG SPROCKET |
92027-009 |
US $3.40 |
||
| replacement | |||||
|
4
|
4
92027-1595 COLLAR,ENG SPROCKET |
92027-1595 |
from US $10.43 |
||
|
5
|
5
13128-014 SHAFT OUTPUT27t |
13128-014 |
US $70.72 |
||
|
6
|
6
13133-002 3RD GEAR OUTPUT SHAFT30t |
13133-002 |
US $89.14 |
||
|
7
|
7
92022-106 WASHER 22MM |
92022-106 |
US $2.79 |
||
|
8
|
8
92033-025 CIRCLIP,25MMCirclip,25mm; |
92033-025 |
from US $3.73 |
||
|
9
|
9
13260-1076 GEAR-2ND OUTPUT SHFT34t |
13260-1076 |
US $102.33 |
||
|
10
|
10
13129-008 LOW GEAR OUTPUT SHAFT40t |
13129-008 |
from US $104.04 |
||
|
11
|
11
13136-015 TOP GEAR DRIVE SHAFT27t |
13136-015 |
US $25.67 |
||
|
12
|
12
13260-1199 GEAR-TRANSMISSION SPU25t |
13260-1199 |
US $125.35 |
||
|
13
|
13
92027-083 SPACER DR SHT 2ND GER |
92027-083 |
US $2.70 |
||
|
14
|
14
13130-004 2ND GEAR DRIVE SHAFT21t |
13130-004 |
US $89.14 |
||
|
15
|
15
13127-006 SHAFT DRIVE15t |
13127-006 |
US $132.89 |
||
|
16
|
16
92022-105 WASHER PLAIN 12MMWasher plain 12mm; |
92022-105 |
from US $3.64 |
||
|
17
|
17
464H1200 WASHER LOCK 12MMWasher lock 12mm; |
464H1200 |
US $3.04 |
||
| replacement | |||||
|
17
|
17
464EA1200 WASHER-LOCK,12MMWasher lock 12mm; |
464EA1200 |
from US $0.94 |
||
|
18
|
18
220B0516 SCREW-PAN-CROSScrew pan head 5x16; I.s.o. thread |
220B0516 |
from US $1.11 |
||
| replacement | |||||
|
18
|
18
220AA0516 SCREW-PAN-CROSScrew pan head 5x16; I.s.o. thread |
220AA0516 |
from US $0.79 |
||
|
19
|
19
13151-1003 SWITCH,NEUTRALSwitch,neutral; |
13151-1003 |
US $11.93 |
||
| replacement | |||||
|
19
|
19
13151-1091 Switch-Comp,NeutralSwitch,neutral; |
13151-1091 |
from US $14.76 |
||
|
20
|
20
13146002 GASKET NEUTRAL SWITCHGasket neutral switch; |
13146002 |
from US $2.95 |
||
|
21
|
21
92011-003
New Genuine Part
|
92011-003 |
— | ||
| replacement | |||||
|
21
|
21
220AA0616 SCREW-PAN-CROS,6X16 |
220AA0616 |
from US $0.95 |
||
|
22
|
22
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
22
|
22
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
23
|
23
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
23
|
23
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
24
|
24
21007-1003 ROTOR,NEUTRAL INDICTRRotor,neutral indictr; |
21007-1003 |
from US $4.51 |
||
|
25
|
25
13141-014 DRUM GEAR CHANGE |
13141-014 |
US $50.26 |
||
|
26
|
26
92043-011 PIN GEAR CHANGE DRUM |
92043-011 |
from US $2.59 |
||
|
27
|
27
13142-002 PLATE CHANGE DRUM PIN |
13142-002 |
US $3.98 |
||
|
28
|
28
212B0616 SCREW CNTSNK HD 6X16 |
212B0616 |
US $12.80 |
||
|
29
|
29
92043-005 PIN SELECT FORK GUIDE |
92043-005 |
from US $3.89 |
||
|
30
|
30
550D3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550D3020 |
US $1.11 |
||
| replacement | |||||
|
30
|
30
550AA3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550AA3020 |
from US $1.11 |
||
|
31
|
31
13140-015
New Genuine Part
|
13140-015 |
— | ||
| replacement | |||||
|
31
|
31
13140-020 FORK SELECTOR |
13140-020 |
US $49.61 |
||
