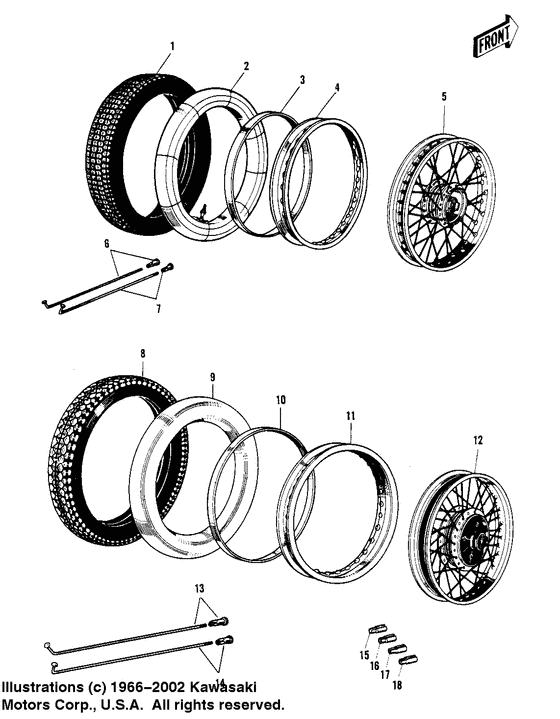

Wheels/tires Diagram Kawasaki Model "F" F3 Bushwhacker
- Year
- 1970
- Model code
- F3
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41019-003
New Genuine Part
|
41019-003 |
— | ||
|
2
|
2
41022-026
New Genuine Part
|
41022-026 |
— | ||
| replacements | |||||
|
2
|
2
41022-1203 TUBE-TIRE |
41022-1203 |
from US $46.08 |
||
|
2
|
2
41022-1019
TUBE,3.0/3.25/3.60-19
|
41022-1019 |
— | ||
|
3
|
3
41023-015 BAND-RIM |
41023-015 |
US $13.55 |
||
| replacement | |||||
|
3
|
3
41023-1074 BAND-RIM |
41023-1074 |
from US $9.19 |
||
|
4
|
4
41025-022 RIM 1.60AX19W |
41025-022 |
US $52.63 |
||
|
5
|
5
41074-008 WHEEL ASSY FRONT |
41074-008 |
US $215.91 |
||
|
6
|
6
41027-015
SPOKE-ASY,FR INNER
Spoke-asy,fr inner; #10 x 172.5 mm x 101 |
41027-015 |
— | ||
|
7
|
7
41028-012
SPOKE-ASY,FR OUTER
Spoke-asy,fr outer; #10 x 173 mm x 82.5 |
41028-012 |
— | ||
|
8
|
8
41019-004
New Genuine Part
|
41019-004 |
— | ||
| replacement | |||||
|
8
|
8
41019-011
New Genuine Part
|
41019-011 |
— | ||
|
9
|
9
41022-027
*** n.l.a.***
*** n.l.a.*** (canada); |
41022-027 |
— | ||
| replacements | |||||
|
9
|
9
41022-1014 TUBE-TIRE,2.75/3/3.6*** n.l.a.*** (canada); |
41022-1014 |
from US $37.35 |
||
|
9
|
9
41022-1004 Tube,3.50-18 trg*** n.l.a.*** (canada); |
41022-1004 |
from US $42.09 |
||
|
9
|
9
41022-1119 TUBE-TIRE,100/100-18*** n.l.a.*** (canada); |
41022-1119 |
from US $46.08 |
||
|
10
|
10
41023-1006
BAND-RIM,100/100-18(D
Band,rim,4.00/5.10-18; |
41023-1006 |
— | ||
| replacement | |||||
|
10
|
10
41023-1070 BAND-RIM,100/100-18(DBand,rim,4.00/5.10-18; |
41023-1070 |
from US $9.19 |
||
|
11
|
11
41025-023 RIM-1.85BX18W |
41025-023 |
US $29.86 |
||
|
12
|
12
42048-003 WHEEL ASSY,REARWheel assy,rear; |
42048-003 |
US $215.91 |
||
|
13
|
13
41027-020
SPOKE-ASY,INNER
Spoke-asy,inner; #10 x 160.5 mm x 102 |
41027-020 |
— | ||
|
14
|
14
41028-020
SPOKE-ASY,OUTER
Spoke-asy,outer; #10 x 160.5 mm x 83 |
41028-020 |
— | ||
|
15
|
15
41075-1007
BALANCER-WHEEL,10G
Weight,balance,10g; Ar, ar |
41075-1007 |
— | ||
| replacement | |||||
|
15
|
15
41075-0011 BALANCER-WHEEL,10GWeight,balance,10g; Ar, ar |
41075-0011 |
from US $6.81 |
||
|
16
|
16
41075-1008
WEIGHT,BALANCE,20G
Weight,balance,20g; Ar, ar |
41075-1008 |
— | ||
| replacement | |||||
|
16
|
16
41075-0012 BALANCER-WHEEL,20GWeight,balance,20g; Ar, ar |
41075-0012 |
from US $6.81 |
||
|
17
|
17
41075-1009
BALANCER-WHEEL,30G
Weight,balance,30g; Ar, ar |
41075-1009 |
— | ||
| replacement | |||||
|
17
|
17
41075-0013 BALANCER-WHEEL,30GWeight,balance,30g; Ar, ar |
41075-0013 |
from US $6.81 |
||
|
18
|
18
41075-1010
WEIGHT,BALANCE,5G
Arweight,balance,5g; Ar |
41075-1010 |
— | ||
