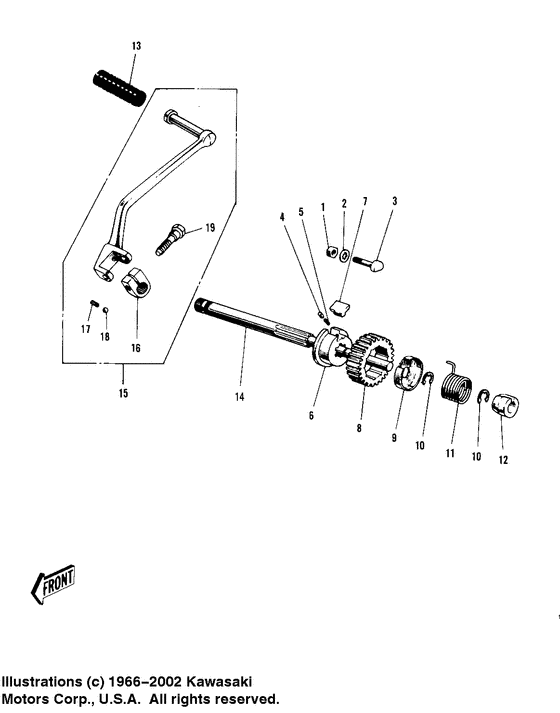

Kickstarter mechanism Diagram Kawasaki Model "F" F4 Sidewinder
- Year
- 1970
- Model code
- F4
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
1
|
1
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.77 |
||
|
2
|
2
463H0800 WASHER-LOCK,8MM |
463H0800 |
US $1.33 |
||
| replacement | |||||
|
2
|
2
463EA0800 WASHER-LOCK,8MM |
463EA0800 |
from US $0.76 |
||
|
3
|
3
13072-004 STOPPER KICKSTARTER |
13072-004 |
US $11.25 |
||
|
4
|
4
92042-001 PIN KICKSTARTER PAWL |
92042-001 |
US $2.15 |
||
|
5
|
5
92081-001 SPRING CLUTCH |
92081-001 |
US $0.88 |
||
|
6
|
6
13067-003 DRUM KICKSTARTER |
13067-003 |
US $75.79 |
||
|
7
|
7
13069-003 PAWL KICKSTARTER |
13069-003 |
from US $10.10 |
||
|
8
|
8
13068-014 GEAR KICKSTARTER |
13068-014 |
US $27.98 |
||
|
9
|
9
13071-003 PLATE KICK GEAR HLDER |
13071-003 |
from US $1.86 |
||
|
10
|
10
482J0100 CIRCLIP 10MMCirclip 10mm; |
482J0100 |
from US $0.91 |
||
|
11
|
11
92082-002 SPRING KICKSTARTER |
92082-002 |
from US $12.70 |
||
|
12
|
12
13070-001 GUIDE KICK SPRING |
13070-001 |
from US $9.70 |
||
|
13
|
13
13063004 RUBBER KICK PEDALRubber kick pedal; |
13063004 |
US $6.86 |
||
| replacement | |||||
|
13
|
13
92161-2388 RUBBER KICK PEDALRubber kick pedal; |
92161-2388 |
US $8.92 |
||
|
14
|
14
13066-009 SHAFT KICKSTARTER |
13066-009 |
US $22.73 |
||
|
15
|
15
13064-016
PEDAL,KICKSTARTER
Pedal,kickstarter; |
13064-016 |
— | ||
|
16
|
16
13061-002
New Genuine Part
|
13061-002 |
— | ||
| replacement | |||||
|
16
|
16
13061-007
BOSS KICK PEDAL
|
13061-007 |
— | ||
|
17
|
17
92081-020 SPRING KICK PEDALSpring kick pedal; |
92081-020 |
from US $2.52 |
||
|
18
|
18
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.72 |
||
|
19
|
19
92001-071
BOLT 10MM
|
92001-071 |
— | ||
