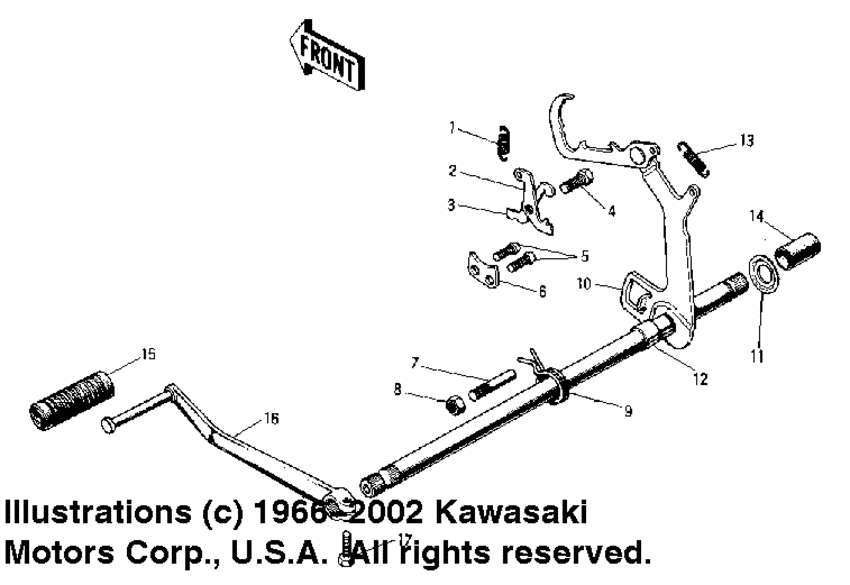

Gear change mechanism Diagram Kawasaki Model "F" F5 Bighorn 350TR
- Year
- 1970
- Model code
- F5
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92081-091 SPRING-COIL |
92081-091 |
US $4.73 |
||
|
2
|
2
13168-017 LEVER-CHANGE DRUM,BLever-change drum,b; |
13168-017 |
US $5.65 |
||
|
3
|
3
13168-016 LEVER-CHANGE DRUM,ALever-change drum,a; |
13168-016 |
US $1.85 |
||
|
4
|
4
92011-023 SCREW-PAN HEADScrew-pan head; |
92011-023 |
US $3.55 |
||
|
5
|
5
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
5
|
5
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
6
|
6
13169-002 PLATE CHNG DRUM PSTN |
13169-002 |
US $3.82 |
||
|
7
|
7
92043-057
PIN CHANGE PEDAL SPRG - N.L.A
|
92043-057 |
— | ||
|
8
|
8
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
8
|
8
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
9
|
9
92081-1129 SPRING,TENTIONSpring,tention; |
92081-1129 |
from US $6.34 |
||
|
10
|
10
13161-028 LEVER ASSY GEAR CHNG |
13161-028 |
US $51.57 |
||
|
11
|
11
92026-068 SPACER |
92026-068 |
US $4.82 |
||
|
12
|
12
92027-121 COLLAR,12X18X11.5 |
92027-121 |
US $10.22 |
||
| replacement | |||||
|
12
|
12
92152-0582 COLLAR,12X18X11.5 |
92152-0582 |
from US $4.05 |
||
|
13
|
13
92144-1720 SPRING,CHANGE LEVERSpring,change lever; |
92144-1720 |
from US $2.79 |
||
|
14
|
14
13080-004
RUBBER CAP
|
13080-004 |
— | ||
|
15
|
15
13157004 DAMPER,CHANGE PEDALRubber change pedal; |
13157004 |
US $3.48 |
||
| replacement | |||||
|
15
|
15
92161-1532 DAMPER,CHANGE PEDALRubber change pedal; |
92161-1532 |
from US $4.87 |
||
|
16
|
16
13156-045
PEDAL GEAR CHANGE
|
13156-045 |
— | ||
|
17
|
17
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
17
|
17
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
