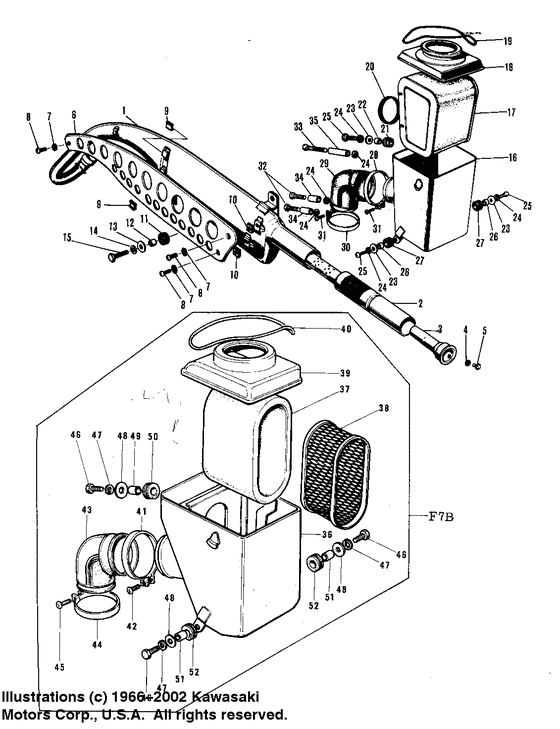

Air cleaner/muffler ('71-'73 f7/f7-a/f7-b) Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1972
- Model code
- F7-A
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
18048-015 TAIL PIECE |
18048-015 |
US $25.56 |
||
|
4
|
4
463H0600 WASHER LOCK 6MM |
463H0600 |
US $0.45 |
||
|
5
|
5
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
5
|
5
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
6
|
6
18064-005 COVER-MUFFLER |
18064-005 |
US $40.05 |
||
|
7
|
7
463H0600 WASHER LOCK 6MM |
463H0600 |
US $0.45 |
||
|
8
|
8
220E0612 SCREW PAN HEAD 6X12 |
220E0612 |
from US $1.09 |
||
|
9
|
9
18065007 INSULATOR |
18065007 |
US $4.12 |
||
|
10
|
10
18065009 INSULATOR-HEATInsulator-heat; |
18065009 |
US $3.37 |
||
|
11
|
11
18063005 DAMPER RUBBER-MUFFLER |
18063005 |
US $4.28 |
||
|
12
|
12
92027-102 COLLAR |
92027-102 |
from US $1.51 |
||
|
13
|
13
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
14
|
14
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
14
|
14
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
15
|
15
115G0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115G0825 |
US $1.43 |
||
| replacement | |||||
|
15
|
15
115BA0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115BA0825 |
from US $1.11 |
||
|
16
|
16
11011-012 BODY-AIR CLEANER |
11011-012 |
US $67.43 |
||
|
17
|
17
11013-020
ELEMENT,AIR CLNR
Element,air clnr; |
11013-020 |
— | ||
|
18
|
18
11012-015 CAP-AIR CLEANER |
11012-015 |
US $9.25 |
||
|
19
|
19
671B25100
0 RING,100MM
"0" ring,100mm; |
671B25100 |
— | ||
|
1
|
1
18001-032 MUFFLER ASSY |
18001-032 |
US $262.13 |
||
|
2
|
2
18001-032 MUFFLER ASSY |
18001-032 |
US $262.13 |
||
|
3
|
3
18001-032 MUFFLER ASSY |
18001-032 |
US $262.13 |
||
|
4
|
4
18001-032 MUFFLER ASSY |
18001-032 |
US $262.13 |
||
|
5
|
5
18001-032 MUFFLER ASSY |
18001-032 |
US $262.13 |
||
|
20
|
20
11017-007 GASKET-AIR CLEANER |
11017-007 |
US $3.85 |
||
|
21
|
21
92075-051 DAMPER RUBBERDamper rubber; L= 7 m/m |
92075-051 |
from US $2.69 |
||
|
22
|
22
92027-103 COLLARL= 6 m/m |
92027-103 |
from US $2.38 |
||
|
23
|
23
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
23
|
23
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
24
|
24
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
24
|
24
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
25
|
25
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
25
|
25
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
26
|
26
92027-120 COLLAR 6.8X10X10.5Collar 6.8x10x10.5; L=10.5 m/m |
92027-120 |
from US $3.17 |
||
|
27
|
27
92071-046 GROMMETL=11.5 m/m |
92071-046 |
from US $2.95 |
||
|
28
|
28
92037-129
CLAMP,AIR CLEANER
Clamp,air cleaner; I.d.= 83 |
92037-129 |
— | ||
|
29
|
29
11026-003 CONNECTOR |
11026-003 |
US $10.46 |
||
|
2
|
2
18033-073
BAFFLE TUBE
L=350 m/m |
18033-073 |
— | ||
|
3
|
3
18033-073
BAFFLE TUBE
L=350 m/m |
18033-073 |
— | ||
|
4
|
4
18033-073
BAFFLE TUBE
L=350 m/m |
18033-073 |
— | ||
|
5
|
5
18033-073
BAFFLE TUBE
L=350 m/m |
18033-073 |
— | ||
|
30
|
30
92037-128
CLAMP,AIR CLEANER
Clamp,air cleaner; I.d.= 76 |
92037-128 |
— | ||
|
31
|
31
220B0635
SCREW-PAN-CROSS,6X35
Screw pan head 6x35; |
220B0635 |
— | ||
| replacement | |||||
|
31
|
31
220AA0635 SCREW-PAN-CROSS,6X35Screw pan head 6x35; |
220AA0635 |
from US $0.63 |
||
|
32
|
32
92003-066 BOLT-AIR CLEANER FIT |
92003-066 |
US $3.11 |
||
|
33
|
33
92003-067 BOLT-AIR CLNR. FITTNG |
92003-067 |
US $2.95 |
||
|
34
|
34
92027-127 COLLAR |
92027-127 |
US $5.26 |
||
|
35
|
35
92027-128 COLLAR |
92027-128 |
US $1.69 |
||
|
36
|
36
11011-024 BODY-AIR CLEANERF7b |
11011-024 |
US $32.40 |
||
|
37
|
37
11013-036
ELEMENT,AIR,CLNR
Element,air,clnr; F7b |
11013-036 |
— | ||
|
38
|
38
11014-007
HOLDER-CLENER ELEM
F7b |
11014-007 |
— | ||
|
39
|
39
11012-028
CAP-AIR CLEANER,BL
Cap-air cleaner,bl; F7b |
11012-028 |
— | ||
|
42
|
42
220B0635
SCREW-PAN-CROSS,6X35
Screw pan head 6x35; F7b |
220B0635 |
— | ||
| replacement | |||||
|
42
|
42
220AA0635 SCREW-PAN-CROSS,6X35Screw pan head 6x35; F7b |
220AA0635 |
from US $0.63 |
||
|
45
|
45
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; F7b |
220B0630 |
— | ||
| replacement | |||||
|
45
|
45
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; F7b |
220AA0630 |
from US $1.25 |
||
|
46
|
46
112G0625
BOLT-UPSET,6X25
F7b |
112G0625 |
— | ||
| replacement | |||||
|
46
|
46
112BA0625 BOLT-UPSET,6X25F7b |
112BA0625 |
from US $1.07 |
||
|
47
|
47
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
47
|
47
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
16
|
16
11010-040 AIR CLEANER ASSY |
11010-040 |
US $85.28 |
||
|
17
|
17
11010-040 AIR CLEANER ASSY |
11010-040 |
US $85.28 |
||
|
18
|
18
11010-040 AIR CLEANER ASSY |
11010-040 |
US $85.28 |
||
|
19
|
19
11010-040 AIR CLEANER ASSY |
11010-040 |
US $85.28 |
||
|
20
|
20
11010-040 AIR CLEANER ASSY |
11010-040 |
US $85.28 |
||
|
36
|
36
11010-061 AIR CLEANER ASSYF7b |
11010-061 |
US $101.81 |
||
|
37
|
37
11010-061 AIR CLEANER ASSYF7b |
11010-061 |
US $101.81 |
||
|
38
|
38
11010-061 AIR CLEANER ASSYF7b |
11010-061 |
US $101.81 |
||
|
39
|
39
11010-061 AIR CLEANER ASSYF7b |
11010-061 |
US $101.81 |
||
|
40
|
40
11010-061 AIR CLEANER ASSYF7b |
11010-061 |
US $101.81 |
||
