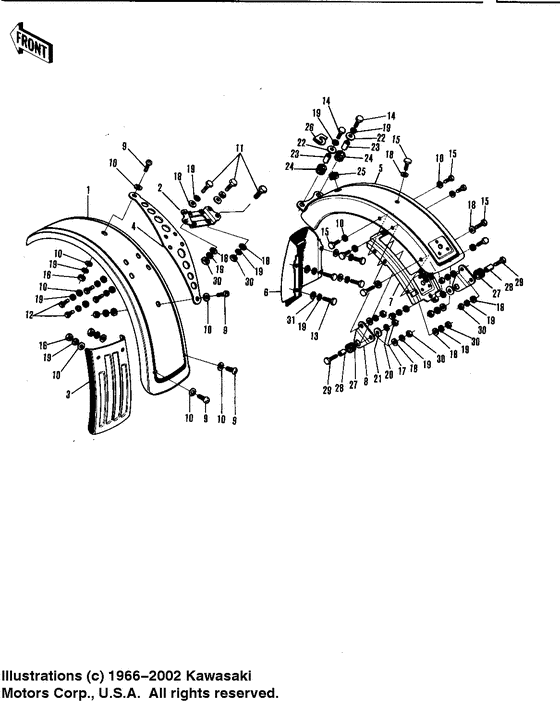

Fenders (F7) Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1972
- Model code
- F7-A
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35004-055-53
FENDER-FR,YELLOW
Fender-fr,yellow; |
35004-055-53 |
— | ||
|
2
|
2
35012-013 BRACKET-FRONT FENDER |
35012-013 |
US $9.59 |
||
|
3
|
3
35019-004
FLAP-FR FENDER,RUBBER
Flap-fr fender,rubber; |
35019-004 |
— | ||
|
4
|
4
35013-003
PLATE FRONT FENDER
|
35013-003 |
— | ||
|
5
|
5
35022-054-53 FENDER-REAR,B YELLOWFender-rear,b yellow; |
35022-054-53 |
US $89.46 |
||
|
6
|
6
35022-053 FENDER-RR |
35022-053 |
US $34.79 |
||
|
7
|
7
35034-012 BRACE-REAR FENDER |
35034-012 |
US $20.12 |
||
|
8
|
8
35025-019 BRACKET-REAR FENDER |
35025-019 |
US $4.73 |
||
|
9
|
9
220E0612 SCREW PAN HEAD 6X12 |
220E0612 |
from US $1.09 |
||
|
10
|
10
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
10
|
10
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
11
|
11
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
11
|
11
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
12
|
12
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
12
|
12
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
13
|
13
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
13
|
13
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
13
|
13
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
14
|
14
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
14
|
14
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
15
|
15
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
15
|
15
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
16
|
16
312B0600 NUT-HEXNut 6mm; |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
16
|
16
312AA0600 NUT-HEXNut 6mm; |
312AA0600 |
from US $0.94 |
||
|
17
|
17
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
17
|
17
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
17
|
17
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
18
|
18
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
18
|
18
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
19
|
19
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
19
|
19
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
20
|
20
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
20
|
20
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
21
|
21
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
22
|
22
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
22
|
22
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
23
|
23
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
24
|
24
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
25
|
25
92071-010
GROMMET HARNESS 10MM
|
92071-010 |
— | ||
|
26
|
26
26015-001 PLATE-GROUND WIRE |
26015-001 |
US $1.31 |
||
|
27
|
27
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
27
|
27
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
28
|
28
92027-012 SPACER FUEL TANK MONTSpacer fuel tank mont; |
92027-012 |
from US $3.27 |
||
|
29
|
29
115B0832
BOLT, 8X32
|
115B0832 |
— | ||
| replacement | |||||
|
29
|
29
92002-1241
BOLT, 8X32
|
92002-1241 |
— | ||
|
30
|
30
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
30
|
30
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
31
|
31
92027-122 COLLAR |
92027-122 |
from US $5.07 |
||
|
32
|
32
56027-015 EMBLEM-FRONT FENDER |
56027-015 |
US $1.91 |
||
|
33
|
33
56027-016 EMBLEM-REAR FENDER |
56027-016 |
US $3.40 |
||
|
34
|
34
56027-017 EMBLEM-FENDER |
56027-017 |
US $3.40 |
||
