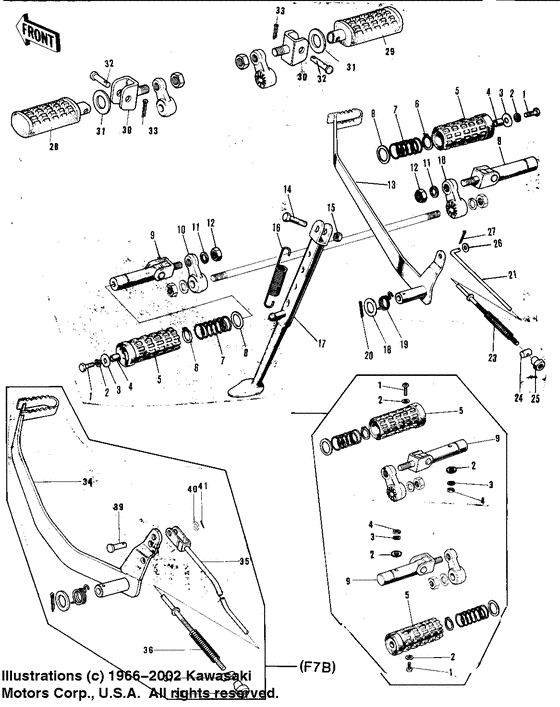

Footrests/stand/brake pedal Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1972
- Model code
- F7-A
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
112G0618
BOLT-UPSET
F7a |
112G0618 |
— | ||
| replacement | |||||
|
1
|
1
112BA0618 BOLT-UPSETF7a |
112BA0618 |
from US $0.95 |
||
|
2
|
2
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; F7a |
461F0600 |
— | ||
| replacement | |||||
|
2
|
2
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; F7a |
461DA0600 |
from US $0.55 |
||
|
3
|
3
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; F7a |
92022-125 |
— | ||
| replacement | |||||
|
3
|
3
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; F7a |
92200-0283 |
from US $0.72 |
||
|
4
|
4
92027-103 COLLARF7a |
92027-103 |
from US $2.38 |
||
|
5
|
5
92076-023
RUBBER-FOOTREST
F7a |
92076-023 |
— | ||
|
6
|
6
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
7
|
7
34006-002
SPRING FOOTREST PEG
|
34006-002 |
— | ||
|
8
|
8
92022-049
WASHER FOLDING PEG
|
92022-049 |
— | ||
|
9
|
9
34003-030 HOLDER-FOTREST BAR,LHHolder-fotrest bar,lh; D=10, f7a, d=12 |
34003-030 |
US $67.05 |
||
|
10
|
10
34007-009 BRACKET-FOOTREST BARD=12 |
34007-009 |
US $34 |
||
|
11
|
11
461F1000 WASHER SPRING 10MMWasher spring 10mm; Not required for 92019-009 |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
11
|
11
461DA1000 WASHER-SPRINGWasher spring 10mm; Not required for 92019-009 |
461DA1000 |
from US $0.90 |
||
|
12
|
12
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
12
|
12
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
13
|
13
43001-035 PEDAL-BRAKEF7b |
43001-035 |
US $40.05 |
||
|
14
|
14
113G1028
BOLT,10X28
Bolt,10x28; |
113G1028 |
— | ||
|
15
|
15
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
15
|
15
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
16
|
16
34023-005 SPRING MAIN STAND |
34023-005 |
from US $8.31 |
||
|
17
|
17
34024-028
STAND-SIDE
|
34024-028 |
— | ||
|
18
|
18
92022-085 WASHER BRAKE PEDALWasher brake pedal; |
92022-085 |
from US $3 |
||
|
19
|
19
43005-033
SPRING,BRAKE PEDAL
Spring,brake pedal; |
43005-033 |
— | ||
|
20
|
20
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
20
|
20
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
|
23
|
23
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
24
|
24
92043-039
PIN,BRAKE ROD
Pin brake; |
92043-039 |
— | ||
| replacement | |||||
|
24
|
24
92043-0147 PIN,BRAKE RODPin brake; |
92043-0147 |
from US $3.17 |
||
|
25
|
25
92015-042 NUT-BRAKE ROD ADJUSTNut-brake rod adjust; |
92015-042 |
from US $3.48 |
||
|
26
|
26
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
26
|
26
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
27
|
27
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
27
|
27
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
28
|
28
34027-1114
STEP-ASSY,FR,LH
Step-assy,fr,lh; |
34027-1114 |
— | ||
|
29
|
29
34027-1115 STEP-ASSY,FR,RHStep-assy,fr,rh; |
34027-1115 |
US $45.31 |
||
|
30
|
30
34021-001-10 HOLDER,FOTRST BAR,LHHolder,fotrst bar,lh; |
34021-001-10 |
US $19.37 |
||
|
31
|
31
92022-204
WASHER PL 22.5X36X2.3
|
92022-204 |
— | ||
|
32
|
32
92043-080 PIN-FOOTREST BAR FITPin-footrest bar fit; |
92043-080 |
from US $3.33 |
||
|
33
|
33
550D2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
33
|
33
550AA2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550AA2515 |
from US $0.78 |
||
|
34
|
34
43001-046 PEDAL-BRAKEF7b |
43001-046 |
US $42.25 |
||
|
36
|
36
43012001 SPRING,BRAKE RODSpring,brake rod; F7b |
43012001 |
from US $3.33 |
||
|
37
|
37
92043-039
PIN,BRAKE ROD
Pin brake; F7b |
92043-039 |
— | ||
| replacement | |||||
|
37
|
37
92043-0147 PIN,BRAKE RODPin brake; F7b |
92043-0147 |
from US $3.17 |
||
|
38
|
38
92015-042 NUT-BRAKE ROD ADJUSTNut-brake rod adjust; F7b |
92015-042 |
from US $3.48 |
||
|
39
|
39
92043-064
PIN-BRAKE ROD FITTING
Pin-brake rod fitting; F7b |
92043-064 |
— | ||
| replacement | |||||
|
39
|
39
92043-125 PINPin-brake rod fitting; F7b |
92043-125 |
from US $3.96 |
||
|
40
|
40
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; F7b |
410B0600 |
— | ||
| replacement | |||||
|
40
|
40
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; F7b |
410AA0600 |
from US $0.79 |
||
|
41
|
41
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; F7b |
550D2015 |
— | ||
| replacement | |||||
|
41
|
41
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; F7b |
550AA2015 |
from US $0.63 |
||
|
21
|
21
43010-5003
BRAKE ROD ASSY
F7b |
43010-5003 |
— | ||
| replacements | |||||
|
21
|
21
92043-0147 PIN,BRAKE RODF7b |
92043-0147 |
from US $3.17 |
||
|
21
|
21
43011-019 ROD-BRAKEF7b |
43011-019 |
US $4 |
||
|
21
|
21
43012001 SPRING,BRAKE RODF7b |
43012001 |
from US $3.33 |
||
|
21
|
21
92015-042 NUT-BRAKE ROD ADJUSTF7b |
92015-042 |
from US $3.48 |
||
|
22
|
22
43010-5003
BRAKE ROD ASSY
F7b |
43010-5003 |
— | ||
| replacements | |||||
|
22
|
22
92043-0147 PIN,BRAKE RODF7b |
92043-0147 |
from US $3.17 |
||
|
22
|
22
43011-019 ROD-BRAKEF7b |
43011-019 |
US $4 |
||
|
22
|
22
43012001 SPRING,BRAKE RODF7b |
43012001 |
from US $3.33 |
||
|
22
|
22
92015-042 NUT-BRAKE ROD ADJUSTF7b |
92015-042 |
from US $3.48 |
||
|
23
|
23
43010-5003
BRAKE ROD ASSY
F7b |
43010-5003 |
— | ||
| replacements | |||||
|
23
|
23
92043-0147 PIN,BRAKE RODF7b |
92043-0147 |
from US $3.17 |
||
|
23
|
23
43011-019 ROD-BRAKEF7b |
43011-019 |
US $4 |
||
|
23
|
23
43012001 SPRING,BRAKE RODF7b |
43012001 |
from US $3.33 |
||
|
23
|
23
92015-042 NUT-BRAKE ROD ADJUSTF7b |
92015-042 |
from US $3.48 |
||
|
24
|
24
43010-5003
BRAKE ROD ASSY
F7b |
43010-5003 |
— | ||
| replacements | |||||
|
24
|
24
92043-0147 PIN,BRAKE RODF7b |
92043-0147 |
from US $3.17 |
||
|
24
|
24
43011-019 ROD-BRAKEF7b |
43011-019 |
US $4 |
||
|
24
|
24
43012001 SPRING,BRAKE RODF7b |
43012001 |
from US $3.33 |
||
|
24
|
24
92015-042 NUT-BRAKE ROD ADJUSTF7b |
92015-042 |
from US $3.48 |
||
|
25
|
25
43010-5003
BRAKE ROD ASSY
F7b |
43010-5003 |
— | ||
| replacements | |||||
|
25
|
25
92043-0147 PIN,BRAKE RODF7b |
92043-0147 |
from US $3.17 |
||
|
25
|
25
43011-019 ROD-BRAKEF7b |
43011-019 |
US $4 |
||
|
25
|
25
43012001 SPRING,BRAKE RODF7b |
43012001 |
from US $3.33 |
||
|
25
|
25
92015-042 NUT-BRAKE ROD ADJUSTF7b |
92015-042 |
from US $3.48 |
||
|
35
|
35
43010-013 ROD ASSY-BRAKEF7b |
43010-013 |
US $17.64 |
||
|
36
|
36
43010-013 ROD ASSY-BRAKEF7b |
43010-013 |
US $17.64 |
||
|
37
|
37
43010-013 ROD ASSY-BRAKEF7b |
43010-013 |
US $17.64 |
||
|
38
|
38
43010-013 ROD ASSY-BRAKEF7b |
43010-013 |
US $17.64 |
||
|
9
|
9
34002-051
BAR ASSY,FOOTREST
Bar assy,footrest; |
34002-051 |
— | ||
|
10
|
10
34002-051
BAR ASSY,FOOTREST
Bar assy,footrest; |
34002-051 |
— | ||
|
12
|
12
34002-051
BAR ASSY,FOOTREST
Bar assy,footrest; |
34002-051 |
— | ||
