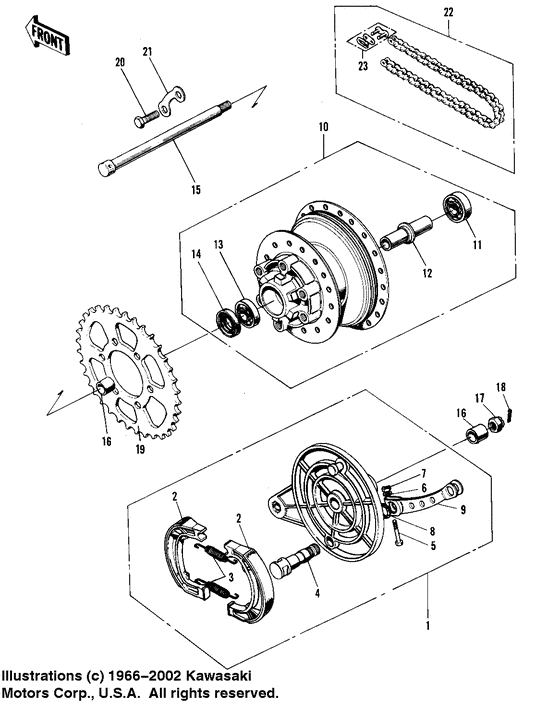

Rear hub/brake/chain ('71-'73 f7/f7-a/f7-b) Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1973
- Model code
- F7-B
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42006-018 PANEL-ASY,RR BRKPanel-asy,rr brk; F7/f7-a, f7-b |
42006-018 |
US $151.36 |
||
|
2
|
2
41048-1007 SHOE-BRAKEShoe,brake; |
41048-1007 |
US $30.71 |
||
| replacement | |||||
|
2
|
2
41048-1087 SHOE-BRAKEShoe,brake; |
41048-1087 |
from US $48.96 |
||
|
3
|
3
92081-1766 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1766 |
from US $5.39 |
||
|
4
|
4
41050018 CAM SHAFT-FRONT BRAKECam shaft-front brake; |
41050018 |
from US $19.76 |
||
|
5
|
5
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
5
|
5
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
6
|
6
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
6
|
6
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
7
|
7
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
7
|
7
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
8
|
8
92055-004 0 RING,11MM"0" ring,11mm; |
92055-004 |
from US $3.17 |
||
|
9
|
9
42029-015 LEVER-REAR BRAKE CAMF7/f7-a, f7-b |
42029-015 |
US $42.12 |
||
|
10
|
10
42005-024 DRUM ASSY-REAR BRAKEF7/f7-a, f7-b |
42005-024 |
US $159.80 |
||
| replacement | |||||
|
10
|
10
42005-029-80 DRUM ASY,RR BK,BUFFF7/f7-a, f7-b |
42005-029-80 |
US $223.40 |
||
|
11
|
11
601B6302Z BEARING BALL #6302Z |
601B6302Z |
from US $10.27 |
||
|
12
|
12
42010-019 SPACER-RR HUB BEARINGL=112 mm |
42010-019 |
US $17.60 |
||
|
13
|
13
601B6302
BEARING BALL #6302
Bearing ball #6302; |
601B6302 |
— | ||
|
14
|
14
92050-009 OIL SEAL RR BRK DRUM |
92050-009 |
US $7.29 |
||
| replacement | |||||
|
14
|
14
92050-060 OIL SEAL,RR HUB BRNG |
92050-060 |
from US $11.56 |
||
|
15
|
15
42031-037 AXLE-REAR |
42031-037 |
US $48.42 |
||
|
16
|
16
42032-027 COLLAR-REAR HUBUse w/33040-041 *33040-041 and 048: see chain, use w/33040-041 *33040-041 and 048: see chain, use w/33040-041 *33040-041 and 048: see chain, use w/33040-048 *33040-041 and 048: see chain, use w/33040-048 *33040-041 and 048: see chain, use w/33040-048 *330 |
42032-027 |
US $12.13 |
||
|
17
|
17
321B1400 NUT CASTLE 14MM |
321B1400 |
US $24.05 |
||
|
18
|
18
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
18
|
18
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
|
19
|
19
42041-085
REAR SPROCKET 50T
Std, option, option |
42041-085 |
— | ||
|
20
|
20
92001-087
BOLT-HEX HEAD,10X25
Bolt-hex head,10x25; |
92001-087 |
— | ||
|
21
|
21
92088-007 WASHER LOCK |
92088-007 |
from US $5.44 |
||
|
22
|
22
695Z43114
New Genuine Part
|
695Z43114 |
— | ||
|
23
|
23
92058-1015 JOINT-CHAIN.joint-chain; |
92058-1015 |
from US $4.19 |
||
