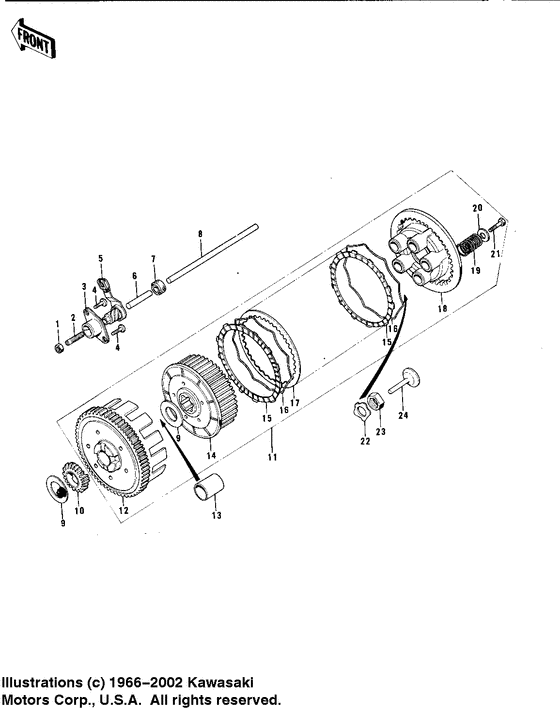

Clutch ('74-'75 f7-c/f6-d) Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1975
- Model code
- F7-D
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
1
|
1
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
2
|
2
291Z0625 SCREW SLOTTED |
291Z0625 |
US $24.95 |
||
|
3
|
3
13118-006 RELEASE OUTER-CLUTCH |
13118-006 |
US $28.42 |
||
|
4
|
4
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
4
|
4
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
5
|
5
13102-011 RELEASE INNER-CLUTCH |
13102-011 |
US $41.96 |
||
|
6
|
6
13116-018 ROD-CLUTCH PUSH,SHORTRod-clutch push,short; L=70m/m |
13116-018 |
US $12.19 |
||
|
7
|
7
92052-010
OIL SEAL TB7246
|
92052-010 |
— | ||
|
8
|
8
13116-017 ROD-CLUTCH PUSH,LONGRod-clutch push,long; L=126.5m/m |
13116-017 |
US $14.04 |
||
|
9
|
9
92022-168 WASHER-CLUTCH THRUSTWasher-clutch thrust; |
92022-168 |
from US $6.02 |
||
|
10
|
10
13075-006 PINION-KICKSTARTER |
13075-006 |
US $51.39 |
||
|
11
|
11
13081-084 CLUTCH-ASSY |
13081-084 |
US $360.23 |
||
|
12
|
12
13095-1024
HOUSING-COMP-CLUTCH
|
13095-1024 |
— | ||
|
13
|
13
92028-014
BUSH-CLUTCH
|
92028-014 |
— | ||
| replacement | |||||
|
13
|
13
92028-1767 BUSHING |
92028-1767 |
from US $22.87 |
||
|
14
|
14
13087-032 HUB,CLUTCHHub,clutch; |
13087-032 |
US $71.91 |
||
|
15
|
15
13088-1015 PLATE-FRICTION |
13088-1015 |
from US $15.71 |
||
|
16
|
16
13229-002 RING-CLUTCH STEEL |
13229-002 |
US $9.76 |
||
|
17
|
17
13089-003 PLATE CLUTCH STEEL |
13089-003 |
from US $8.40 |
||
|
18
|
18
13187-004 PLATE-CLUTCH SPRING |
13187-004 |
US $33.16 |
||
|
19
|
19
92081-080 SPRING-CLUTCHSpring-clutch; |
92081-080 |
from US $9.82 |
||
|
20
|
20
92022-167
WASHER-PLAIN,5MM
Washer-plain,5mm; |
92022-167 |
— | ||
|
21
|
21
92003-078
BOLT,5X18
Bolt,5x18; |
92003-078 |
— | ||
|
22
|
22
92024-046
WASHER-LOCK,14MM
Washer-lock,14mm; |
92024-046 |
— | ||
|
23
|
23
315B1400 NUT,14MMNut 14mm; |
315B1400 |
US $3.65 |
||
| replacement | |||||
|
23
|
23
315AA1400 NUT,14MMNut 14mm; |
315AA1400 |
from US $1.24 |
||
|
24
|
24
13116-016
PUSHER-CLTCH SPRG PLT
|
13116-016 |
— | ||
