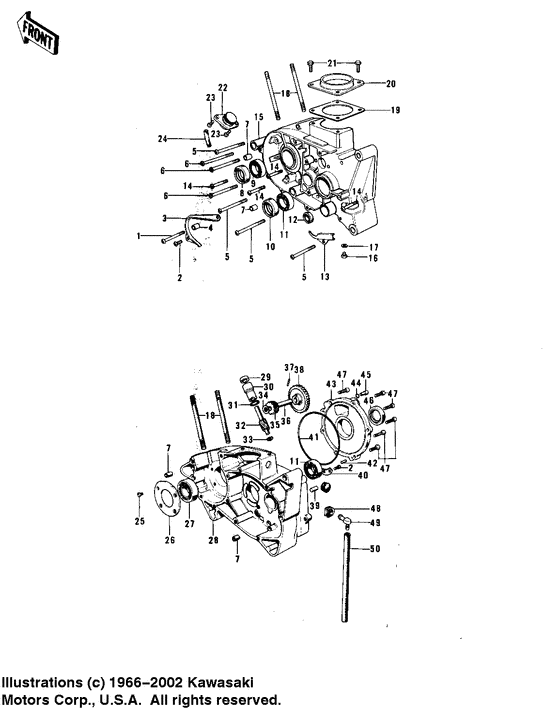

Crankcase ('74-'75 f7-c/f6-d) Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1975
- Model code
- F7-D
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
220B0685
SCREW PAN HEAD 6X85
|
220B0685 |
— | ||
|
2
|
2
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
2
|
2
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
2
|
2
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
3
|
3
14077-002
GUIDE-CHAIN
|
14077-002 |
— | ||
|
4
|
4
92027-169 COLLAR |
92027-169 |
from US $3.60 |
||
|
5
|
5
220B0665 SCREW-PAN HEAD,6X65Screw pan head 6x65; |
220B0665 |
US $3.20 |
||
| replacement | |||||
|
5
|
5
220AA0665 SCREW-PAN HEAD,6X65Screw pan head 6x65; |
220AA0665 |
from US $1.40 |
||
|
6
|
6
220B0655
SCREW-PAN HEAD,6X55
|
220B0655 |
— | ||
| replacement | |||||
|
6
|
6
220AA0655 SCREW-PAN HEAD,6X55 |
220AA0655 |
from US $1.43 |
||
|
7
|
7
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
|
8
|
8
92049-1250
SEAL-OIL
|
92049-1250 |
— | ||
| replacement | |||||
|
8
|
8
92049-1482 SEAL-OIL |
92049-1482 |
from US $10.80 |
||
|
9
|
9
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
10
|
10
92050-039
SEAL-OIL
|
92050-039 |
— | ||
| replacement | |||||
|
10
|
10
92049-1479 SEAL-OIL |
92049-1479 |
from US $7.78 |
||
|
11
|
11
92045-1046
BEARING-BALL,6204C3
Bearing-ball,6204c3; |
92045-1046 |
— | ||
|
12
|
12
92049-004 OIL SEAL SB12205Oil seal sb12205; |
92049-004 |
from US $5.28 |
||
|
13
|
13
14076-002
COVER-WIRING HARNESS
|
14076-002 |
— | ||
|
14
|
14
220B0640
SCREW-PAN HEAD,6X40
Screw pan head 6x40; |
220B0640 |
— | ||
| replacement | |||||
|
14
|
14
220AA0640 SCREW-PAN HEAD,6X40Screw pan head 6x40; |
220AA0640 |
from US $0.95 |
||
|
15
|
15
14002-078-21
CRANKCASE,L.H.BLACK
Crankcase,l.h.black; Flat black |
14002-078-21 |
— | ||
|
16
|
16
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
17
|
17
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
18
|
18
172G0870
STUD,8X70
Stud,8x70; |
172G0870 |
— | ||
|
19
|
19
11017-006
GASKET-INLET PIPE
|
11017-006 |
— | ||
|
20
|
20
11015-022-21
INLET PIPE,F.BLACK
Inlet pipe,f.black; Flat black |
11015-022-21 |
— | ||
|
21
|
21
92001-136 BOLT,HEX HEAD,6X20Bolt,hex head,6x20; |
92001-136 |
US $0.99 |
||
|
22
|
22
16137-002
PUMP-FUEL DRAIN
|
16137-002 |
— | ||
|
23
|
23
220B0616
SCREW-PAN-CROS,6X16
Screw pan head, 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
23
|
23
220AA0616 SCREW-PAN-CROS,6X16Screw pan head, 6x16; |
220AA0616 |
from US $0.95 |
||
|
24
|
24
92059-031
PIPE FUEL OVERFLOW
|
92059-031 |
— | ||
|
25
|
25
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
25
|
25
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
26
|
26
14014-021 HOLDER-CRANK BEARING |
14014-021 |
US $3.60 |
||
|
27
|
27
601B6305 BEARING BALL #6305Bearing ball #6305; |
601B6305 |
from US $23.19 |
||
|
28
|
28
14003-046-21 CRANKCASE,R.H,BLACKCrankcase,r.h,black; Flat black |
14003-046-21 |
US $179.26 |
||
|
29
|
29
92054-004 OIL SEAL |
92054-004 |
from US $9.17 |
||
|
30
|
30
92028-095
BUSH-TACHOMETER GEAR
|
92028-095 |
— | ||
|
31
|
31
92055-025 0 RING"0" ring; |
92055-025 |
from US $2.85 |
||
|
32
|
32
13223-003
GEAR TACHOMETER
|
13223-003 |
— | ||
|
33
|
33
92026-026
WASHER THRUST
I.d.=7.5 |
92026-026 |
— | ||
|
35
|
35
13224-007 GEAR-TACHOMETER |
13224-007 |
US $24.30 |
||
|
36
|
36
16086-002 SHAFT-OIL PUMP |
16086-002 |
US $5.60 |
||
|
37
|
37
92042-035 PIN,DOWELPin,dowel; |
92042-035 |
US $3.17 |
||
|
38
|
38
16085-016 GEAR-OIL PUMP |
16085-016 |
US $43.65 |
||
|
39
|
39
551A0816 PIN DOWEL 8X16 |
551A0816 |
US $0.74 |
||
|
40
|
40
14014-022 HOLDER-MISSION BERNG |
14014-022 |
US $2.50 |
||
|
41
|
41
92055-019
0 RING,120MM
"0" ring,120mm; |
92055-019 |
— | ||
|
42
|
42
610A0512 PIN DOWEL 5X12Pin dowel 5x12; |
610A0512 |
from US $0.94 |
||
|
43
|
43
14019-046
COVER-ROTARY DISC VLV
|
14019-046 |
— | ||
|
44
|
44
92055-037
0 RING,CHECK VALVE
"0" ring,check valve; |
92055-037 |
— | ||
|
45
|
45
16128-006 VALVE-CHECK |
16128-006 |
US $13.45 |
||
|
46
|
46
653B324507 OIL SEAL TB32457 |
653B324507 |
from US $9.01 |
||
|
47
|
47
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
47
|
47
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
48
|
48
92071-042 GROMMET |
92071-042 |
from US $2.85 |
||
|
49
|
49
14069-1001 BREATHER |
14069-1001 |
US $21.40 |
||
| replacement | |||||
|
49
|
49
14069-1062 BREATHER |
14069-1062 |
from US $16.32 |
||
|
50
|
50
92059-061
PIPE-BREATHER
|
92059-061 |
— | ||
