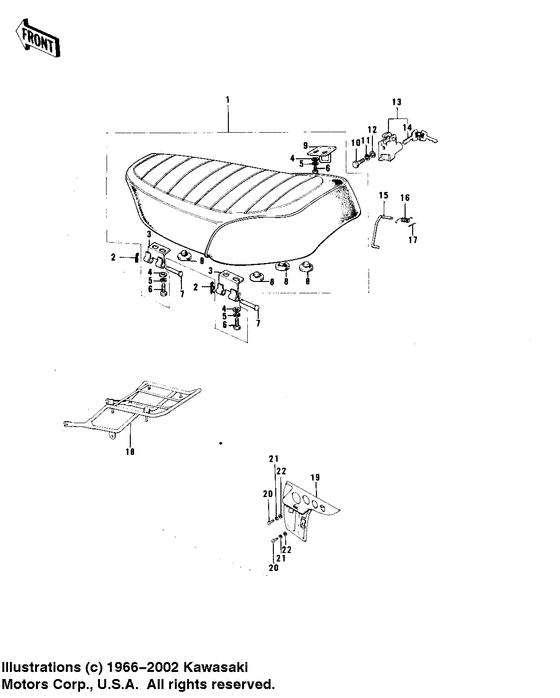

Seat/chain cover ('74-'75 f7-c/f6-d) Diagram Kawasaki Model "F" F7 Dual Sport
- Year
- 1975
- Model code
- F7-D
- Sales region
- USA
- Engine Capacity
- 175
- Model
- F7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53002-054 SEAT ASSY,DUALSeat assy, dual; |
53002-054 |
US $214.07 |
||
|
2
|
2
92041-003 COTTER PIN |
92041-003 |
from US $3.02 |
||
| replacement | |||||
|
2
|
2
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
3
|
3
53009-015
HINGE
|
53009-015 |
— | ||
|
4
|
4
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
4
|
4
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
5
|
5
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
5
|
5
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
6
|
6
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
6
|
6
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
6
|
6
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
7
|
7
53011002 PIN |
53011002 |
US $7.57 |
||
|
8
|
8
92075-023 DAMPER RUBB DUAL SEATDamper rubb dual seat; |
92075-023 |
from US $3.81 |
||
|
9
|
9
53008021 HOOK, SEATHook, seat; |
53008021 |
from US $8.08 |
||
|
10
|
10
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
10
|
10
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
11
|
11
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
11
|
11
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
12
|
12
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
12
|
12
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
13
|
13
53045-014
LOCK ASSY,SEAT
Lock assy,seat; |
53045-014 |
— | ||
|
14
|
14
27008-063-01
KEY SET,#401
Key set,#401; Ref grid f3#26 for key blanks |
27008-063-01 |
— | ||
|
15
|
15
53054-007 STAND,SEATStand, seat; |
53054-007 |
US $2.70 |
||
|
16
|
16
53055-002 SPRING,SEAT STANDSpring,seat stand; |
53055-002 |
US $3.91 |
||
|
17
|
17
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
17
|
17
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
18
|
18
53029-045 CARRIER-LUGGAGE |
53029-045 |
US $101.81 |
||
|
19
|
19
36014-035-21 CASE-CHAIN,BLACKCase-chain,black; |
36014-035-21 |
US $40.82 |
||
|
20
|
20
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
20
|
20
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
20
|
20
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
21
|
21
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
21
|
21
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
22
|
22
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
22
|
22
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
