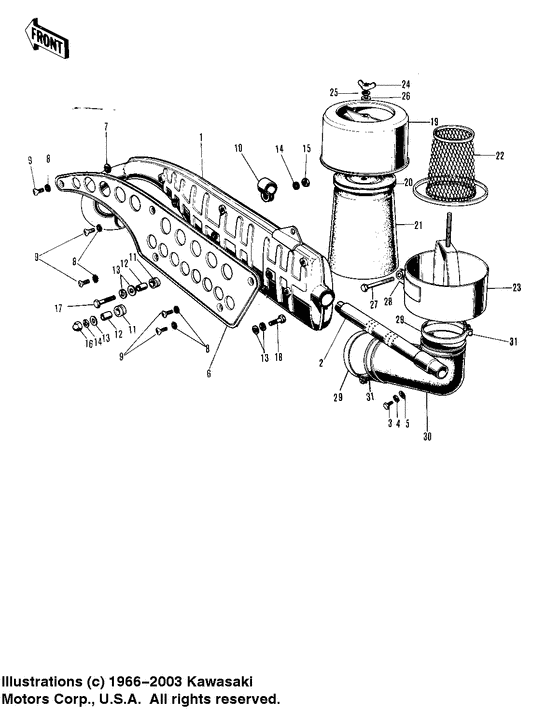

Air cleaner/muffler ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
18033-040
BAFFLE TUBE
|
18033-040 |
— | ||
|
3
|
3
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
3
|
3
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
4
|
4
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
4
|
4
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
5
|
5
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
6
|
6
18064-003-21 COVER-MUFFLER,BLACKCover-muffler,black; |
18064-003-21 |
US $40.05 |
||
|
7
|
7
18065-002
INSULATOR HEAT
|
18065-002 |
— | ||
|
8
|
8
463H0600 WASHER LOCK 6MM |
463H0600 |
US $0.45 |
||
|
9
|
9
220E0610
SCREW PAN HEAD 6X10
|
220E0610 |
— | ||
|
10
|
10
32069-039
BRACKET,UPPER MUFFLER
Bracket,upper muffler; |
32069-039 |
— | ||
|
11
|
11
18063005 DAMPER RUBBER-MUFFLER |
18063005 |
US $4.28 |
||
|
12
|
12
92027-102 COLLAR |
92027-102 |
from US $1.51 |
||
|
13
|
13
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
14
|
14
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
14
|
14
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
15
|
15
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
15
|
15
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
16
|
16
92020-007 NUT FUEL TANK FRONT |
92020-007 |
US $4.52 |
||
|
17
|
17
92001-1577 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92001-1577 |
US $3.96 |
||
|
18
|
18
114G0828
BOLT HEX HEAD 8X28
Bolt hex head 8x28; |
114G0828 |
— | ||
|
19
|
19
11012-016 CAP-AIR CLEANER |
11012-016 |
US $25.58 |
||
|
1
|
1
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
2
|
2
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
3
|
3
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
4
|
4
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
5
|
5
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
20
|
20
11013-024 ELEMENT,AIR CLNR,TOPElement,air clnr,top; |
11013-024 |
US $2.70 |
||
|
21
|
21
11013-023
ELEMENT,AIR CLNR,MAIN
Element,air clnr,main; |
11013-023 |
— | ||
|
22
|
22
11014-003
WIRE NET-AIR CLEANER
|
11014-003 |
— | ||
|
23
|
23
11011-011
BODY-AIR CLEANER
|
11011-011 |
— | ||
|
24
|
24
92015-030
NUT-WING,6MM
Nut-wing,6mm; |
92015-030 |
— | ||
|
25
|
25
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
25
|
25
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
26
|
26
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
26
|
26
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
27
|
27
92001-1456 BOLT,EXCLUSIVEBolt,exclusive; |
92001-1456 |
from US $2.95 |
||
|
28
|
28
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
28
|
28
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
29
|
29
92037-129
CLAMP,AIR CLEANER
Clamp,air cleaner; |
92037-129 |
— | ||
|
30
|
30
11026-002 CONNECTOR |
11026-002 |
US $7.20 |
||
|
31
|
31
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
31
|
31
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
19
|
19
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
20
|
20
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
21
|
21
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
22
|
22
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
23
|
23
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
24
|
24
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
25
|
25
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
|
26
|
26
11010-042
AIR CLEANER ASSY
|
11010-042 |
— | ||
