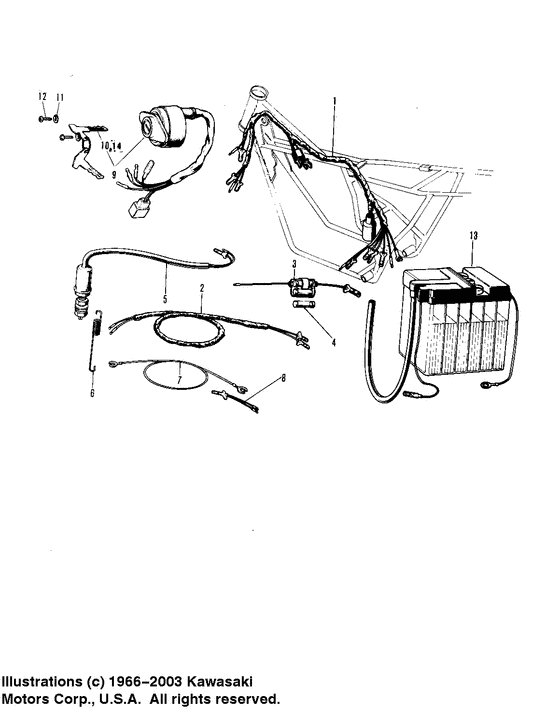

Chassis electrical equipment Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26001-055
WIRING HARNESS-MAIN
|
26001-055 |
— | ||
|
2
|
2
26002-027
WIRING HARNWSS REAR
|
26002-027 |
— | ||
|
3
|
3
26004-026
FUSE ASSY
|
26004-026 |
— | ||
|
4
|
4
26006-001
FUSE 10A
|
26006-001 |
— | ||
|
5
|
5
27010-018 Superceded |
27010-018 |
US $19.30 |
||
| replacements | |||||
|
5
|
5
27010-1482 SWITCH,REAR BRAKE |
27010-1482 |
from US $27.33 |
||
|
5
|
5
27010-015
SWITCH,REAR BRAKE
|
27010-015 |
— | ||
|
6
|
6
27011004 SPRING,BRAKE LAMP SWISpring brake lamp sw; |
27011004 |
from US $3.71 |
||
| replacement | |||||
|
6
|
6
92145-0683 SPRING,BRAKE LAMP SWISpring brake lamp sw; |
92145-0683 |
from US $1.90 |
||
|
7
|
7
26011-025
WIRE GROUND
|
26011-025 |
— | ||
|
8
|
8
26011-042
LEAD WIRE
|
26011-042 |
— | ||
|
9
|
9
27005-1016
SWITCH ASSY,IGNITION
Switch assy,ignition; |
27005-1016 |
— | ||
|
10
|
10
27008-034-21 KEY SET NO.321 |
27008-034-21 |
US $7.07 |
||
|
11
|
11
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
11
|
11
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
12
|
12
220B0512
SCREW-PAN-CROS
Screw pan head 5x12; |
220B0512 |
— | ||
| replacement | |||||
|
12
|
12
220AA0512 SCREW-PAN-CROSScrew pan head 5x12; |
220AA0512 |
from US $0.78 |
||
|
13
|
13
26012-021 YUA BAT 6N2-2A-3 |
26012-021 |
US $9.34 |
||
|
14
|
14
27008-1016 KEY,BLANKKey,blank; |
27008-1016 |
US $9.56 |
||
