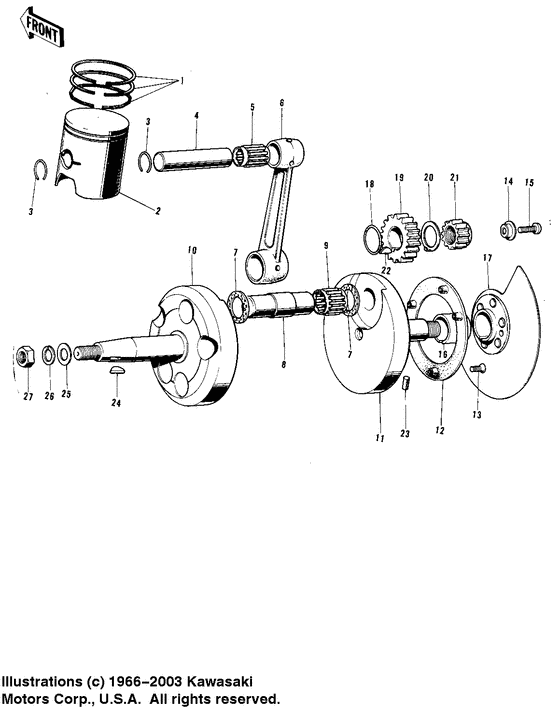

Crankshaft/piston/rotary valve (F8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13008-026 RING SET,STDRing set,std; |
13008-026 |
US $102.04 |
||
|
2
|
2
13001-041 PISTON,STDPiston,std; |
13001-041 |
US $131.62 |
||
|
3
|
3
92036-015 CIRCLIP-PISTON PINCirclip-piston pin; |
92036-015 |
from US $3.33 |
||
|
4
|
4
13002017 PIN-PISTON |
13002017 |
US $21.39 |
||
|
5
|
5
13033-1010 BEARING-SMALL ENDBearing-small end; Kbk182223.8x |
13033-1010 |
from US $21.23 |
||
|
7
|
7
92026-069 WASHER-CONROD SIDE |
92026-069 |
US $15.16 |
||
|
8
|
8
13035-026 CRANK PIN |
13035-026 |
US $72.70 |
||
|
9
|
9
13034-032
NEEDLE BRG-BIG END
Pk293817.8x |
13034-032 |
— | ||
|
10
|
10
13037-045
CRANKSHAFT,L.H
Crankshaft,l.h; |
13037-045 |
— | ||
| replacement | |||||
|
10
|
10
13036-036
CRANK&CONROD ASSY
Crankshaft,l.h; |
13036-036 |
— | ||
|
11
|
11
13038-045 CRANKSHAFT,R.HCrankshaft,r.h; |
13038-045 |
US $172.91 |
||
| replacement | |||||
|
11
|
11
13036-036
CRANK&CONROD ASSY
Crankshaft,r.h; |
13036-036 |
— | ||
|
12
|
12
13045-006
HOLDER-CRANKSHAFT OIL
|
13045-006 |
— | ||
|
13
|
13
92012-002 SCREW OVL CNTSNK 5X10 |
92012-002 |
US $2.09 |
||
|
14
|
14
92026-071 SPACER-R.H CRANKSHAFT |
92026-071 |
US $4.43 |
||
|
15
|
15
92011-025 SCREW-PAN HEAD,6X20Screw-pan head,6x20; |
92011-025 |
US $2.75 |
||
|
16
|
16
92027-097 CALLAR-CRANKSHAFT |
92027-097 |
US $18.72 |
||
|
17
|
17
12001-020 VALVE-ROTARY DISC |
12001-020 |
US $242.06 |
||
|
18
|
18
670B3022
0 RING,22MM
"0" ring,22mm; |
670B3022 |
— | ||
|
19
|
19
13121-028 PINION,PRIMARY 24TPinion,primary 24t; 24t |
13121-028 |
US $101.81 |
||
|
20
|
20
92024-029 WASHER-LOCK,18MMWasher-lock,18mm; |
92024-029 |
US $0.90 |
||
|
21
|
21
16084-011 PINION-OIL PUMP15t |
16084-011 |
US $85.21 |
||
|
22
|
22
510A5100 WOODRUFF KEYWoodruff key; |
510A5100 |
from US $3.40 |
||
|
23
|
23
610A0412 PIN DOWEL 4X12Pin dowel 4x12; |
610A0412 |
from US $7.04 |
||
|
24
|
24
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
25
|
25
92022-172 WASHER-PLAIN,14MMWasher-plain,14mm; |
92022-172 |
US $8.21 |
||
|
26
|
26
461F1400 WASHER SPRING 14MM |
461F1400 |
US $0.60 |
||
|
27
|
27
92015-043 NUT 14MM |
92015-043 |
US $4.88 |
||
