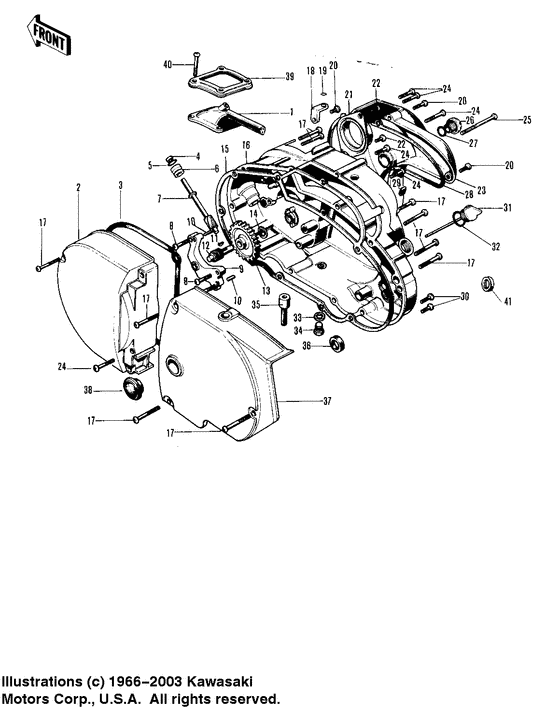

Engine covers ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14038-034
CAP,CARBURETOR
Cap,carburetor; |
14038-034 |
— | ||
|
2
|
2
14031-038-80
COVER,L.H ENGINE,BUFF
Cover,l.h engine,buff; |
14031-038-80 |
— | ||
|
3
|
3
14045-008
GASKET-L.H ENG COVER
|
14045-008 |
— | ||
|
4
|
4
92054-004 OIL SEAL |
92054-004 |
from US $9.17 |
||
|
5
|
5
92055-025 0 RING"0" ring; |
92055-025 |
from US $2.85 |
||
|
6
|
6
92028-075
BUSH
|
92028-075 |
— | ||
|
7
|
7
13223-004
GEAR-TACHOMETER
|
13223-004 |
— | ||
|
8
|
8
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
8
|
8
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
9
|
9
14018-004 HOLDER-TACHOMETER GR |
14018-004 |
US $21.62 |
||
|
10
|
10
610A0512 PIN DOWEL 5X12Pin dowel 5x12; |
610A0512 |
from US $0.94 |
||
|
11
|
11
510A3100 WOODRUFF KEYWoodruff key; |
510A3100 |
from US $3.40 |
||
|
12
|
12
13224-006 PINION-TACHOMETER |
13224-006 |
US $44.50 |
||
|
13
|
13
16085-014 GEAR-OIL PUMP33t |
16085-014 |
US $17.89 |
||
|
14
|
14
92026-025
WASHER THRUST
|
92026-025 |
— | ||
|
15
|
15
14046-020 GASKET-R.H-ENG.CVR |
14046-020 |
US $13.09 |
||
|
16
|
16
14032-065
COVER-R.H ENGINE
|
14032-065 |
— | ||
|
17
|
17
220B0655
SCREW-PAN HEAD,6X55
|
220B0655 |
— | ||
| replacement | |||||
|
17
|
17
220AA0655 SCREW-PAN HEAD,6X55 |
220AA0655 |
from US $1.43 |
||
|
18
|
18
14044-005 HOLDER-OIL PUMP CABLE |
14044-005 |
US $4.09 |
||
|
19
|
19
92036-017
CIRCLIP
|
92036-017 |
— | ||
|
20
|
20
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
20
|
20
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
21
|
21
16065-005 HOLDER-CARBURETOR |
16065-005 |
US $53.64 |
||
|
22
|
22
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
22
|
22
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
22
|
22
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
23
|
23
14030-027
COVER-CARBURETOR
|
14030-027 |
— | ||
|
24
|
24
220B0635
SCREW-PAN-CROSS,6X35
Screw pan head 6x35; |
220B0635 |
— | ||
| replacement | |||||
|
24
|
24
220AA0635 SCREW-PAN-CROSS,6X35Screw pan head 6x35; |
220AA0635 |
from US $0.63 |
||
|
25
|
25
220B0670
SCREW-PAN HEAD,6X70
Screw pan head 6x70; |
220B0670 |
— | ||
| replacement | |||||
|
25
|
25
220AA0670 SCREW-PAN HEAD,6X70Screw pan head 6x70; |
220AA0670 |
from US $1.24 |
||
|
26
|
26
92067-006 PLUG-CARBURETOR COVER |
92067-006 |
US $72.48 |
||
| replacement | |||||
|
26
|
26
92067-022
PLUG,CARBURETOR COVER
|
92067-022 |
— | ||
|
27
|
27
670B2020 0 RING,20MM"0" ring,20mm; |
670B2020 |
from US $1.68 |
||
|
28
|
28
14048-002 GASKET,CARBURETOR CVR |
14048-002 |
US $31.90 |
||
| replacement | |||||
|
28
|
28
11060-1477
GASKET,CARBURETOR CVR
|
11060-1477 |
— | ||
|
29
|
29
14064-001 STOPPER-CARBURETOR |
14064-001 |
US $1.17 |
||
|
30
|
30
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
30
|
30
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
31
|
31
16115-017
PLUG-OIL FILLER
|
16115-017 |
— | ||
|
32
|
32
670B2020 0 RING,20MM"0" ring,20mm; |
670B2020 |
from US $1.68 |
||
|
33
|
33
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
34
|
34
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
35
|
35
16116-001 PIPE FUEL OVERFLOW |
16116-001 |
from US $5.47 |
||
|
36
|
36
92049-012 OIL SEAL SB20285Oil seal sb20285; |
92049-012 |
from US $10.67 |
||
|
37
|
37
14026-005-E8 COVER,CHAIN-CASECover,chain-case; |
14026-005-E8 |
US $82.66 |
||
|
38
|
38
14040-003 CAP-CLUTCH HOLE |
14040-003 |
US $4.03 |
||
|
39
|
39
14065-001 HOLDER-CARBURETOR CAP |
14065-001 |
US $7.20 |
||
|
40
|
40
220B0512
SCREW-PAN-CROS
Screw pan head 5x12; |
220B0512 |
— | ||
| replacement | |||||
|
40
|
40
220AA0512 SCREW-PAN-CROSScrew pan head 5x12; |
220AA0512 |
from US $0.78 |
||
|
41
|
41
92049-004 OIL SEAL SB12205Oil seal sb 12205; |
92049-004 |
from US $5.28 |
||
