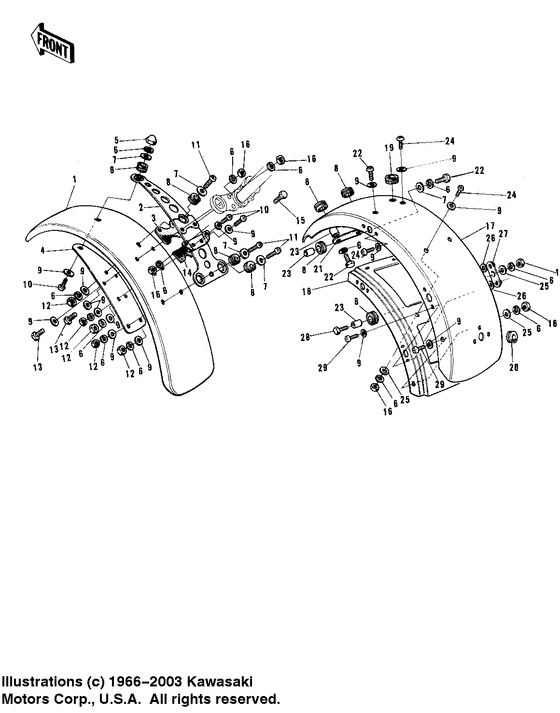

Fenders (F8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35004-048-72
FENDER-FR,B.ORANGE
Fender-fr,b.orange; |
35004-048-72 |
— | ||
|
2
|
2
35012-011
BRACKET-FRONT FENDER
|
35012-011 |
— | ||
|
3
|
3
35007-002
DAMPER RUBBER-F.FENDR
|
35007-002 |
— | ||
|
4
|
4
35013-009
PLATE-FRNT FENDER FIT
E/no. 11287 |
35013-009 |
— | ||
|
5
|
5
92015-009
NUT,6MM
Nut,6mm; |
92015-009 |
— | ||
|
6
|
6
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
6
|
6
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
7
|
7
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; O.d=20 |
92022-125 |
— | ||
| replacement | |||||
|
7
|
7
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; O.d=20 |
92200-0283 |
from US $0.72 |
||
|
8
|
8
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
9
|
9
92022-024 WASHER,7X16X1.2Washer plain; O.d=16 |
92022-024 |
from US $2.53 |
||
|
10
|
10
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
10
|
10
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
11
|
11
220E0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220E0620 |
US $2.43 |
||
|
12
|
12
312B0600 NUT-HEXNut 6mm; |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
12
|
12
312AA0600 NUT-HEXNut 6mm; |
312AA0600 |
from US $0.94 |
||
|
13
|
13
92003-063 BOLT-HEX HEAD,6X42Bolt-hex head,6x42; |
92003-063 |
US $1.37 |
||
|
14
|
14
35007-003
DAMPER RUBBER-FR FNDR
E/no. 11287 |
35007-003 |
— | ||
|
15
|
15
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
15
|
15
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
16
|
16
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
16
|
16
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
17
|
17
35022-046-72 FENDER-RR,B.ORANGEFender-rr,b.orange; |
35022-046-72 |
US $164.61 |
||
|
18
|
18
35034-010 BRACE-REAR FENDER |
35034-010 |
US $19.84 |
||
|
19
|
19
92071-010
GROMMET HARNESS 10MM
|
92071-010 |
— | ||
|
20
|
20
92071-019 GROMMET HARNESS 10MMGrommet harness 10mm; |
92071-019 |
from US $2.69 |
||
|
21
|
21
35034-013
BRACE-RR FENDER,FRONT
Brace-rr fender,front; |
35034-013 |
— | ||
|
22
|
22
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
22
|
22
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
23
|
23
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
24
|
24
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
24
|
24
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
25
|
25
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; O.d=13 |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
25
|
25
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; O.d=13 |
411AA0600 |
from US $2.13 |
||
|
26
|
26
92075-097
DAMPER RUBBER
|
92075-097 |
— | ||
|
27
|
27
92022-200 WASHER-PLAIN |
92022-200 |
US $3.91 |
||
|
28
|
28
110N0618 BOLT HEX HEAD 6X18 |
110N0618 |
US $29.30 |
||
|
29
|
29
220E0614
SCREW PAN HEAD 6X14
|
220E0614 |
— | ||
